1980 KZ250
SELECT A NEW VEHICLEFind diagram by part name or number

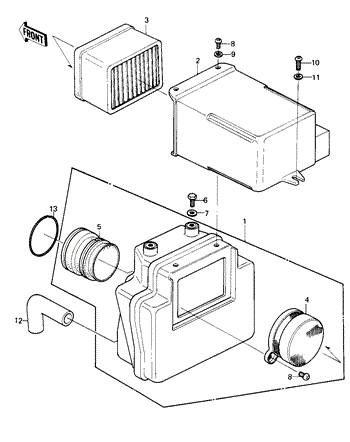

AIR CLEANER ('80 D1)

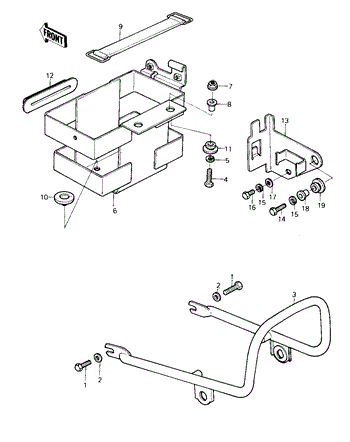

BATTERY CASE/ELECTRO BASKET ('80 D1)

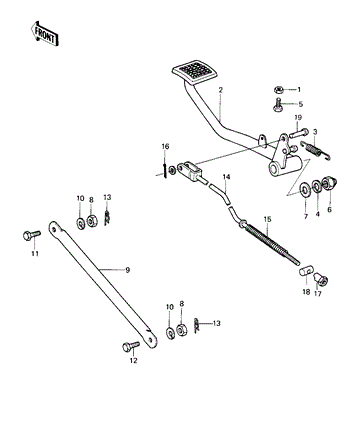

BRAKE PEDAL/TORQUE LINK ('80 D1)

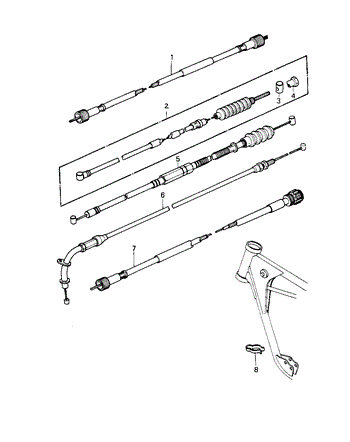

CABLES ('80 D1)

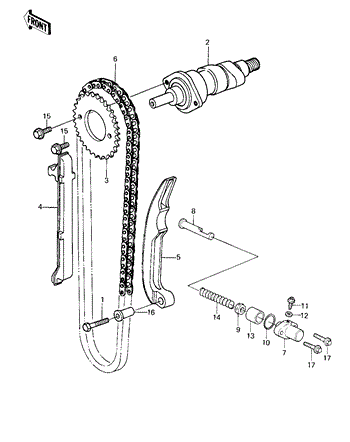

CAMSHAFT/CHAIN/TENSIONER ('80 D1)

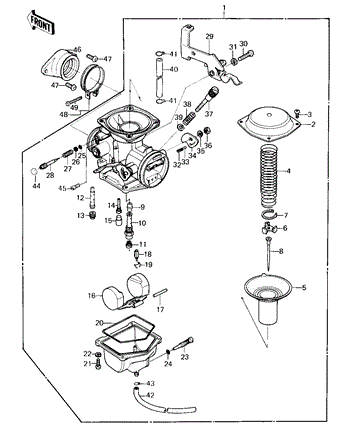

CARBURETOR ('80 D1)

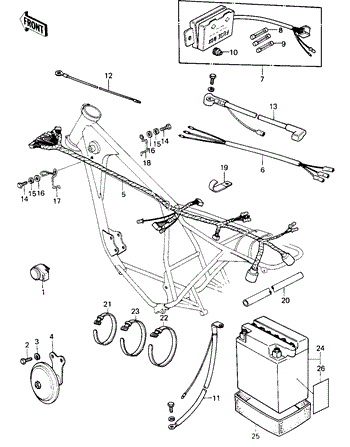

CHASSIS ELECTRICAL EQUIPMENT ('80 D1)

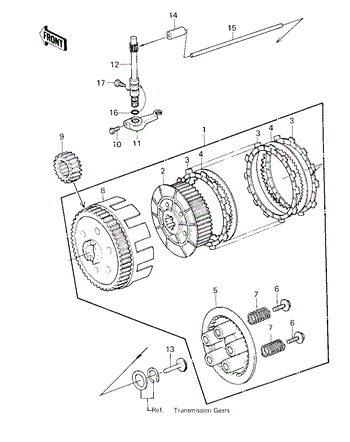

CLUTCH ('80 D1)

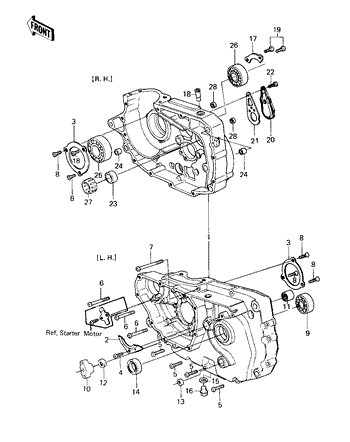

CRANKCASE ('80 D1)

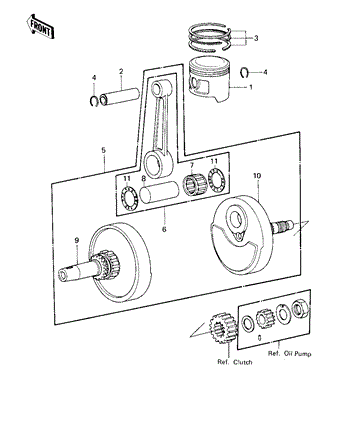

CRANKSHAFT/PISTON ('80 D1)

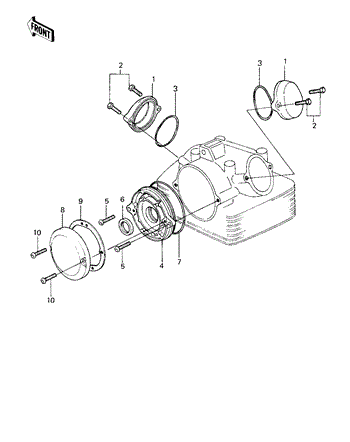

CYLINDER HEAD COVERS ('80 D1)

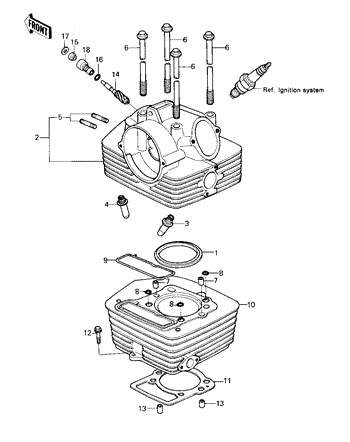

CYLINDER HEAD/CYLINDER ('80 D1)

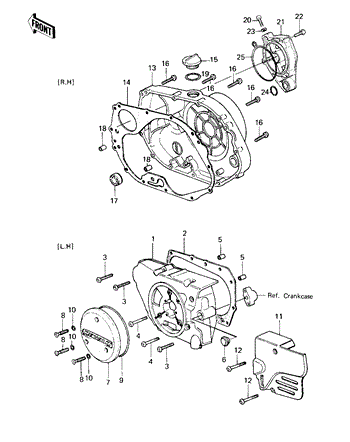

ENGINE COVERS ('80 D1)

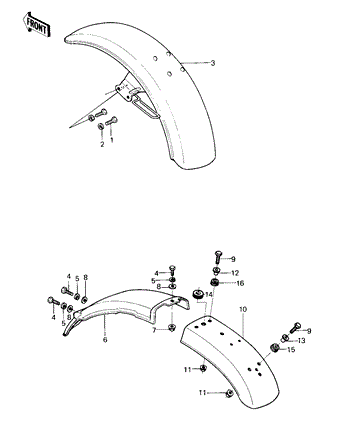

FENDERS ('80 D1)

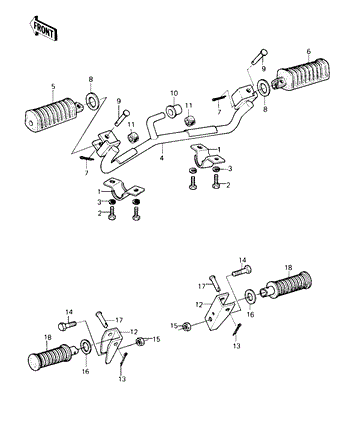

FOOTRESTS ('80 D1)

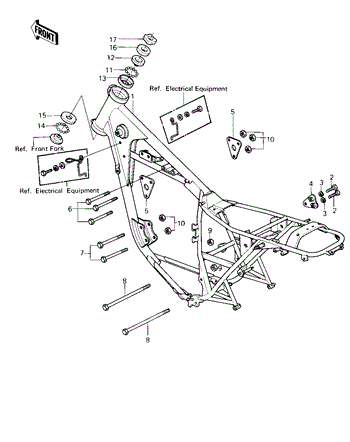

FRAME/FRAME FITTINGS ('80 D1)

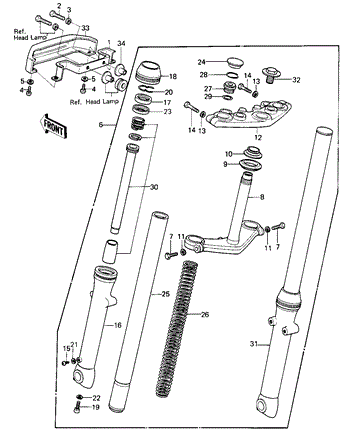

FRONT FORK ('80 D1)

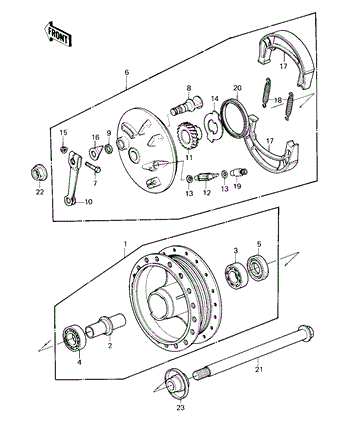

FRONT HUB/BRAKE ('80 D1)

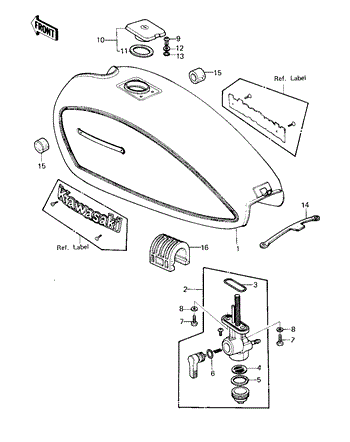

FUEL TANK ('80 D1)

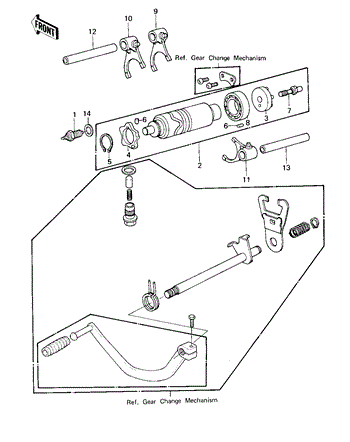

GEAR CHANGE DRUM & FORKS ('80 D1)

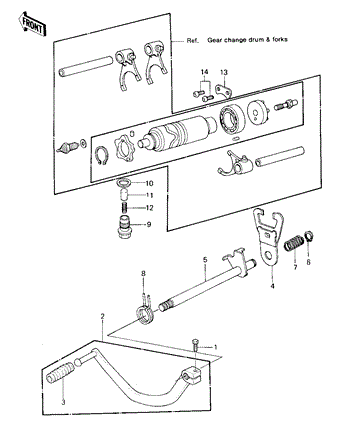

GEAR CHANGE MECHANISM ('80 D1)

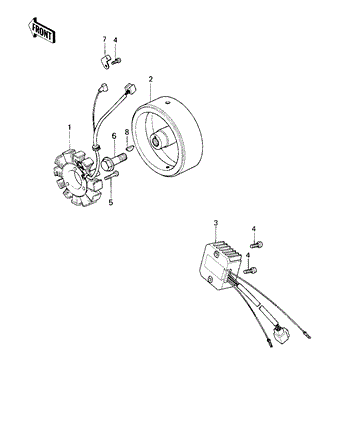

GENERATOR/REGULATOR ('80 D1)

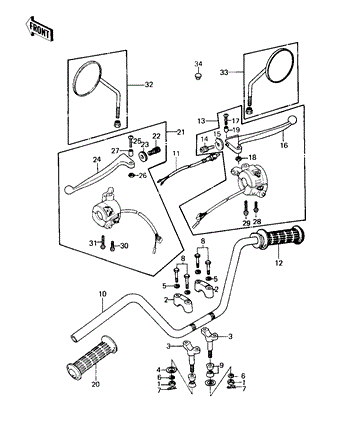

HANDLEBAR ('80 D1)

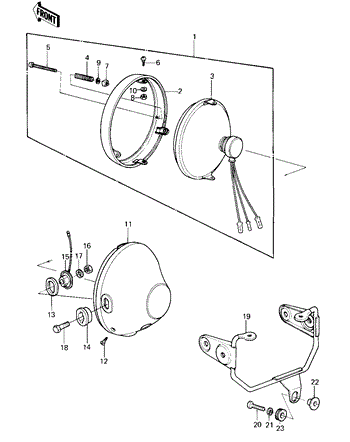

HEADLIGHT ('80 D1)

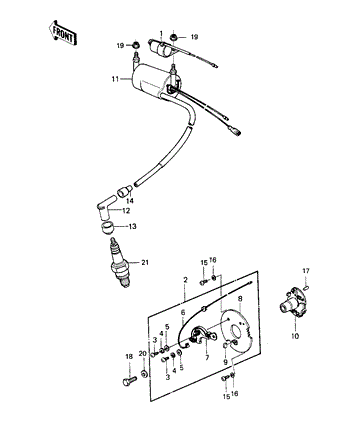

IGNITION ('80 D1)

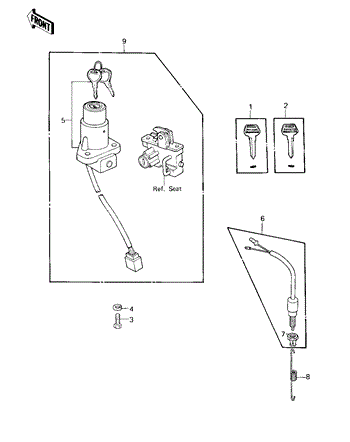

IGNITION SWITCH/LOCK ('80 D1)

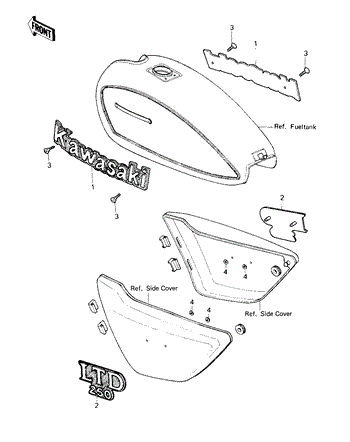

LABELS ('80 D1)

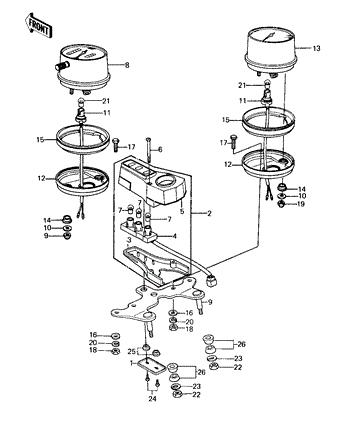

METERS ('80 D1)

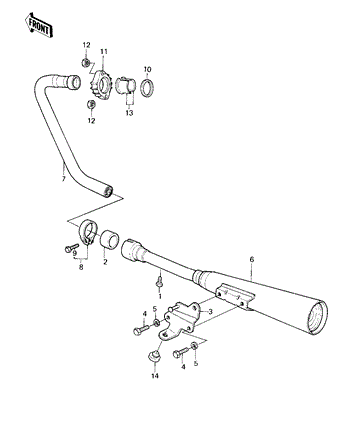

MUFFLER ('80 D1)

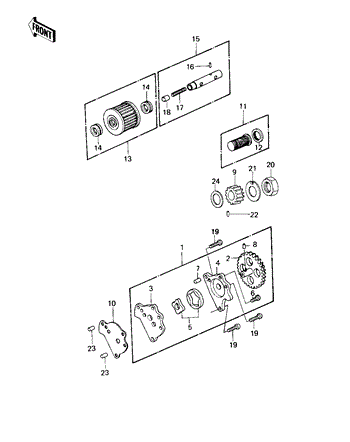

OIL PUMP/OIL FILTER ('80 D1)

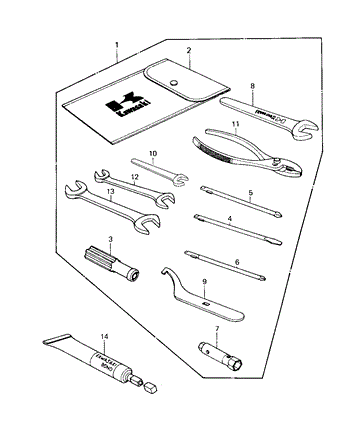

OWNER TOOLS ('80 D1)

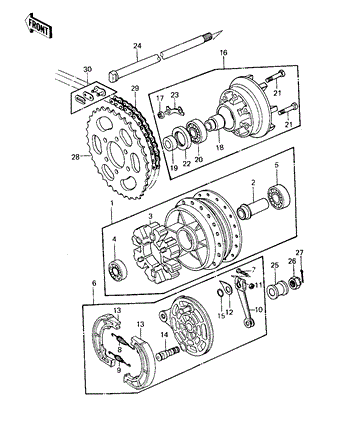

REAR HUB/BRAKE/CHAIN ('80 D1)

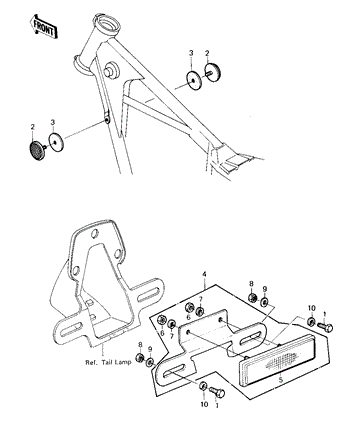

REFLECTORS ('80 D1)

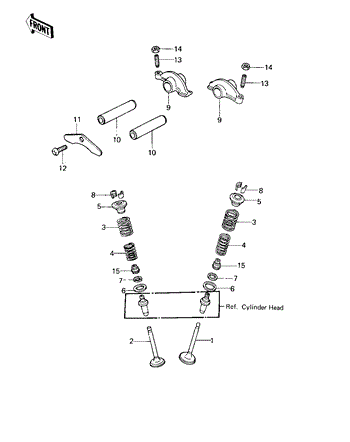

ROCKER ARMS/VALVES ('80 D1)

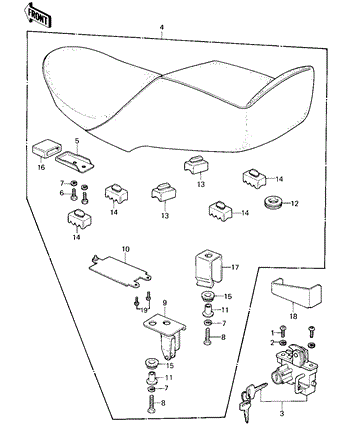

SEAT ('80 D1)

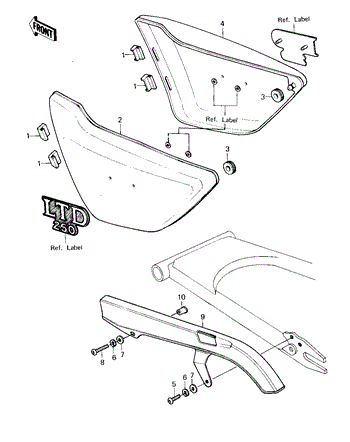

SIDE COVERS/CHAIN COVER ('80 D1)
SPECIAL SERVICE TOOLS ('80 D1)

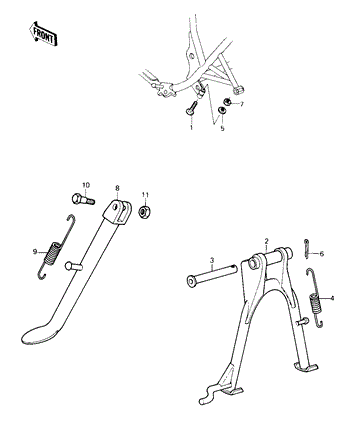

STANDS ('80 D1)

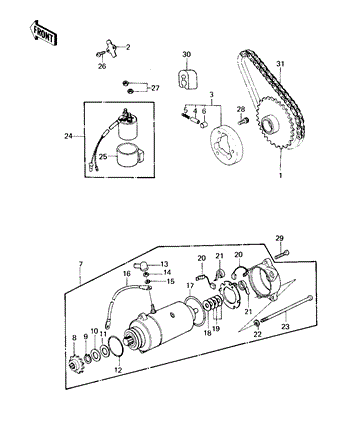

STARTER MOTOR/STARTER CLUTCH ('80 D1)

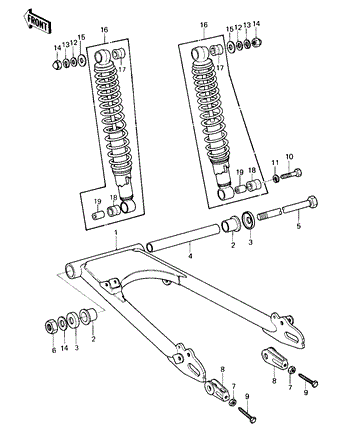

SWING ARM/SHOCK ABSORBERS ('80 D1)

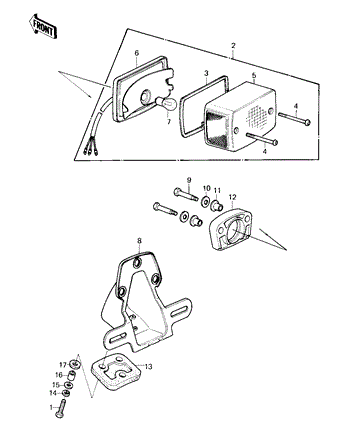

TAILLIGHT ('80 D1)

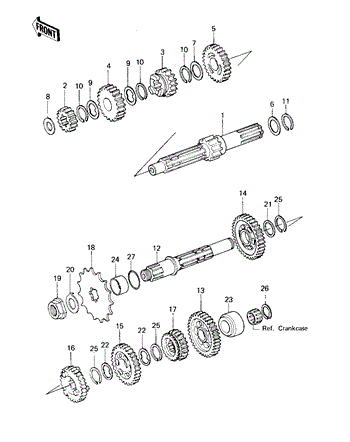

TRANSMISSION ('80 D1)

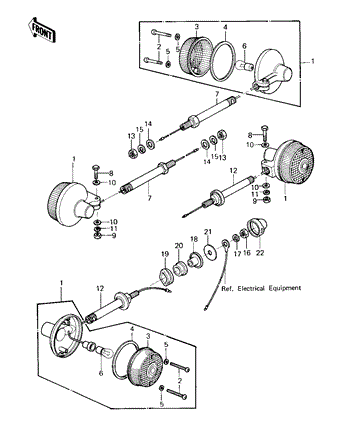

TURN SIGNALS ('80 D1)

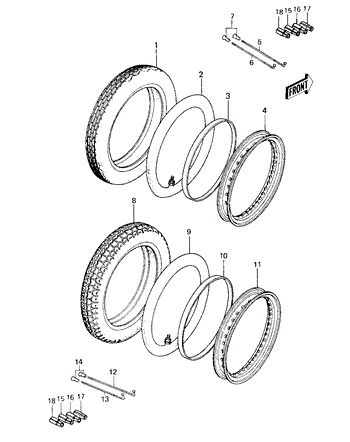

WHEELS/TIRES ('80 D1)
