BUILT BEYOND BELIEF
OVERVIEW |
The Ninja H2® ABS and Ninja H2® Carbon ABS motorcycles bring the mind-bending power of Kawasaki's supercharged hypersport racer to the street. Boasting a powerful 998cc inline 4-cylinder engine, state-of-the-art electronics, and the latest Brembo brakes, the Ninja H2 ABS and Ninja H2 Carbon ABS amount to pure performance on the road.
FEATURING:
- 998cc 4-CYLINDER SUPERCHARGED ENGINE
- Lightweight trellis frame
- Fully adjustable high-performance racing suspension
- STATE-OF-THE-ART ELECTRONICS
- Brembo Stylema® brake calipers
Ninja H2® ABS Shown.
MODELS |
ADDITIONAL VEHICLE FEATURES:
- Street legal hypersport performance
- Bosch IMU with Kawasaki's dynamic modeling software
- KYB AOS-II front fork and Öhlins TTX36 rear shock
- Kawasaki Quick Shifter (KQS)
- Kawasaki TRaction Control (KTRC–9 modes)
- Kawasaki Intelligent anti-lock Brake System (KIBS)
- Kawasaki Launch Control Mode (KLCM)
- Kawasaki Engine Brake Control (KEBC)
- All-LED lighting
- Bridgestone Battlax RS11 sport tires
- Smartphone connectivity via RIDEOLOGY THE APP MOTORCYCLE†
- All-Digital TFT color instrumentation
ADDITIONAL VEHICLE FEATURES:
- Carbon fiber upper cowl
- Silver-mirror paint (matte element)
TOP FEATURES |
SUPERCHARGED POWER
In-house Designed
Chosen for its high-rpm performance, the centrifugal-type supercharger is incredibly efficient at compressing air (at up to 2.4x atmospheric pressure) while minimizing heat. As a result of the supercharger’s efficiency, no large, heavy intercooler is required to cool the compressed air. The supercharger was designed to match the engine, allowing high-efficiency operation over a wider range of conditions that could not be provided by a typical supercharger.
SUPERCHARGED POWER
High-performance Component

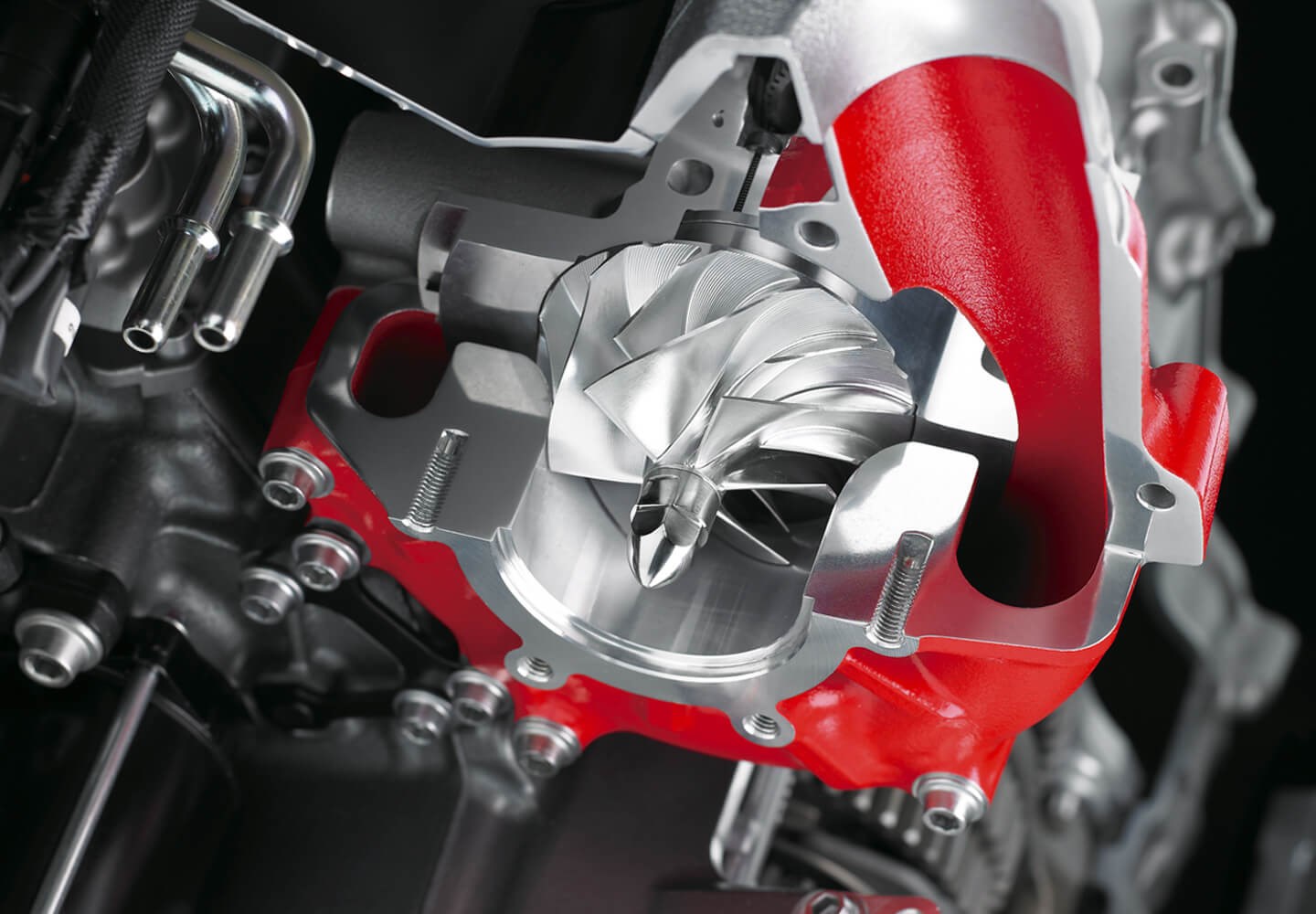

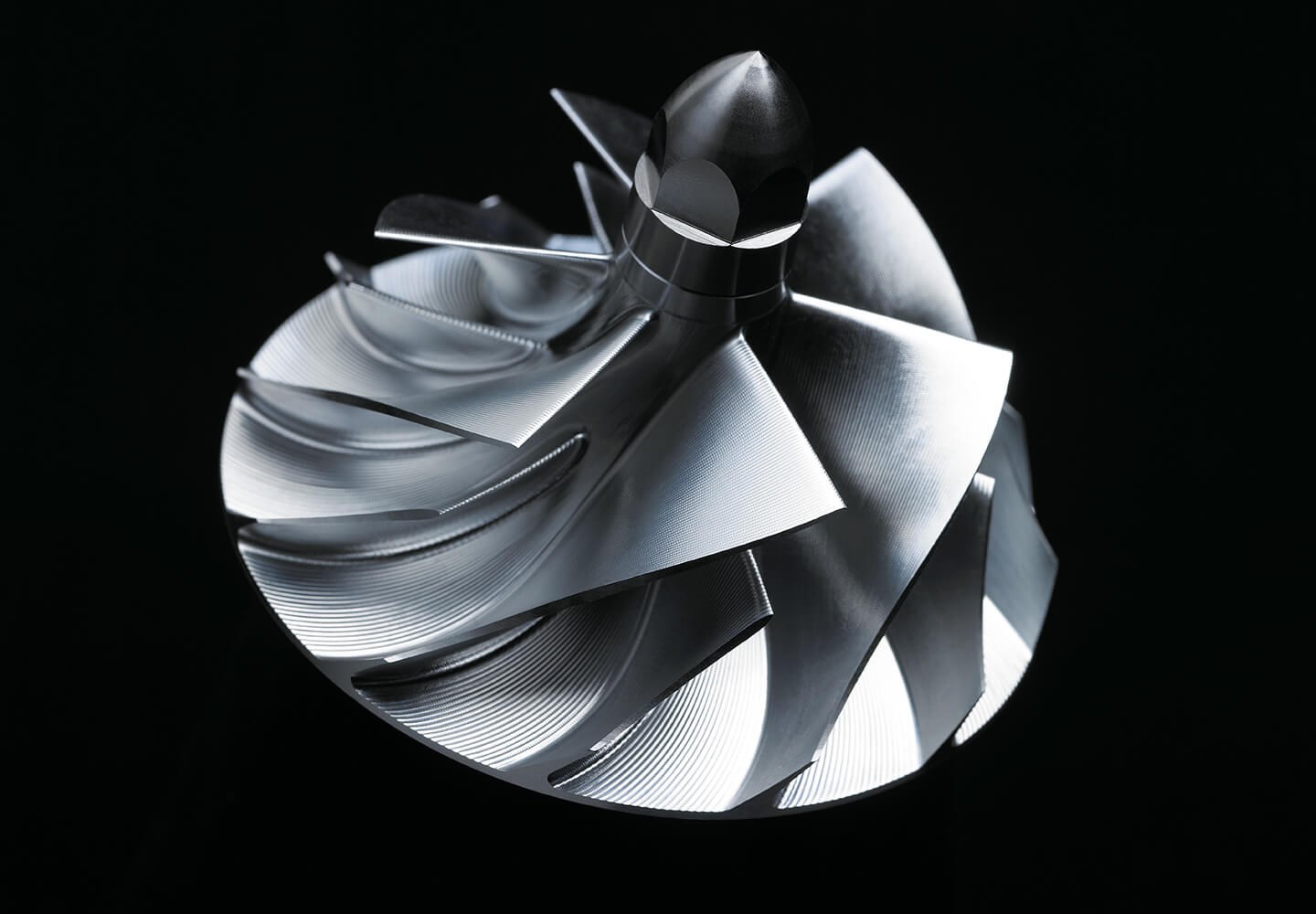

The complex shape of the impeller is 3D machined from forged aluminum for high precision and durability. The impeller spins at 9.2x speed of the crankshaft, reaching speeds of nearly 130,000 rpm, pumping a capacity of over 200 L of air per second into the engine.
SUPERCHARGED POWER
Compact & Efficient
Designed using technology from Kawasaki Heavy Industries., Ltd. (KHI) Aerospace Company, the planetary gear transfers power from the crankshaft to drive the impeller to incredibly high rpm.
SUPERCHARGED POWER
Unmatched Power

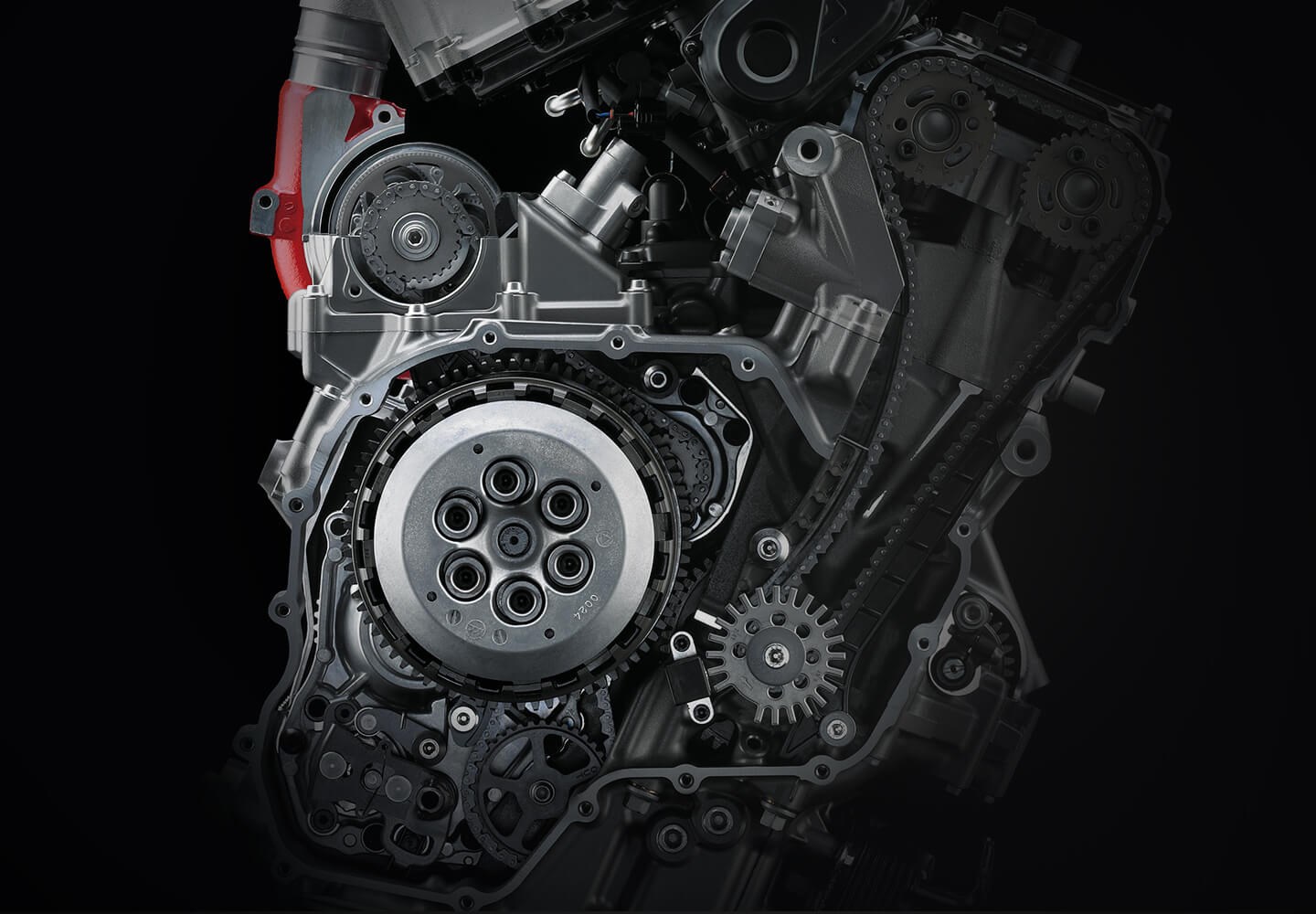

The balanced supercharged engine delivers both exhilarating acceleration and superb fuel efficiency. The key to achieving this balance was increasing the engine’s thermal efficiency by utilizing a high compression ratio. Designed for high-performance racing engines, the premium dog-ring transmission allows for smooth, precise, quick shifting. Rather than shifting gears into place, the gears in this configuration stay in place, with the lightweight dog rings moving to engage the gears. A high-quality hydraulic Assist & Slipper clutch minimizes wheel chatter caused by rapid downshifting and self-adjusts to ensure consistent performance and smooth actuation.
-
-
SUPERCHARGED POWER
UNPRECEDENTED POWER

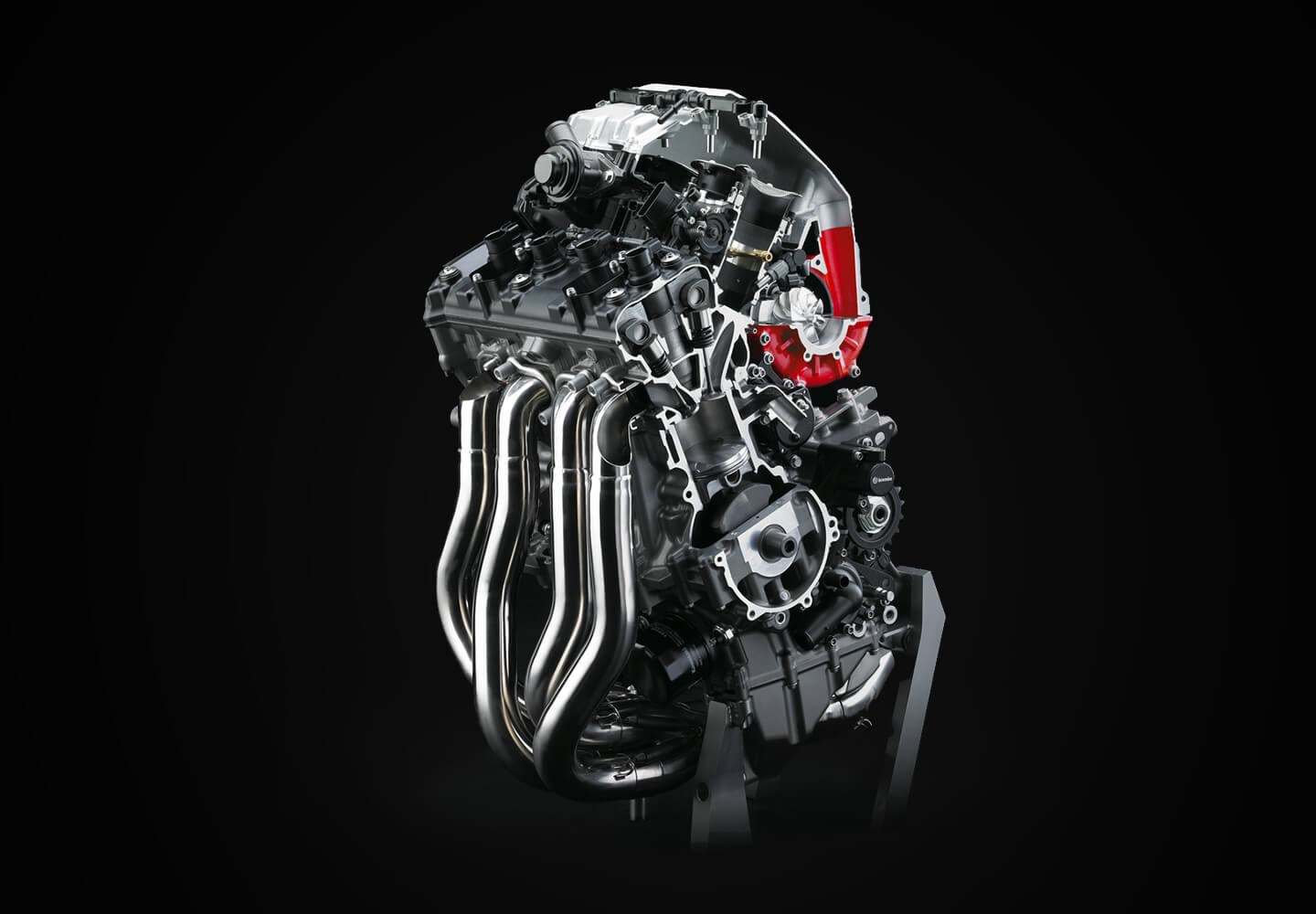

The Ninja H2® ABS streetbike's supercharged engine creates unprecedented power for remarkable acceleration. The heavy growl of the boosted liter-class engine is a sound the streets won't soon forget.
PERFORMANCE
Smooth & Precise

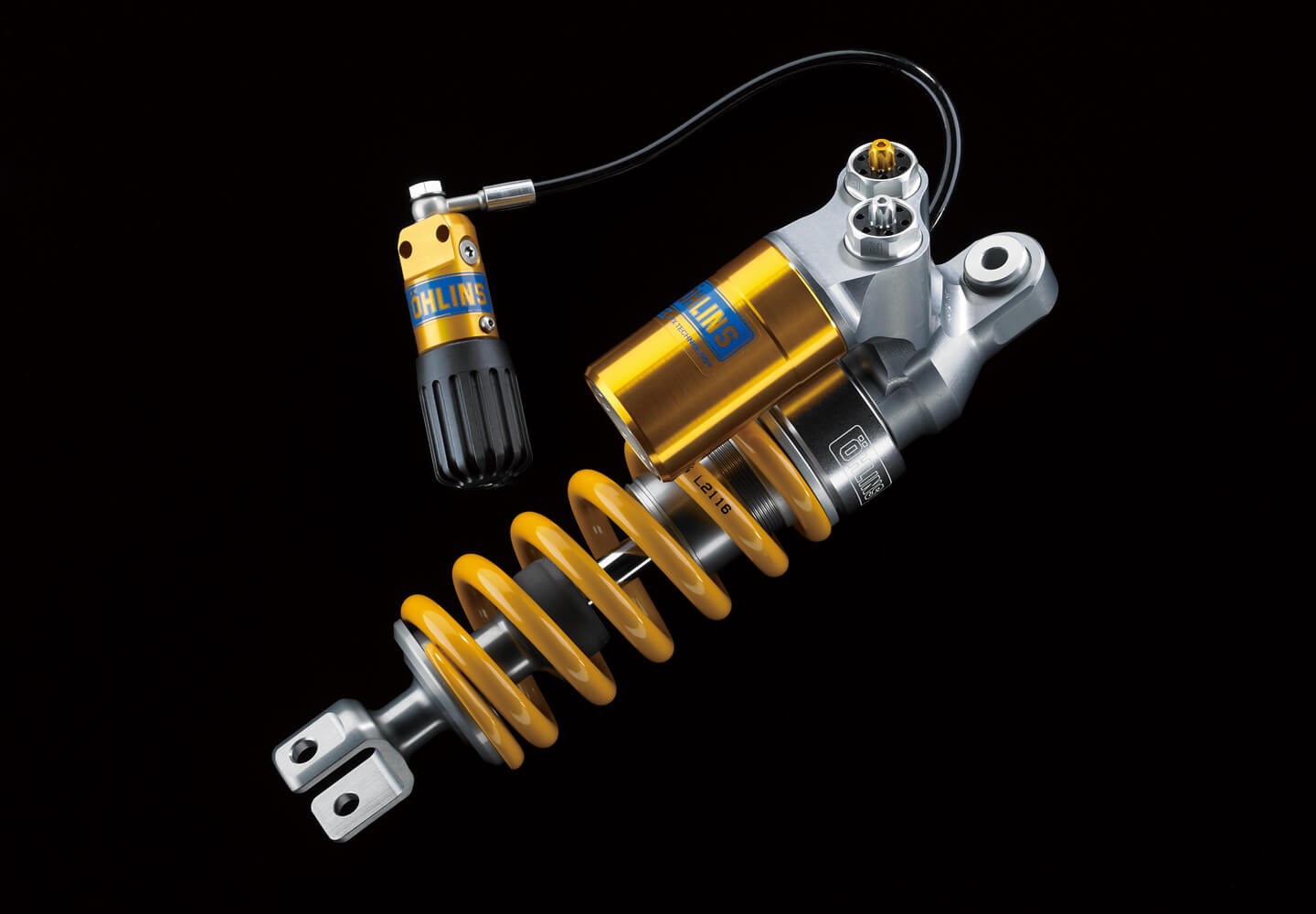

The Öhlins TTX36 rear shock offers precise damping for enhanced traction, comfort, and feedback to you. The KYB AOS-II (Air-Oil-Separate) low-friction cartridge fork offers superb action; initial stroke is smooth and compliant followed by progressive damping through the end of the stroke. The front fork is fully adjustable for compression and rebound damping, as well as preload.
PERFORMANCE
Innovative & Intelligent

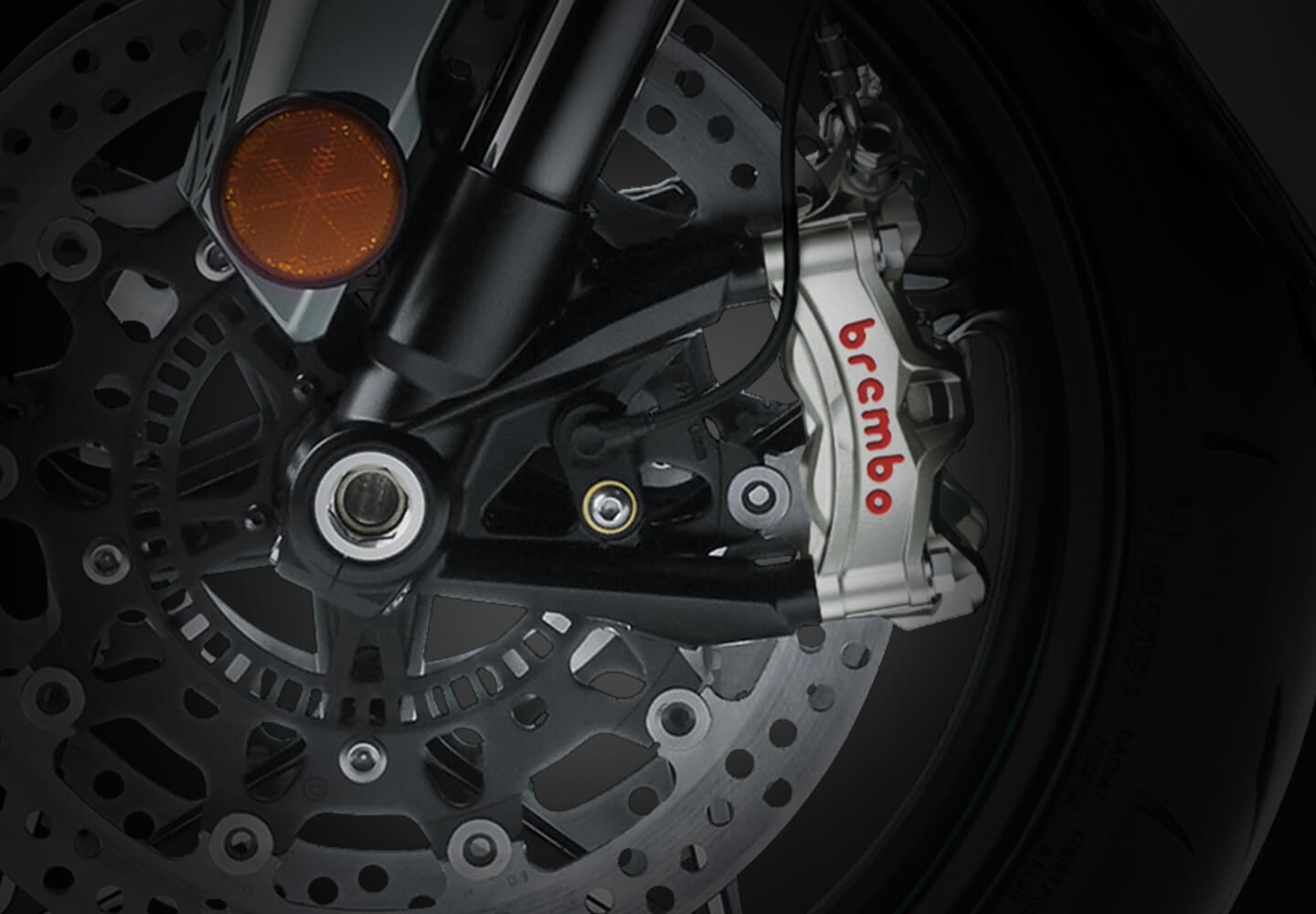

The Ninja H2® ABS hypersport utilizes Kawasaki Intelligent anti-lock Brake System (KIBS) technology and comes equipped with dual radial-mount opposed 4-piston Brembo Stylema® front calipers and semi-floating 330mm discs for aggressive braking. The Brembo clutch and front brake levers were designed to prevent wind force from engaging the levers while at higher speeds.
PERFORMANCE
Performance-inspired

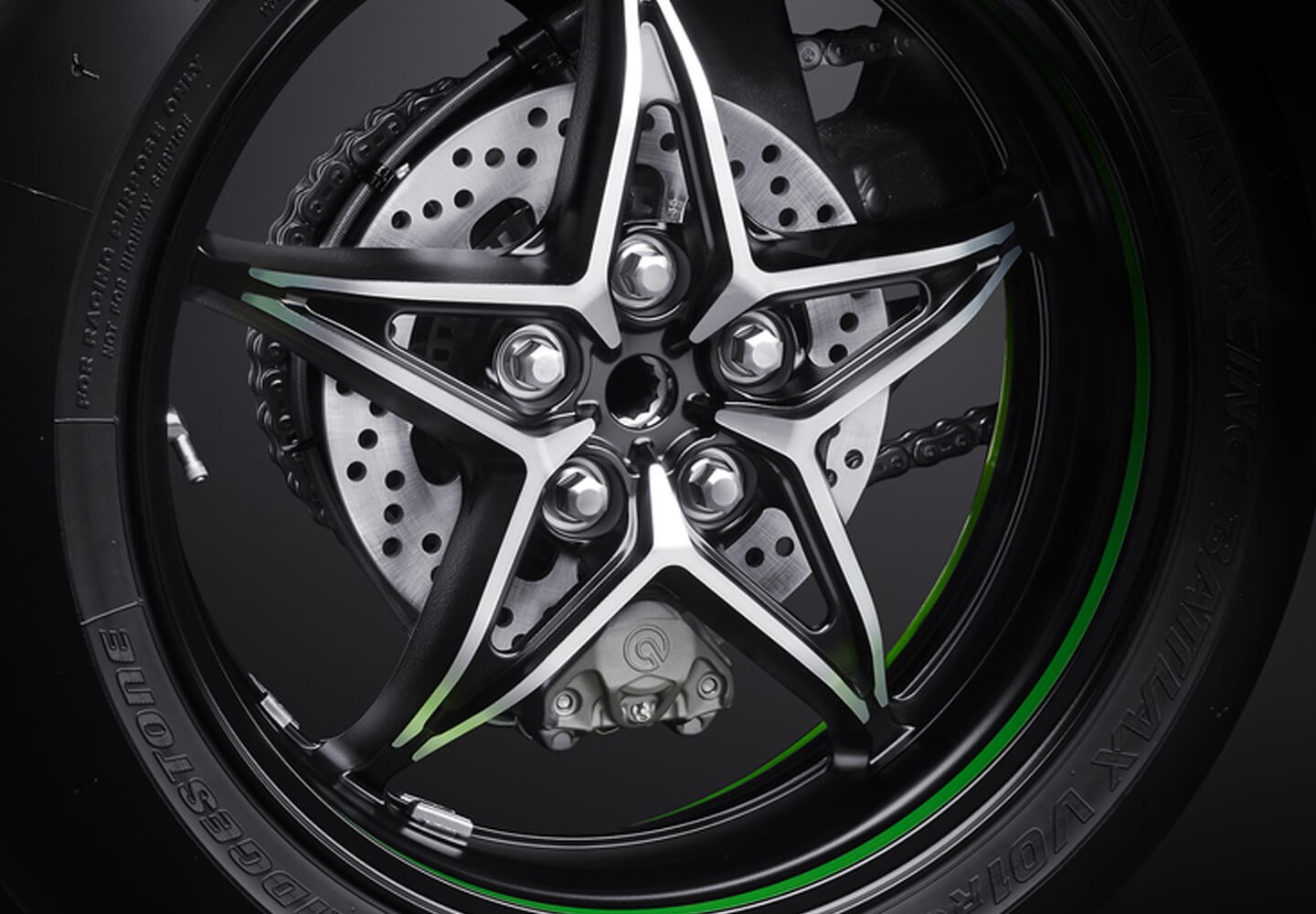

The lightweight cast aluminum wheels were designed specifically for the Ninja H2® ABS and were created using analysis from Kawasaki’s WorldSBK team. Star-pattern 5-spoke wheels offer optimum rigidity for high-power performance and feature pinstripes for a prestigious image. Bridgestone Battlax RS11 sport tires contribute to sharp handling.
-
-
PERFORMANCE
UNPARALLELED IN EVERY WAY
The massive power of the supercharged engine necessitates a multitude of high-performance components to ensure an unforgettably effortless, yet forceful experience.
ADVANCED ELECTRONICS
Predictive & Adaptive

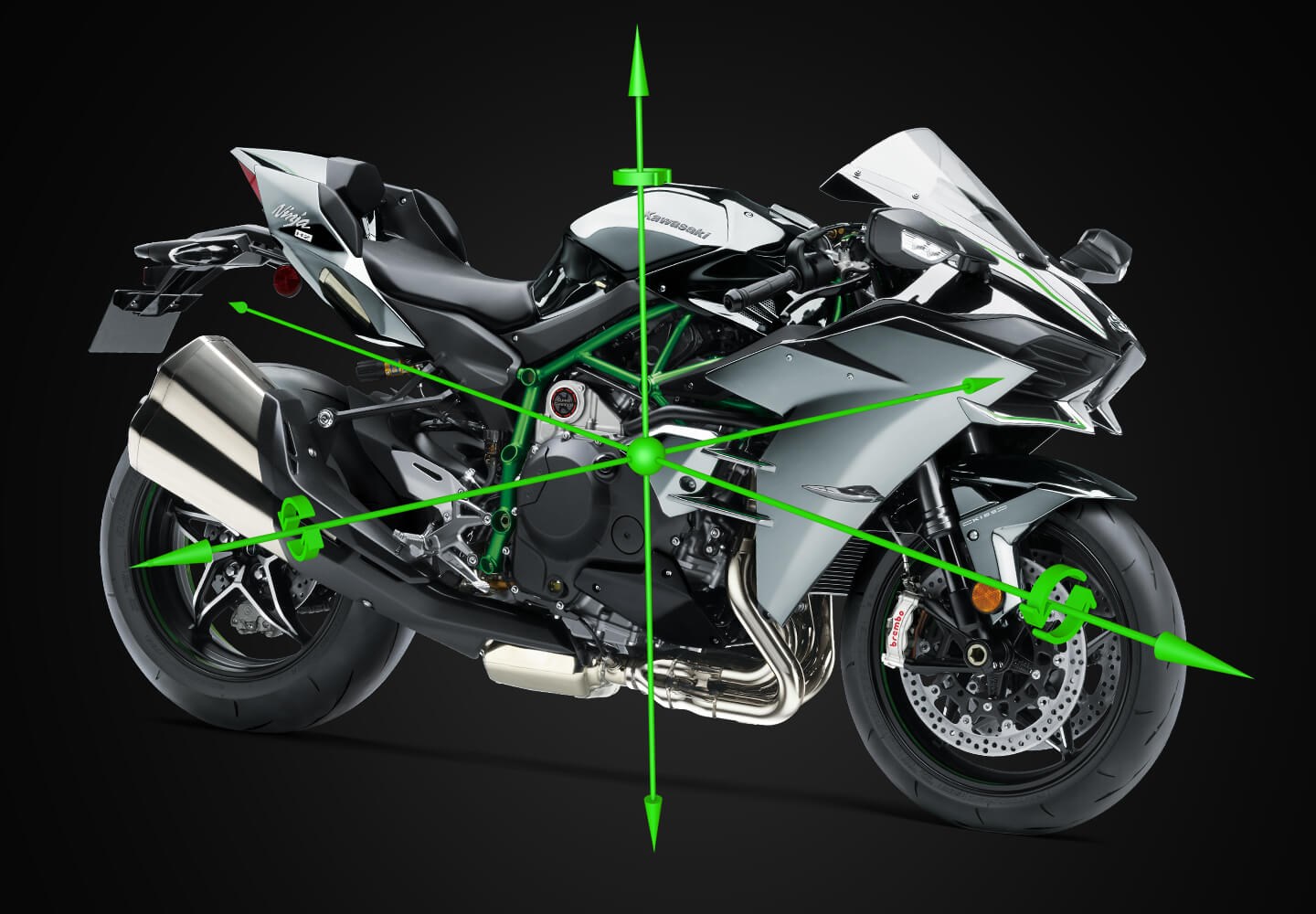

The Bosch Inertial Measurement Unit (IMU) enables inertia along 6 Degrees of Freedom to be monitored. This next-level system enables predictive and adaptive electronics for precise chassis orientation awareness.
ADVANCED ELECTRONICS
Kawasaki Engine Brake Control
This system allows you to set engine braking according to preference. When the system is activated, the engine braking effect is reduced, providing less interference when riding on the circuit.
ADVANCED ELECTRONICS
Kawasaki Quick Shifter

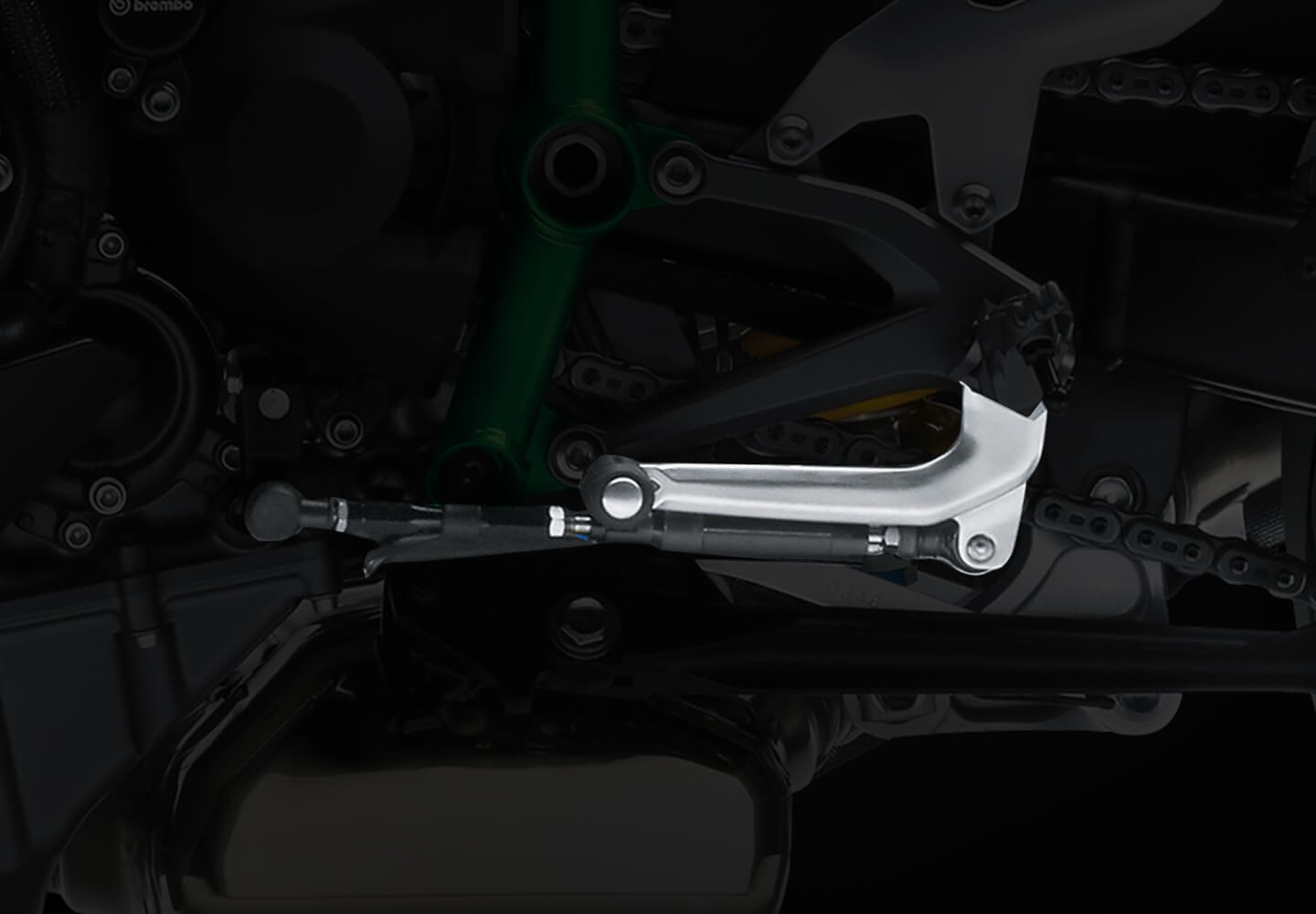

Complementing the engine’s strong power and the dog-ring transmission, a contactless-type quick shifter enables quick upshifts for seamless acceleration. The KQS enables clutchless downshifts for quick and smooth deceleration.
ADVANCED ELECTRONICS
TAKE CONTROL FROM YOUR PHONE

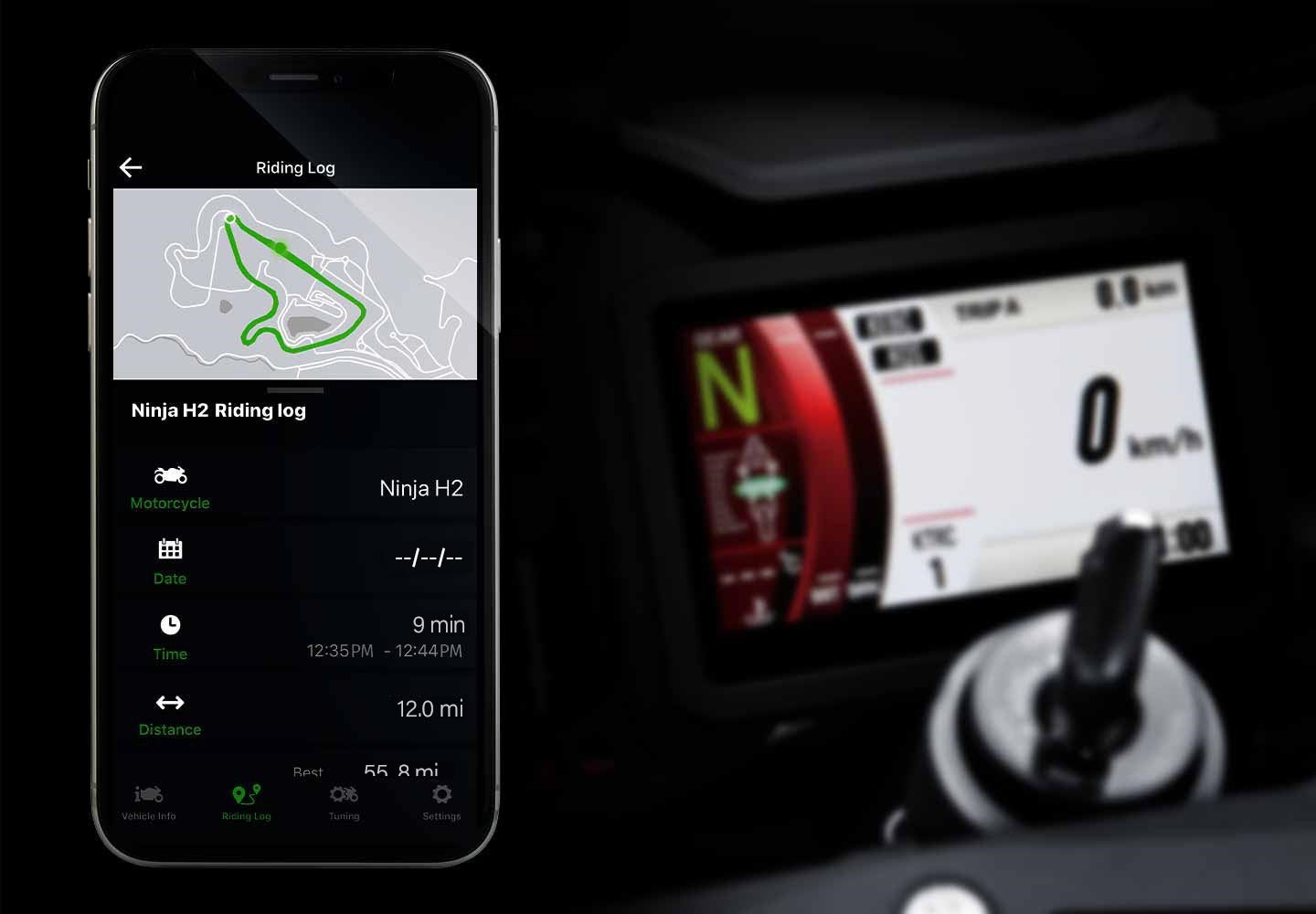

Smartphone connectivity via RIDEOLOGY THE APP MOTORCYCLE† connects you with your bike like never before, allowing you to view vehicle info, riding log, phone notifications, and general settings.
ADVANCED ELECTRONICS
Optimal Launch
The 3-mode Kawasaki Launch Control Mode (KLCM) provides unmatchable acceleration from a stop by electronically controlling engine output to minimize rear wheel-slip and front end lift. KLCM allows you to launch from a stop with the throttle held wide open.
-
-
ADVANCED ELECTRONICS
STATE-OF-THE-ART
Key enhancements bring Kawasaki Racing Team (KRT) WorldSBK championship-proven electronics management technology to the Ninja H2® ABS motorcycle. This results in precise chassis orientation awareness that assists the rider’s ability to adapt to a wide range of typical street riding conditions and scenarios.
STYLING
Intuitive & Innovative

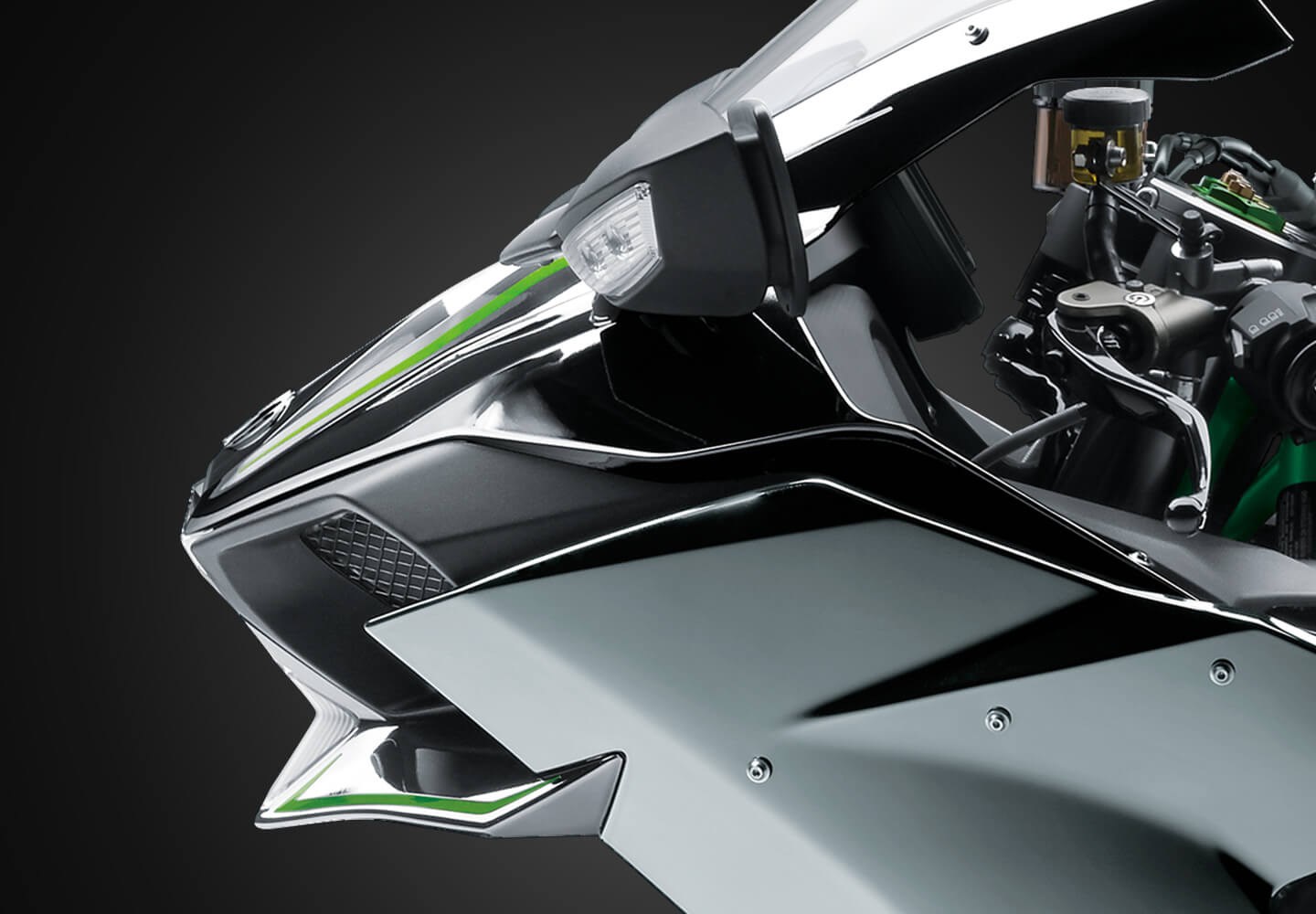

Designed by KHI Aerospace Company, the mirror stays feature airfoil cross-sections with Gurney flaps that contribute to downforce generation. A chin spoiler on the upper cowl is also function disguised in form, further contributing to downforce production.
STYLING
Strength & Flexibility
The trellis frame provides the strength to harness the incredible power of the supercharged engine and the balanced flex to achieve optimal rigidity and pliability for aggressive sport riding.
STYLING
Premium Quality

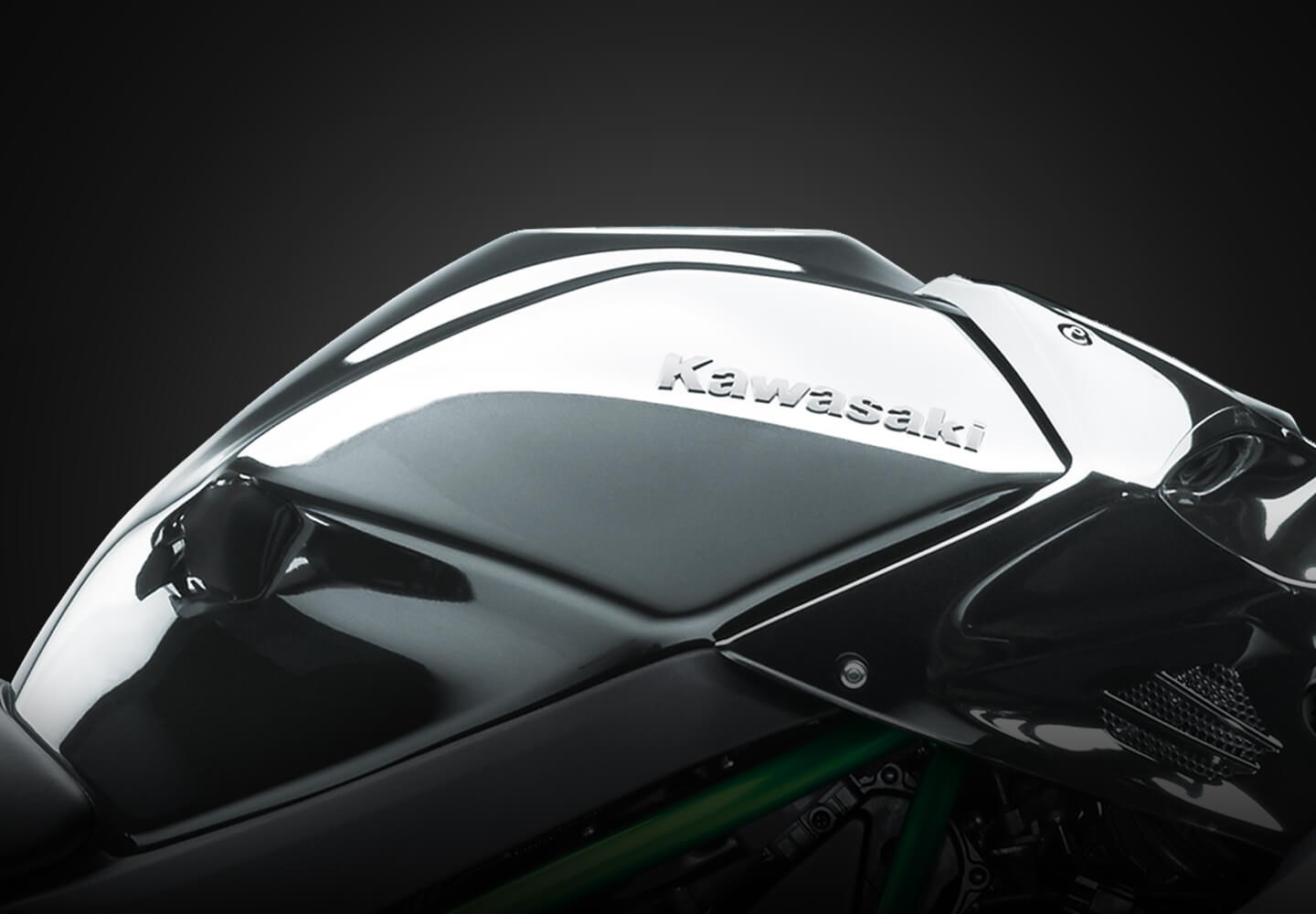

A special top coat on all non-carbon bodywork parts allows certain types of scratches to repair themselves, enabling the paint to maintain its high-quality finish through normal wear and tear*. Self-healing is achieved through microscopic soft and hard segments within the top coat, working like a chemical spring that creates a trampoline effect to absorb impacts.
STYLING
USEFUL INFORMATION AT A GLANCE

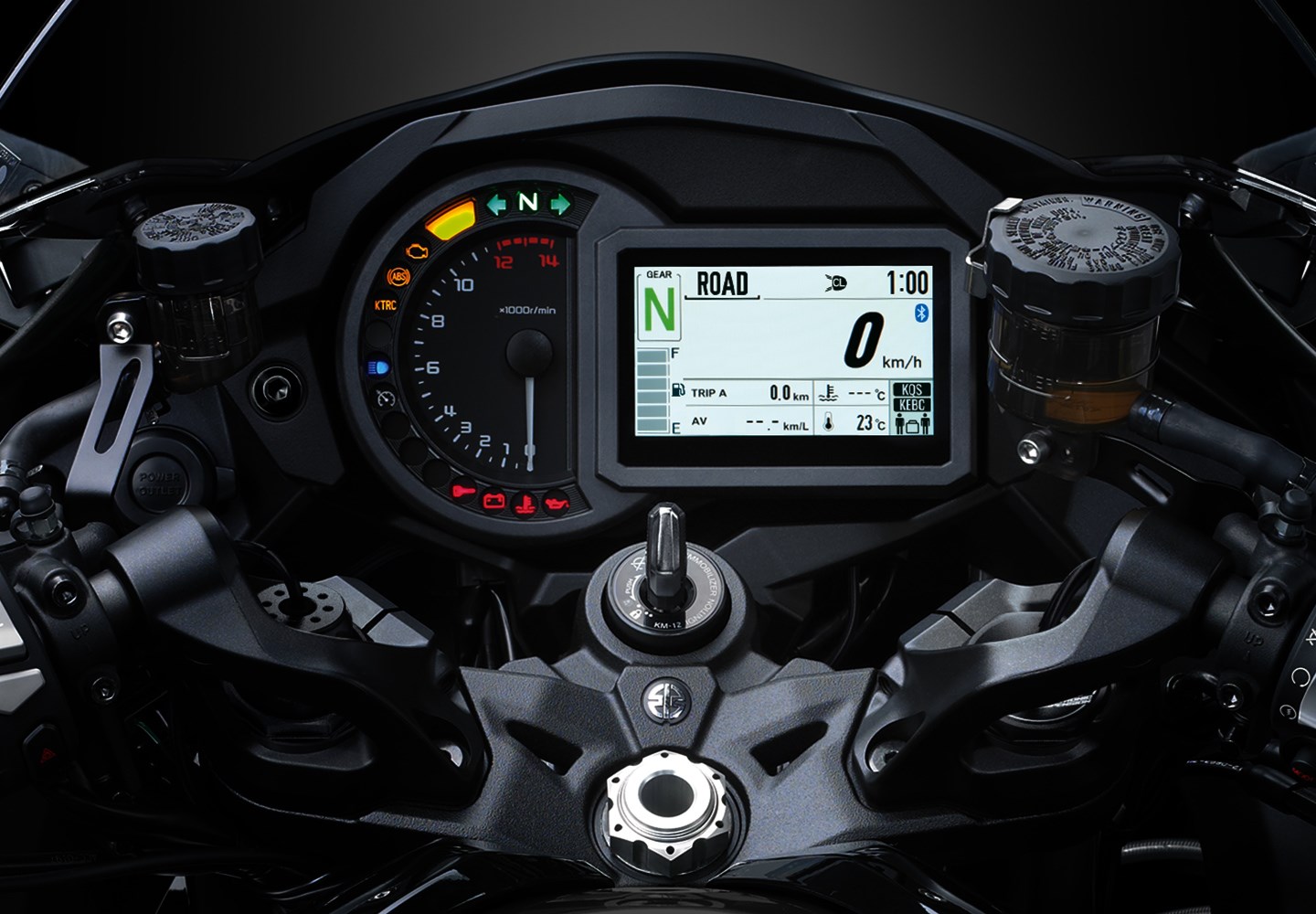

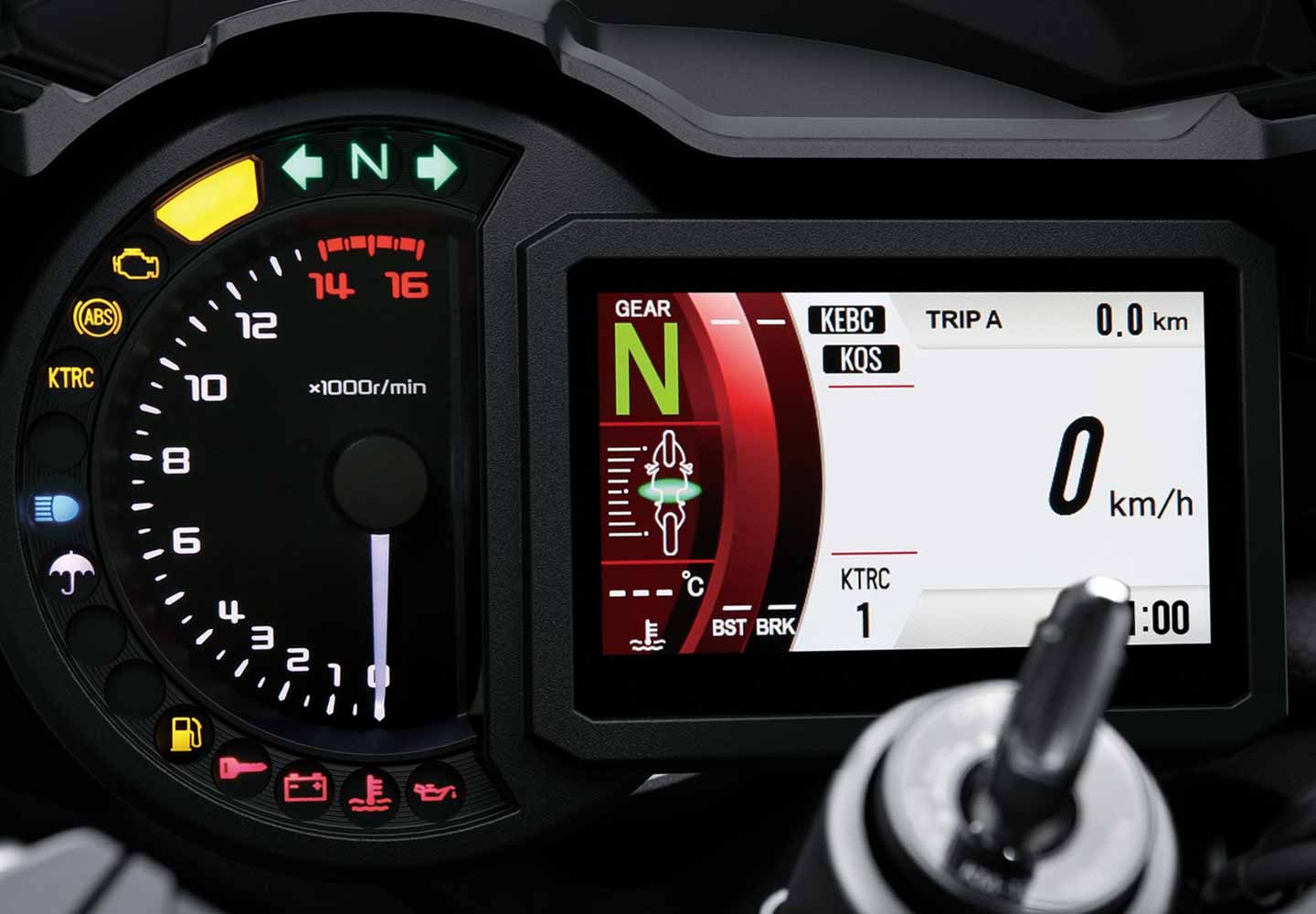

All-digital TFT (thin-film transistor) color instrumentation gives the cockpit a high-tech, high-grade appearance and visibility. The screen’s background color is selectable (black or white), and screen brightness adjusts automatically to suit available light.
Display functions include: digital speedometer, digital bar-style tachometer, gear position indicator, shift lamp, fuel gauge, odometer, dual trip meters, current and average fuel consumption, remaining range, average speed, total time, coolant temperature, clock, battery voltage, Kawasaki service reminder, oil change reminder, and the Kawasaki Economical Riding Indicator.
STYLING
Light the Way
For a bright and more efficient look, all light equipment utilizes LED technology, including turn signals and license plate lamp.
-
-
STYLING
STUNNING & ICONIC
The Ninja H2® ABS motorcycle design projects intense force, becoming a product of functional beauty. Each and every angle is designed to contribute unprecedented performance and style.

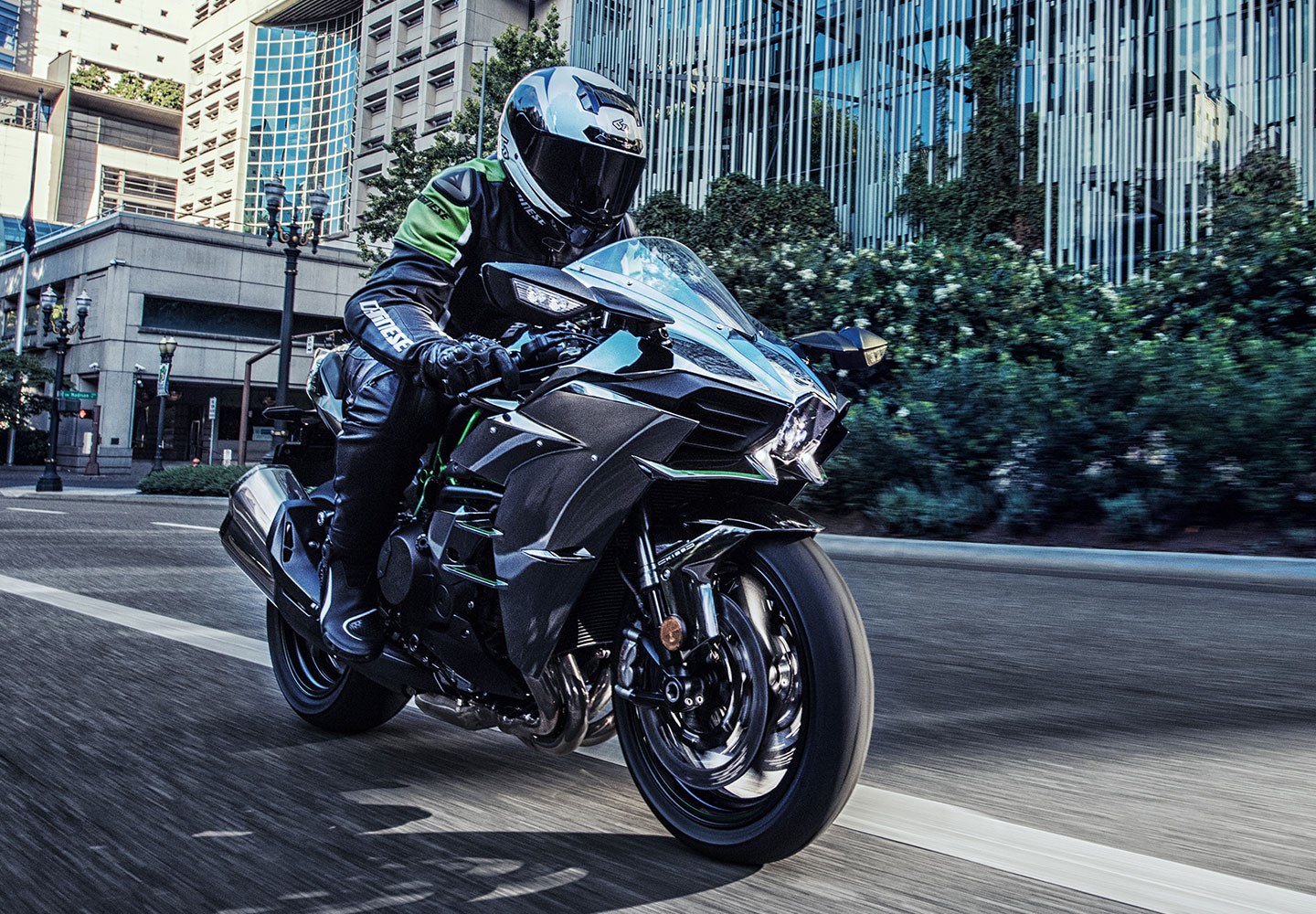

Professional rider(s) on a closed course.
