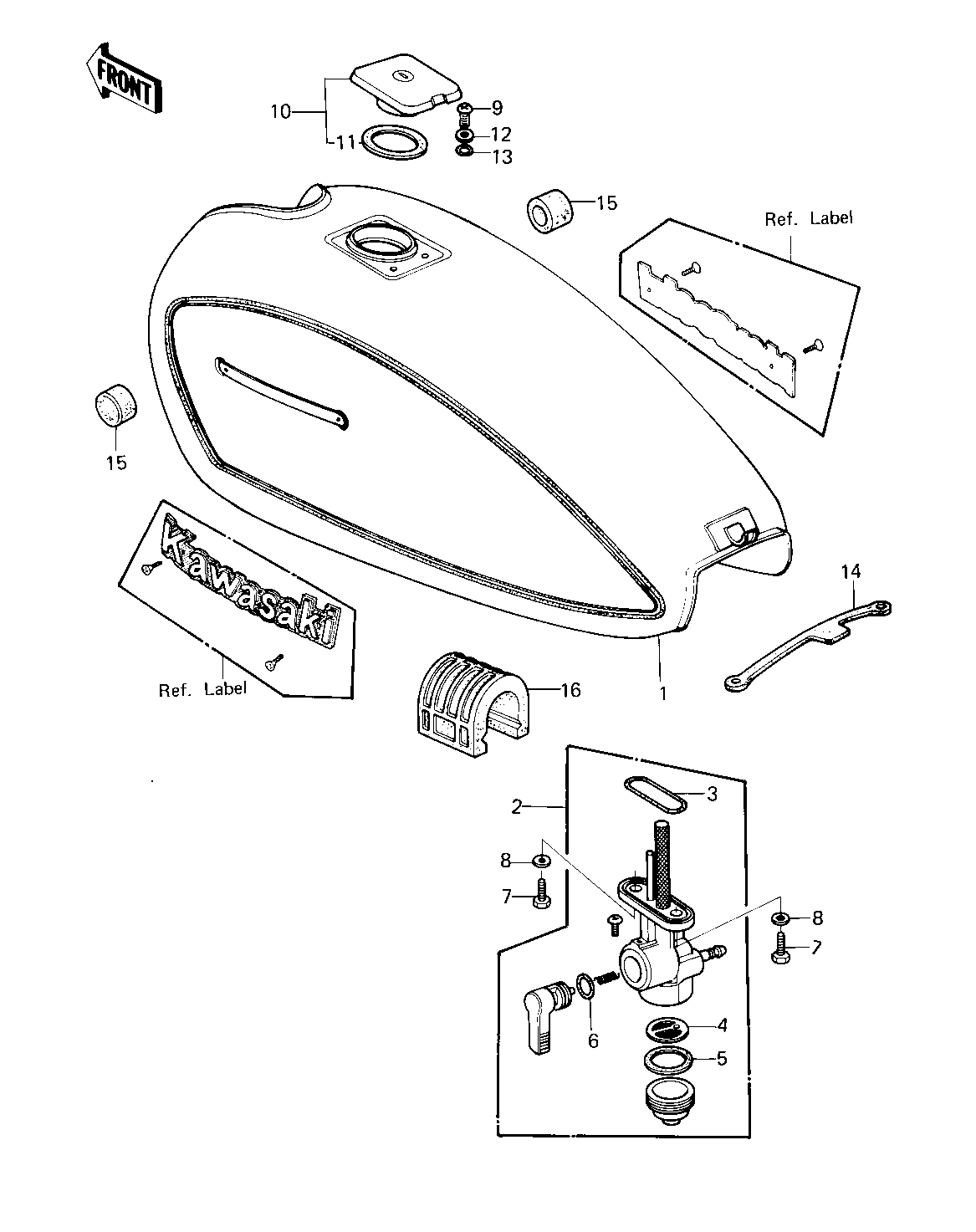

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TANK-FUEL,C.P.RED | 1 | 51001-1039-A5 | 1 | ||
| TANK-FUEL,L.D.BLUE | 1 | 51001-1039-7Z | 1 | ||
| TAP ASSY FUEL | 2 | 51023-1051 | 1 | ||
| "O" RING | 3 | 51039-003 | 1 | ||
| STRINER,FUEL TAP | 4 | 14043-1002 | 1 | ||
| GASKET,FUEL TAP CUP | 5 | 11009-1013 | 1 | ||
| "0" RING, 10MM | 6 | 670B2010 | 1 | ||
| BOLT,6X20,FUEL TAP | 7 | 92001-1091 | 2 | ||
| WASHER-PLAIN | 8 | 92022-183 | 2 | ||
| SCREW PAN HEAD 5X10 | 9 | 220B0510 | 2 | ||
| CAP ASSY TANK | 10 | 51048-1018 | 1 | ||
| GASKET,FUEL TANK CAP | 11 | 11009-1051 | 1 | ||
| WASHER,PLAIN | 12 | 92022-1038 | 2 | ||
| "0" RING | 13 | 92055-1023 | 2 | ||
| BAND,FUEL TANK | 14 | 92072-042 | 1 | ||
| DAMPER RUBBER-FL TANK | 15 | 92075-101 | 2 | ||
| DAMPER RUBBER,FL TNK | 16 | 92075-215 | 1 |
| TANK-FUEL,C.P.RED | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-FUEL,L.D.BLUE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP ASSY FUEL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRINER,FUEL TAP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TAP CUP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING, 10MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20,FUEL TAP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X10 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP ASSY TANK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,FUEL TANK CAP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-FL TANK | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FL TNK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
