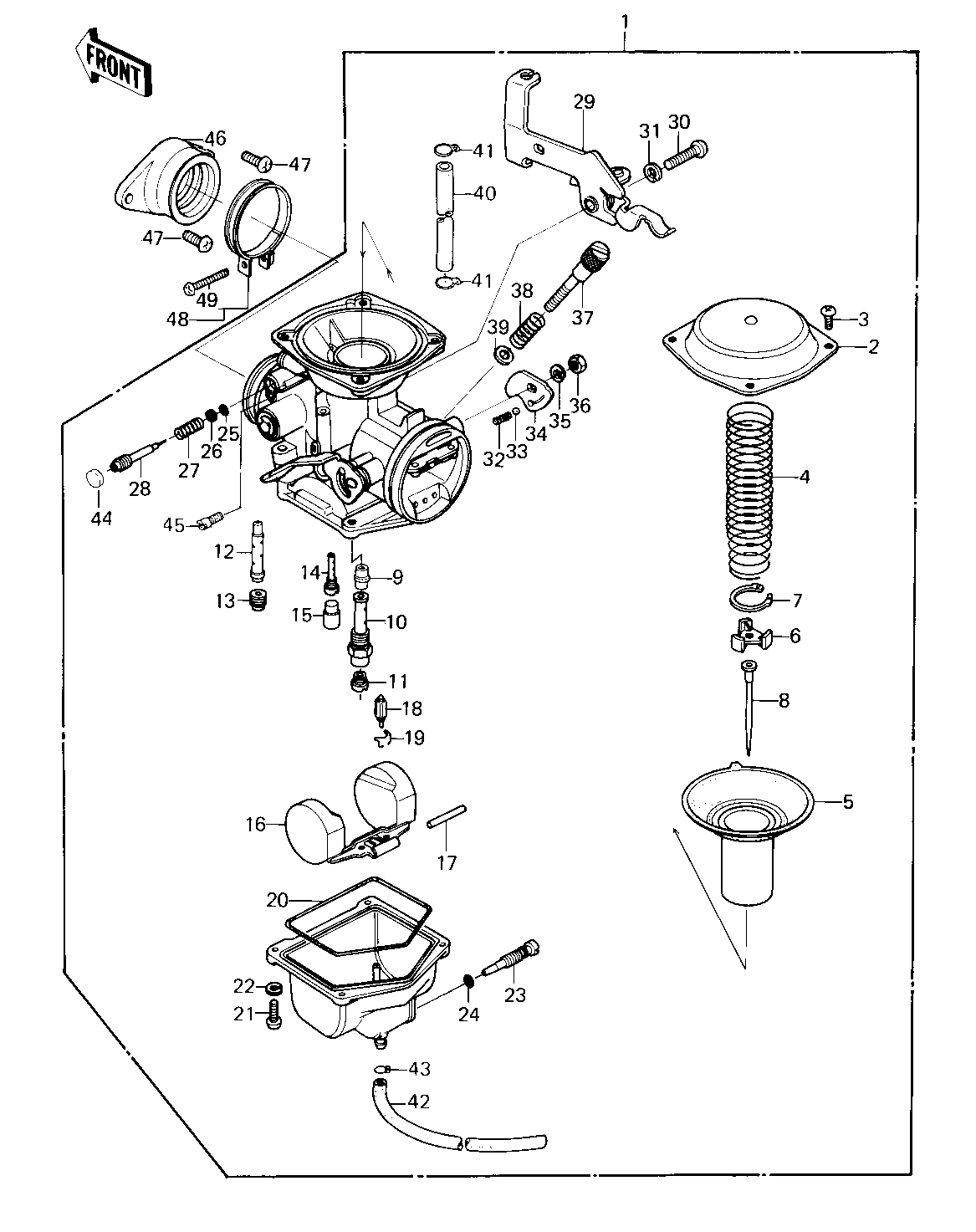

1980 KZ250 - CARBURETOR ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-1160 1
TOP,MIXING CHAMBER 2 16005-1001 1
SCREW PAN HEAD 4X8 3 220B0408 4
SPRING 4 92081-1001 1
VACUUM,VALVE 5 16126-1042 1
COLLAR 6 16007-1001 1
CIRCLIP 7 92037-1005 1
JET NEEDLE,N05A 8 16009-1054 1
NEEDLE JET 9 16017-1052 1
HOLDER,NEEDLE JET 10 13091-1050 1
MAIN JET,#2ND,#98 11 92063-1005 1
MAIN JET,#92,2ND 11 92063-1004 (1 RACING USE ONLY
MAIN JET,2ND,#95 11 92063-1001 (1 RACING USE ONLY
MAIN JET,2ND,#100 11 92063-1006 (1 RACING USE ONLY
MAIN JET,2ND,#102 11 92063-1090 (1 RACING USE ONLY
NOZZLE,MAIN 12 92062-1001 1
MAIN JET,PRI,#68 13 92063-1050 1
PILOT JET,#35 14 92064-1001 1
CAP,RUBBER 15 16012-1001 1
FLOAT 16 16031-1001 1
FLOAT PIN 17 92043-1002 1
FLOAT VALVE 18 16030-1007 1
CLIP,FLOAT VALVE 19 16044-007 1
"O" RING,FLOAT BALL 20 16019-024 1
SCREW-PAN-CRSOSS,4X12 21 220B0412 4
WASHER SPRING 4MM 22 461F0400 4
SCREW,DRAIN 23 92009-1095 1
"O" RING,DRAIN SCREW 24 92055-1053 1
O RING,PILOT ADJ 25 92055-1002 1
WASHER,PLAIN 26 92022-1003 1
SPRING,PIROT ADJ SCRW 27 92081-1002 1
SCREW,PILOT ADJUST 28 16014-1029 1
PLATE,STAY 29 11034-1826 1
SCREW-PAN-CROS,5X25 30 220B0525 1
WASHER SPRING 5MM 31 461F0500 1
SPRING 32 92081-1004 1
BALL,STEEL,1/8" 33 600A0400 1
CAM,CHOKE LINK 34 13169-1303 1
WASHER SPRING 5MM 35 461F0500 1
NUT,5MM 36 311B0500 1
SCREW,THROTTLE STOP 37 16021-1031 1
SPRING,STOP SCREW 38 92081-1062 1
WASHER,PLAIN 39 92022-1209 1
HOSE,FUEL INLET 40 92059-1001 1
CLAMP,TUBE 41 92037-1682 2
HOSE,FUEL OVERFLOW 42 92059-1046 1
CLAMP,TUBE,OVERFLOW 43 92037-1142 1
PLUG,PILOT SCREW 44 92066-1051 1
SCREW,PLUG 45 92009-1004 1
HOLDER,CARBURETOR 46 16065-1028 1
SCREW PAN HEAD 6X14 47 220B0614 2
CLAMP,CARBURETOR 48 92037-1021 1
SCREW PAN HEAD 5X30 49 220B0530 1
