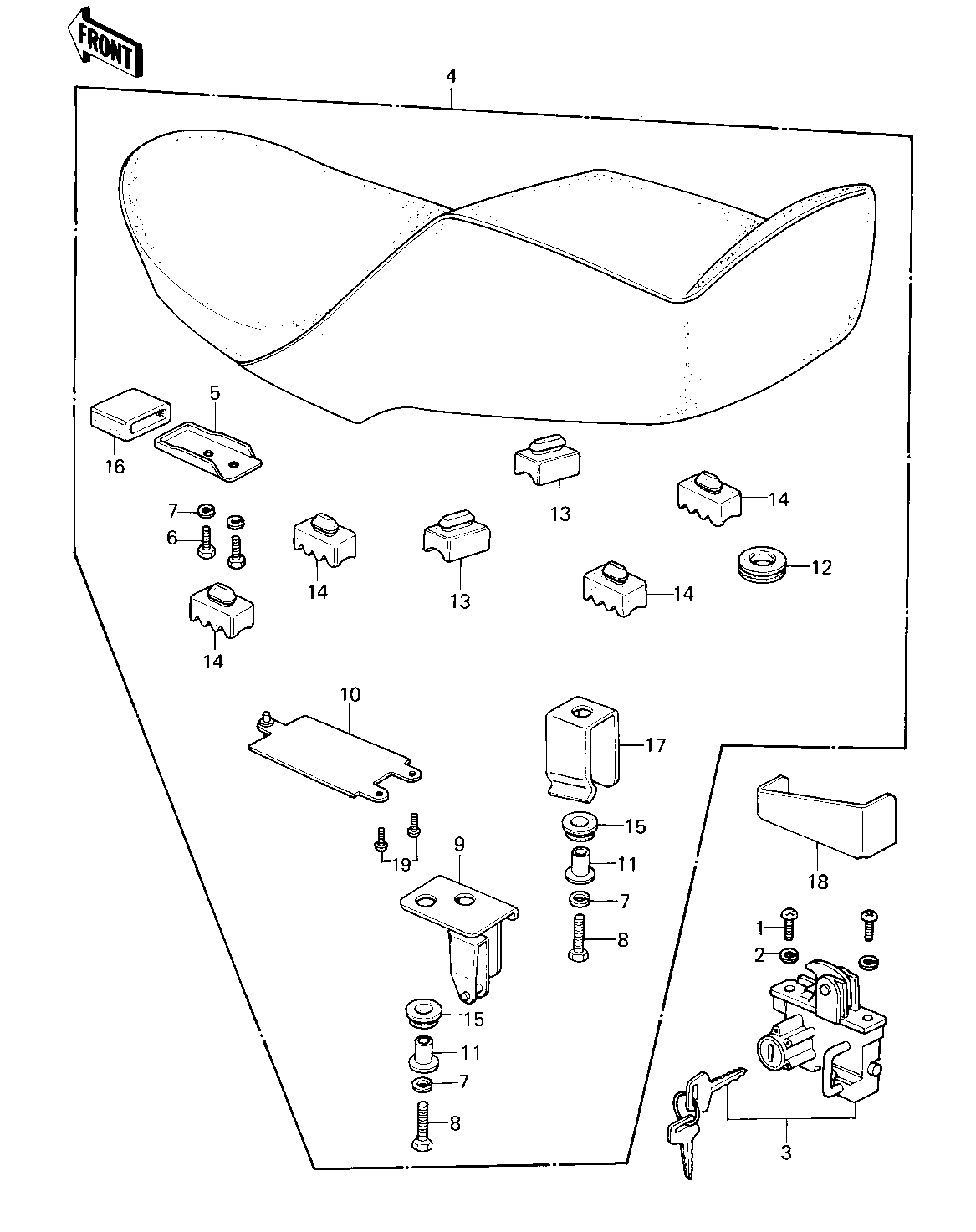

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X14 | 1 | 220B0614 | 2 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 2 | ||
| LOCK ASSY,SEAT HELMET | 3 | 27016-5028 | 1 | ||
| SEAT-ASSY | 4 | 53001-1121 | 1 | ||
| BRACKET,HOLDER | 5 | 11034-1135 | 1 | ||
| BOLT-UPSET,6X12 | 6 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 5 | ||
| BOLT-UPSET | 8 | 112G0625 | 3 | ||
| HOOK,SEAT | 9 | 27012-1015 | 1 | ||
| CASE | 10 | 32099-011 | 1 | ||
| COLLAR,SEAT | 11 | 92027-1062 | 3 | ||
| GROMMET | 12 | 92071-056 | 1 | ||
| DAMPER RUBBER | 13 | 92075-099 | 2 | ||
| DAMPER,SEAT | 14 | 92075-1007 | 4 | ||
| DAMPER, HEAD LMP FITT | 15 | 92075-1123 | 3 | ||
| DAMPER RUBBER,SEAT | 16 | 92075-219 | 1 | ||
| SPRING,SEAT | 17 | 92081-1205 | 1 | ||
| GUARD,SEAT | 18 | 55020-1042 | 1 | ||
| SCREW | 19 | 92009-1043 | 2 |
| SCREW PAN HEAD 6X14 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LOCK ASSY,SEAT HELMET | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAT-ASSY | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HOLDER | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| HOOK,SEAT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,SEAT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,SEAT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER, HEAD LMP FITT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SEAT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SEAT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,SEAT | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
