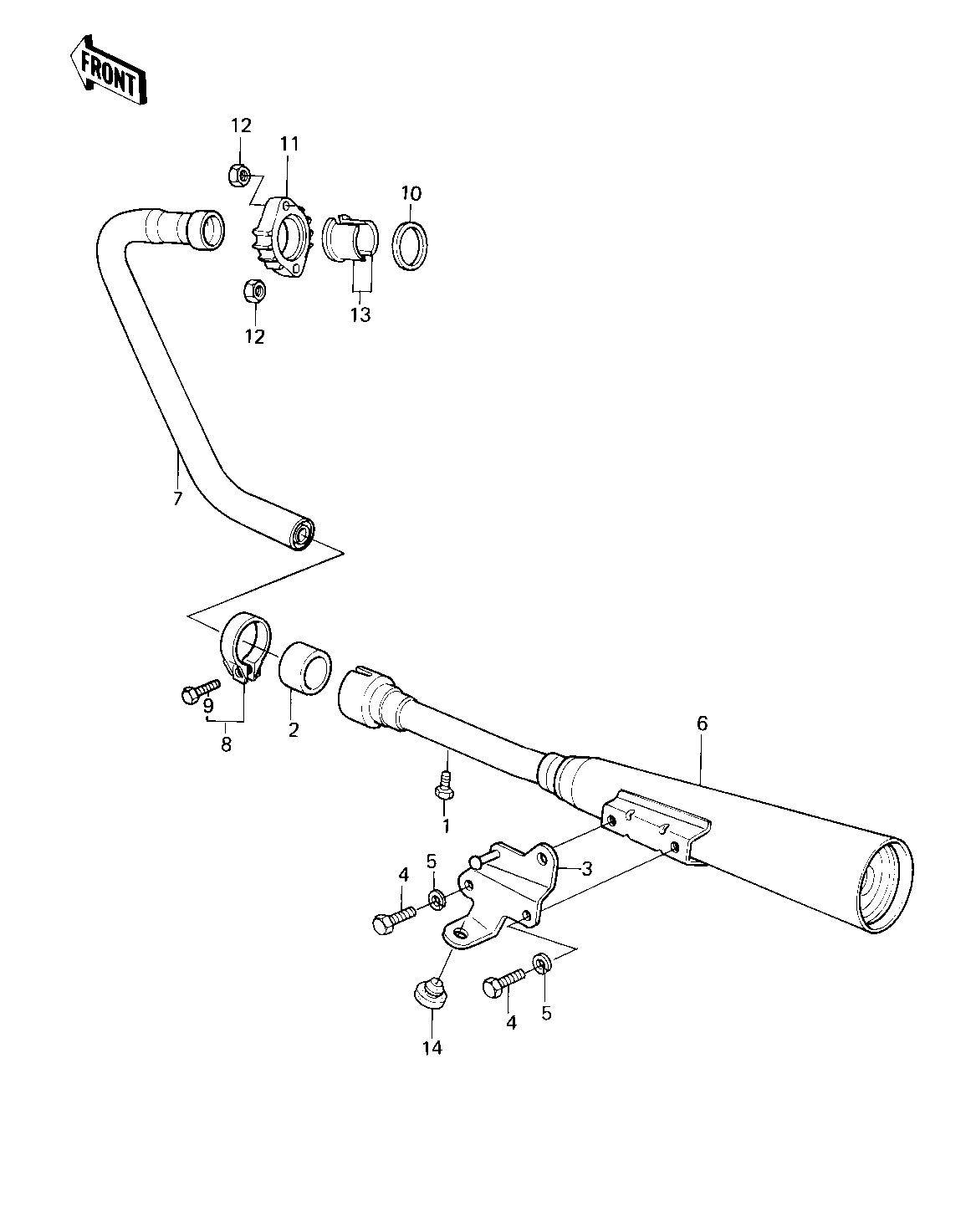

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT (6X10) | 1 | 110R0610 | 1 | ||
| GASKET,MANIFOLD EXHAU | 2 | 11060-1068 | 1 | ||
| BRACKET,MUFFLER | 3 | 11034-1662 | 1 | ||
| BOLT 8X12 | 4 | 110N0812 | 2 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 2 | ||
| BODY-COMP-MUFFLER | 6 | 18002-1448 | 1 | ||
| PIPE-EXHAUST | 7 | 18049-1387 | 1 | ||
| CLAMP | 8 | 92037-1226 | 1 | ||
| BOLT,8X30 | 9 | 92001-1379 | 1 | ||
| GASKET,EXHAUST PIPE H | 10 | 11009-1866 | 1 | ||
| HOLDER EXHAUST PIPE | 11 | 18069-1014 | 1 | ||
| NUT-8MM | 12 | 92015-1143 | 2 | ||
| COLLAR,EXHAUST PIPE | 13 | 92027-264 | 2 | ||
| DAMPER RUBB MAIN STAD | 14 | 92075-015 | 1 |
| BOLT (6X10) | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,MANIFOLD EXHAU | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,MUFFLER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT 8X12 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X30 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE H | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER EXHAUST PIPE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT-8MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,EXHAUST PIPE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB MAIN STAD | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
