Parts Diagrams |

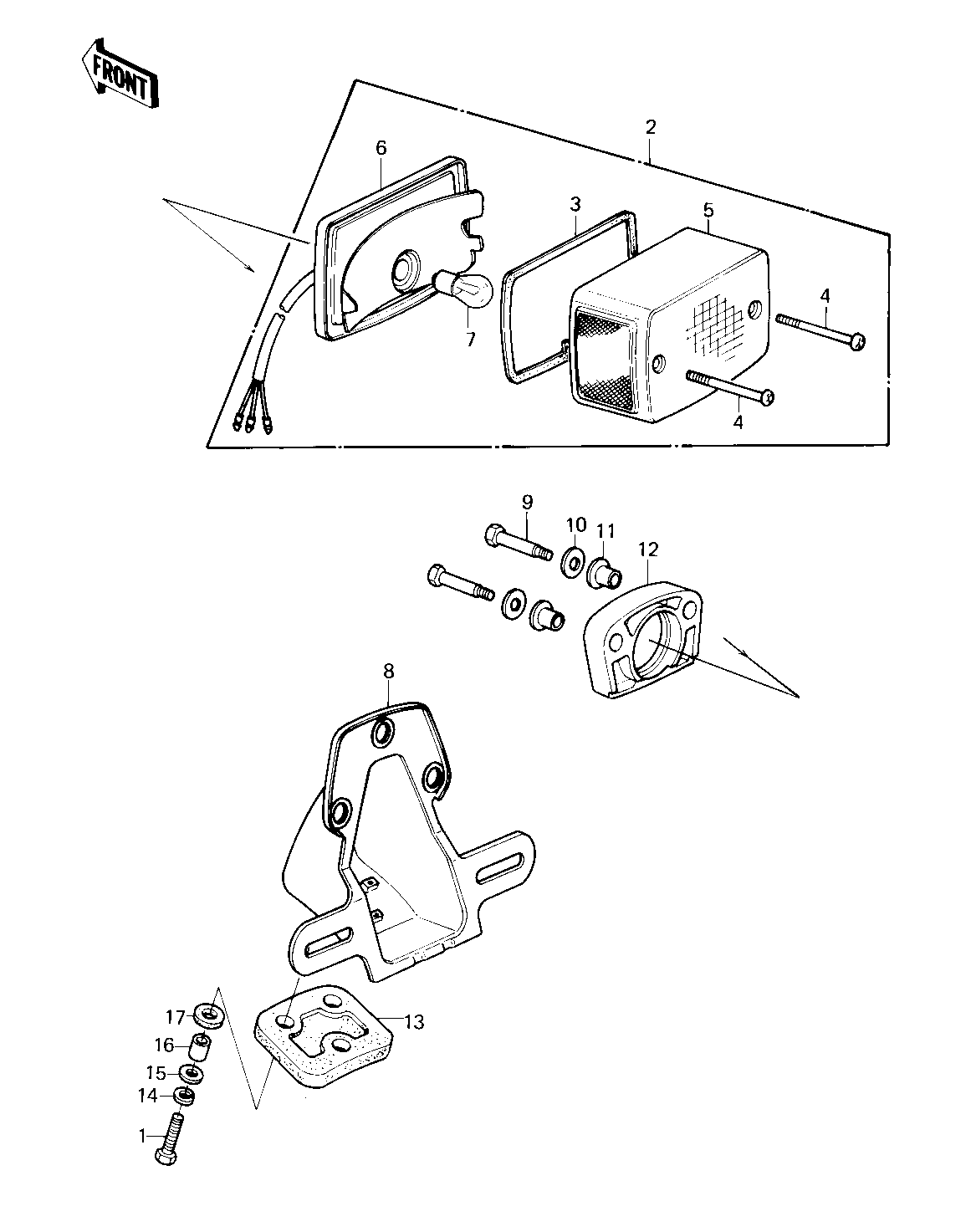

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 3 | ||
| TAIL LAMP UNIT | 2 | 23025-1033 | 1 | ||
| GASKET,TAIL LAMP LENS | 3 | 11009-1078 | 1 | ||
| SCREW,PAN HEAD,4X40 | 4 | 220E0440A | 2 | ||
| LENS,TAIL LAMP | 5 | 23026-1003 | 1 | ||
| CASE,TAIL LAMP | 6 | 23027-1020 | 1 | ||
| BULB,12V 32/3CP | 7 | 92069-059 | 1 | ||
| BRACKET,TAIL LAMP | 8 | 23036-1024 | 1 | ||
| BOLT,TAIL LAMP FITTNG | 9 | 92001-1322 | 2 | ||
| WASHER,8.5X20X1.6 | 10 | 92022-1561 | 2 | ||
| DAMPER RUBBER | 11 | 92075-1162 | 2 | ||
| DAMPER RUBBER,TAIL | 12 | 92075-1251 | 1 | ||
| DAMPER RUBBER,RR FEND | 13 | 35039-004 | 1 | ||
| WASHER SPRING 6MM | 14 | 461F0600 | 3 | ||
| WASHER 6.5X20X1.6T | 15 | 92022-125 | 3 | ||
| COLLAR 6.8X10X14.5 | 16 | 92027-156 | 3 | ||
| DAMPER RUBBER,RR FEND | 17 | 92075-121 | 3 |
| BOLT-UPSET | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| TAIL LAMP UNIT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TAIL LAMP LENS | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,4X40 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LENS,TAIL LAMP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,TAIL LAMP | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 32/3CP | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,TAIL LAMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,TAIL LAMP FITTNG | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,TAIL | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X20X1.6T | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X14.5 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,RR FEND | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
