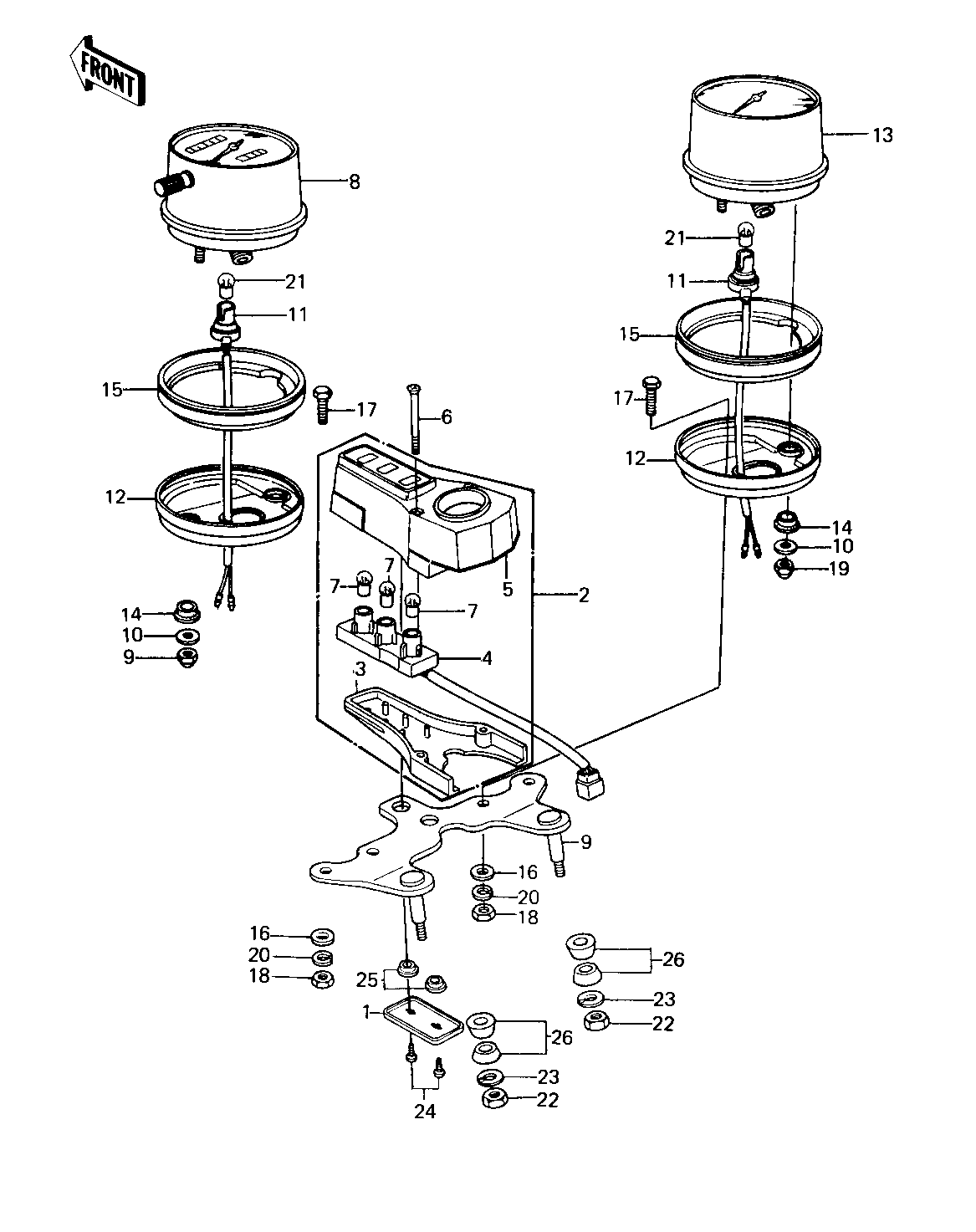

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,PILOT LAMP | 1 | 13169-1136 | 1 | ||
| LAMP ASSY,PILOT | 2 | 23016-1017 | 1 | ||
| COVER,METER BRACKET | 3 | 14025-1101 | 1 | ||
| SOCKET ASSY,INDICATOR | 4 | 25011-056 | 1 | ||
| COVER,INDICATOR LAMP | 5 | 25023-1018 | 1 | ||
| SCREW-CSK-RD-CROS,4X4 | 6 | 222C0445 | 2 | ||
| BULB 12V 3W | 7 | 92069-018 | 3 | ||
| SPEEDOMETER,MPH | 8 | 25005-1060 | 1 | ||
| SPEEDOMETER.ASSY,KPH | 8 | 25005-1072 | 1 | ||
| BRACKET,METER | 9 | 25008-1013 | 1 | ||
| WASHER,5.2X16X16X1.2T | 10 | 25009-004 | 1 | ||
| SOCKET ASSY | 11 | 25010-022 | 2 | ||
| COVER,METER | 12 | 25012-025 | 2 | ||
| TACHOMETER ASSY | 13 | 25015-1016 | 1 | ||
| DAMPER RUBBER-METER | 14 | 25019-013 | 4 | ||
| SHOCK DAMPER,SPEEDMET | 15 | 25019-031 | 2 | ||
| WASHER PLAIN 6MM | 16 | 411B0600 | 4 | ||
| BOLT,HEX HEAD,6X14 | 17 | 92003-204 | 4 | ||
| NUT | 18 | 92015-078 | 4 | ||
| NUT-CAP,5MM | 19 | 322N0500 | 4 | ||
| WASHER-SPRING,6MM,BLA | 20 | 461K0600 | 4 | ||
| BULB 12V 3W | 21 | 92069-018 | 2 | ||
| NUT 6MM | 22 | 311B0600 | 2 | ||
| WASHER SPRING 6MM | 23 | 461F0600 | 2 | ||
| SCREW,TAPPING,4X10 | 24 | 92009-1040 | 2 | ||
| DAMPER,PILOT LAMP | 25 | 92075-1138 | 2 | ||
| DAMPER RUBBER,METER | 26 | 92075-248 | 4 |
