Parts Diagrams |

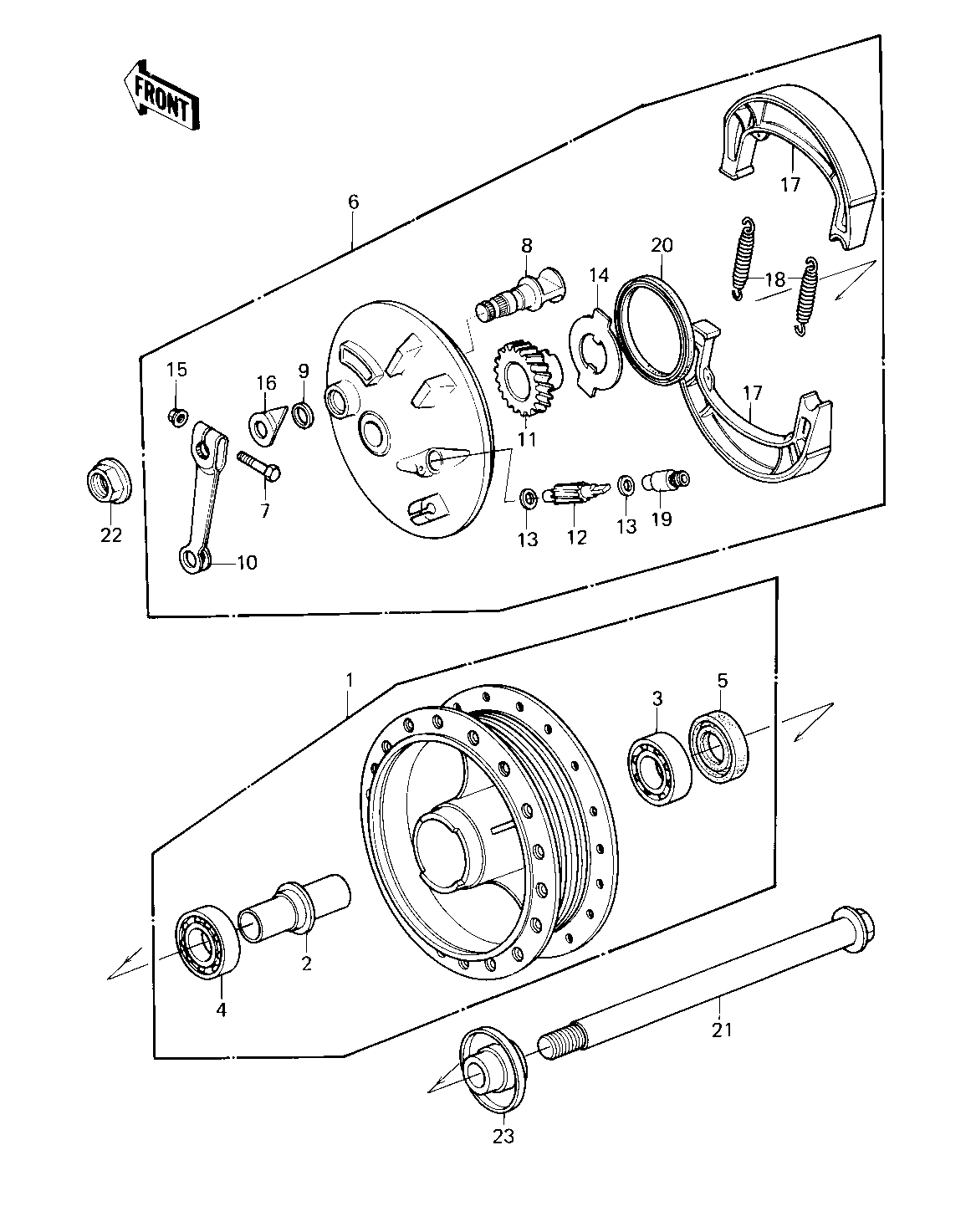

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM-ASSY,FR BRK,BUFF | 1 | 41034-048-80 | 1 | ||
| SPACER FR HUB BEARING | 2 | 41039-004 | 1 | ||
| BEARING BALL #6202 | 3 | 601B6202 | 1 | ||
| BEARING BALL #6202Z | 4 | 601B6202Z | 1 | ||
| OIL SEAL RR BRK DRUM | 5 | 92050-008 | 1 | ||
| PANEL-ASY,FR BRK | 6 | 41035-1028 | 1 | ||
| BOLT-UPSET,6X35 | 7 | 112G0635 | 1 | ||
| CAM SHAFT,FR BRAKE | 8 | 41050-1015 | 1 | ||
| DUST SHIELD BRAKE CAM | 9 | 41051-001 | 1 | ||
| LEVER,FR BRAKE CAM | 10 | 41053-1017 | 1 | ||
| GEAR,SPEEDOMETER 29T | 11 | 41060-1027 | 1 | 29T | |
| PINION,SPEEDOMET,11T | 12 | 41060-1028 | 1 | 11T | |
| WASHER THRST SPD PINI | 13 | 41063-001 | 2 | ||
| RECIEVER GEAR | 14 | 41064-003 | 1 | ||
| NUT,6MM | 15 | 41072-007 | 1 | ||
| INDICATOR,FR BRK PNL | 16 | 41085-005 | 1 | ||
| SHOE,BRAKE | 17 | 42019-011 | 2 | ||
| SPRING-BRAKE SHOE | 18 | 42020-004 | 2 | ||
| BUSHING,SPEEDOMET CBL | 19 | 92028-1066 | 1 | ||
| OIL SEAL F BRK PANEL | 20 | 92050-010 | 1 | ||
| AXLE,FRONT | 21 | 41068-1029 | 1 | ||
| NUT,14MM | 22 | 92015-1407 | 1 | ||
| COLLAR,FR AXLE | 23 | 92027-1218 | 1 |
| DRUM-ASSY,FR BRK,BUFF | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER FR HUB BEARING | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6202 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6202Z | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL RR BRK DRUM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PANEL-ASY,FR BRK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X35 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,FR BRAKE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD BRAKE CAM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FR BRAKE CAM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,SPEEDOMETER 29T | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 29T |
| PINION,SPEEDOMET,11T | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 11T |
| WASHER THRST SPD PINI | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RECIEVER GEAR | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,FR BRK PNL | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,SPEEDOMET CBL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL F BRK PANEL | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FRONT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
