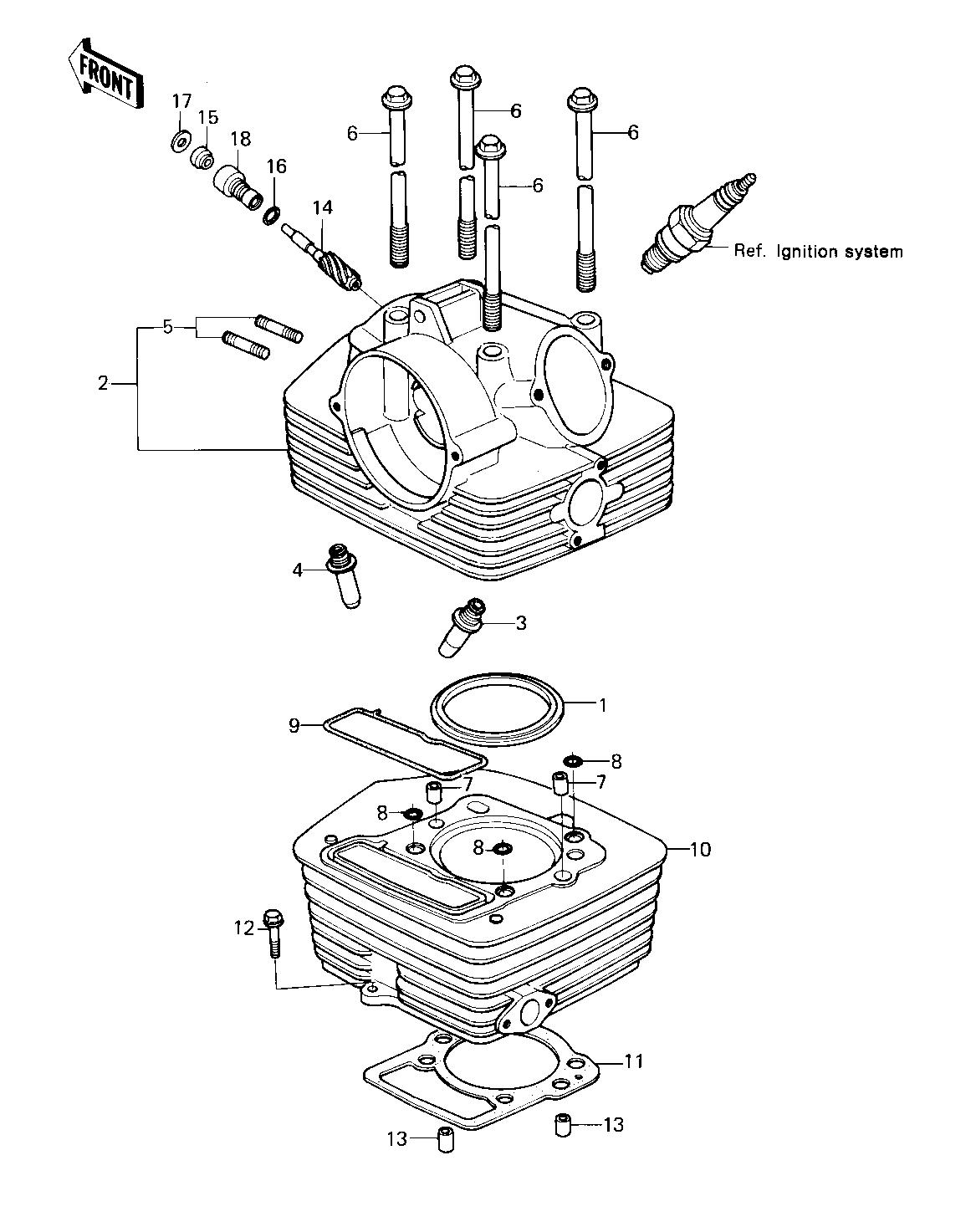

1980 KZ250 - CYLINDER HEAD/CYLINDER ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,CYLINDER HEAD | 1 | 11004-1002 | 1 | ||
| CYLINDER HEAD | 2 | 11002-5013 | 1 | ||
| GUIDE,INLET VALVE | 3 | 12013-003 | 1 | ||
| GUIDE,EXHAUST VALVE | 4 | 49002-1010 | 1 | ||
| STUD,8X30 | 5 | 92004-1069 | 2 | ||
| BOLT,8X233 | 6 | 92003-220 | 4 | ||
| PIN,DOWEL,10X8.2X14 | 7 | 92043-1037 | 2 | ||
| RING-O,10MM | 8 | 92055-1149 | 3 | ||
| "0" RING | 9 | 92055-105 | 1 | ||
| CYLINDER, | 10 | 11006-1005 | 1 | ||
| GASKET,CYLINDER BASE | 11 | 11009-043 | 1 | ||
| BOLT | 12 | 92003-202 | 1 | ||
| PIN,DOWEL,10X8.2X14 | 13 | 92043-1037 | 2 | ||
| GEAR,TACHOMETER | 14 | 13223-012 | 1 | ||
| OIL SEAL | 15 | 92050-075 | 1 | ||
| RING-O,10MM | 16 | 92055-1149 | 1 | ||
| GASKET,TACHO GEAR | 17 | 92065-104 | 1 | ||
| GUIDE,TACHOMETER GEAR | 18 | 92087-011 | 1 |
| GASKET,CYLINDER HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER HEAD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INLET VALVE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,EXHAUST VALVE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STUD,8X30 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X233 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,10MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER, | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR,TACHOMETER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,10MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TACHO GEAR | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,TACHOMETER GEAR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
