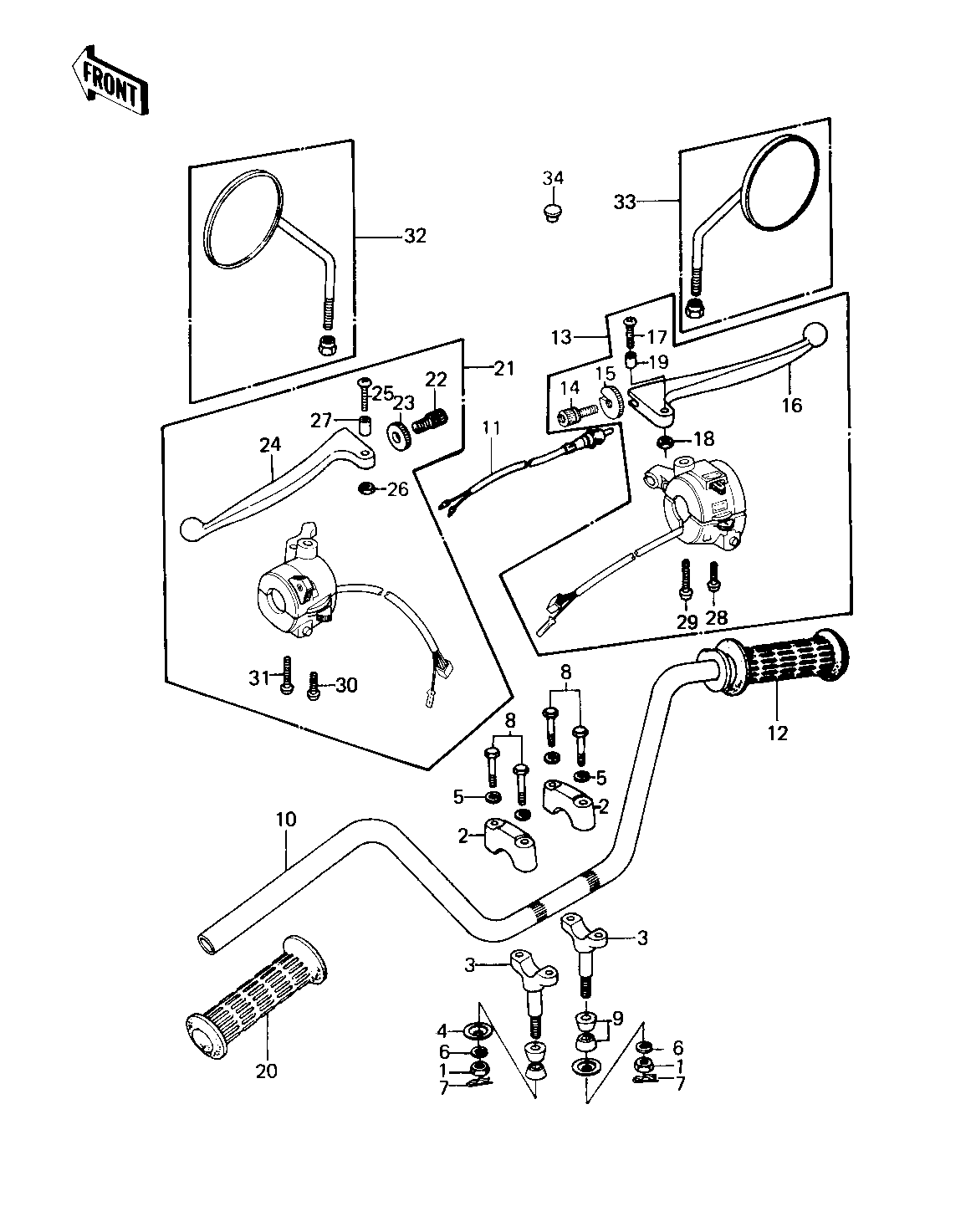

1980 KZ250 - HANDLEBAR ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,10MM 1 314B1000 2
HOLDER-HANDLEBAR 2 46012-008 2
HOLDER-HANDLEBAR LOW 3 46012-010 2
CAP HANDLEBAR HOLDER 4 46016-003 2
WASHER SPRING 8MM 5 461F0800 4
WASHER SPRING 10MM 6 461F1000 2
PIN,SNAP 7 554A0800 2
BOLT 8X38 8 92001-1405 4
DAMPER RUBBER HANDLE 9 92075-039 4
HANDLEBAR 10 46003-1045 1
SWITCH-FR. BRAKE LAMP 11 27021-004 1
GRIP ASSY,THROTTLE 12 46019-041 1
HOUSING ASSY,R.H 13 46091-1084 1
SCREW CABLE ADJUST 14 46055-003 1
NUT-LOCK 15 46056-005 1
LEVER,FRONT BRAKE 16 46058-019 1
SCREW PAN HEAD 5X22 17 220B0522 1
NUT-LOCK,5MM 18 92019-014 1
COLLAR, LEVER 19 92027-1042 1
RUBBER,L.H GRIP 20 46075-028 1
HOUSING.ASSY,L.H 21 46091-1085 1
SCREW CABLE ADJUST 22 46055-003 1
NUT-LOCK 23 46056-005 1
LEVER,CLUTCH 24 46092-024 1
SCREW PAN HEAD 5X22 25 220B0522 1
NUT-LOCK,5MM 26 92019-014 1
COLLAR,LEVER 27 92027-1042 1
SCREW PAN HEAD 5X30 28 220B0530 1
SCREW,PAN HEAD,5X48 29 92009-1017 1
SCREW-PAN-CROS,5X25 30 220B0525 1
SCREW,PAN HEAD,5X38 31 92009-1018 1
REAR VIEW MIRROR,L.H. 32 56001-1055 1
REAR VIEW MIRROR,R.H. 33 56001-1054 (1
CAP-RR VIEW MIRROR 34 92102-009 1
