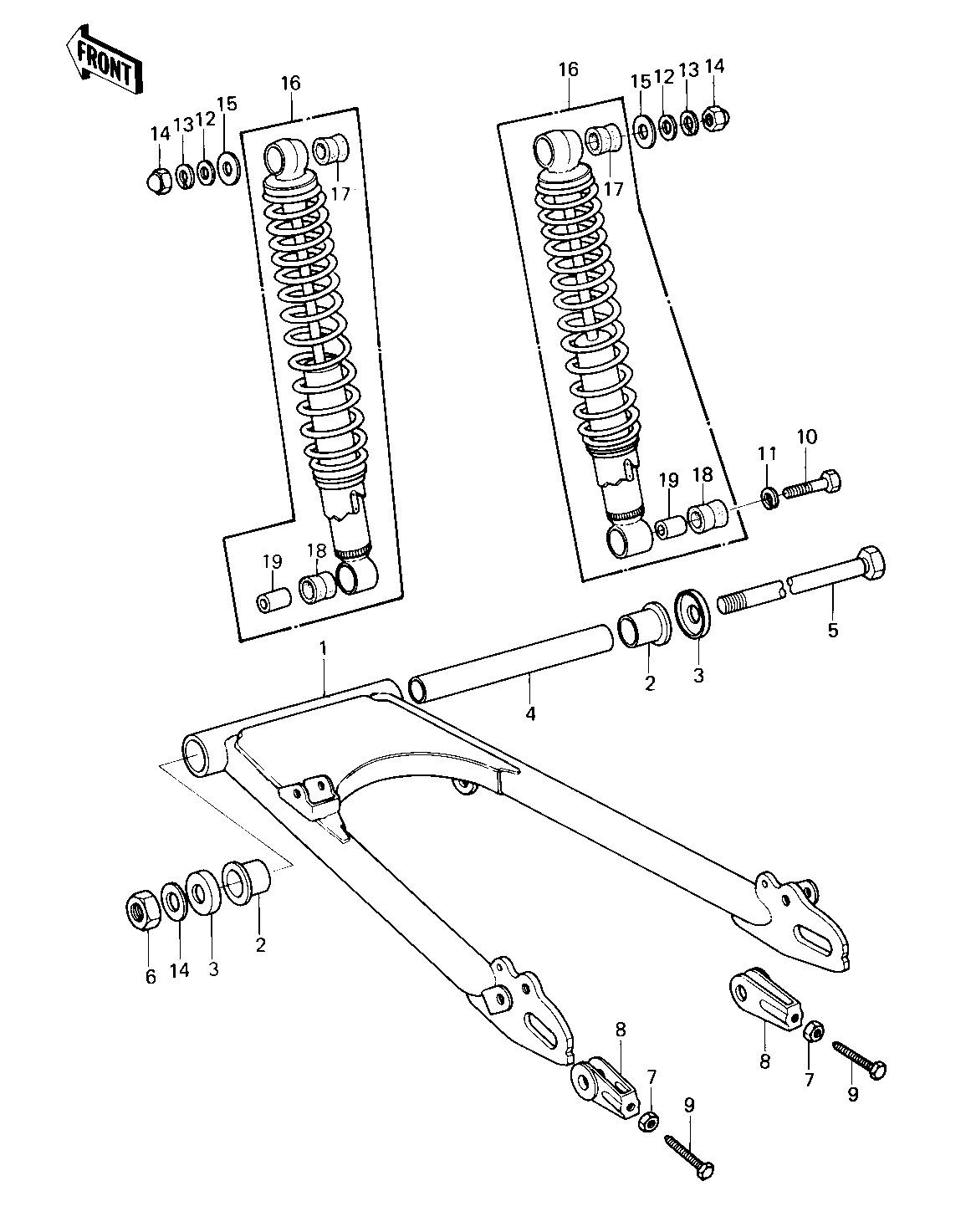

1980 KZ250 - SWING ARM/SHOCK ABSORBERS ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWING ARM 1 33001-1049 1
BUSHING-SWING ARM 2 33033-009 2
CAP,SWING ARM 3 33035-010 2
SLEEVE,SWING ARM 4 42036-1004 1
SHAFT-SWING ARM PIVOT 5 33032-037 1
NUT-LOCK,14MM 6 92019-011 1
NUT 8MM 7 312B0800 2
ADJUSTER,CHAIN 8 33040-1001 2
BOLT,8X50 9 92001-1399 2
BOLT HEX HEAD 10X35 10 113N1035 2
WASHER SPRING 10MM 11 461F1000 2
WASHER PLAIN 10MM 12 411B1000 2
WASHER SPRING 10MM 13 461F1000 2
NUT SHOCK ABSORBER 14 92020-003 2
WASHER-PL-10.5X26X2.3 15 92022-044 2
SHOCK ABSBR RR 16 45014-1048 2
BUSHING,SHCK ABS RUB 17 45017-015 2 UPPER
BUSHING, SHCK ABS RUB 18 45017-012 2 LOWER
BUSHING,SHOCK ABSORB 19 45016-008 2
