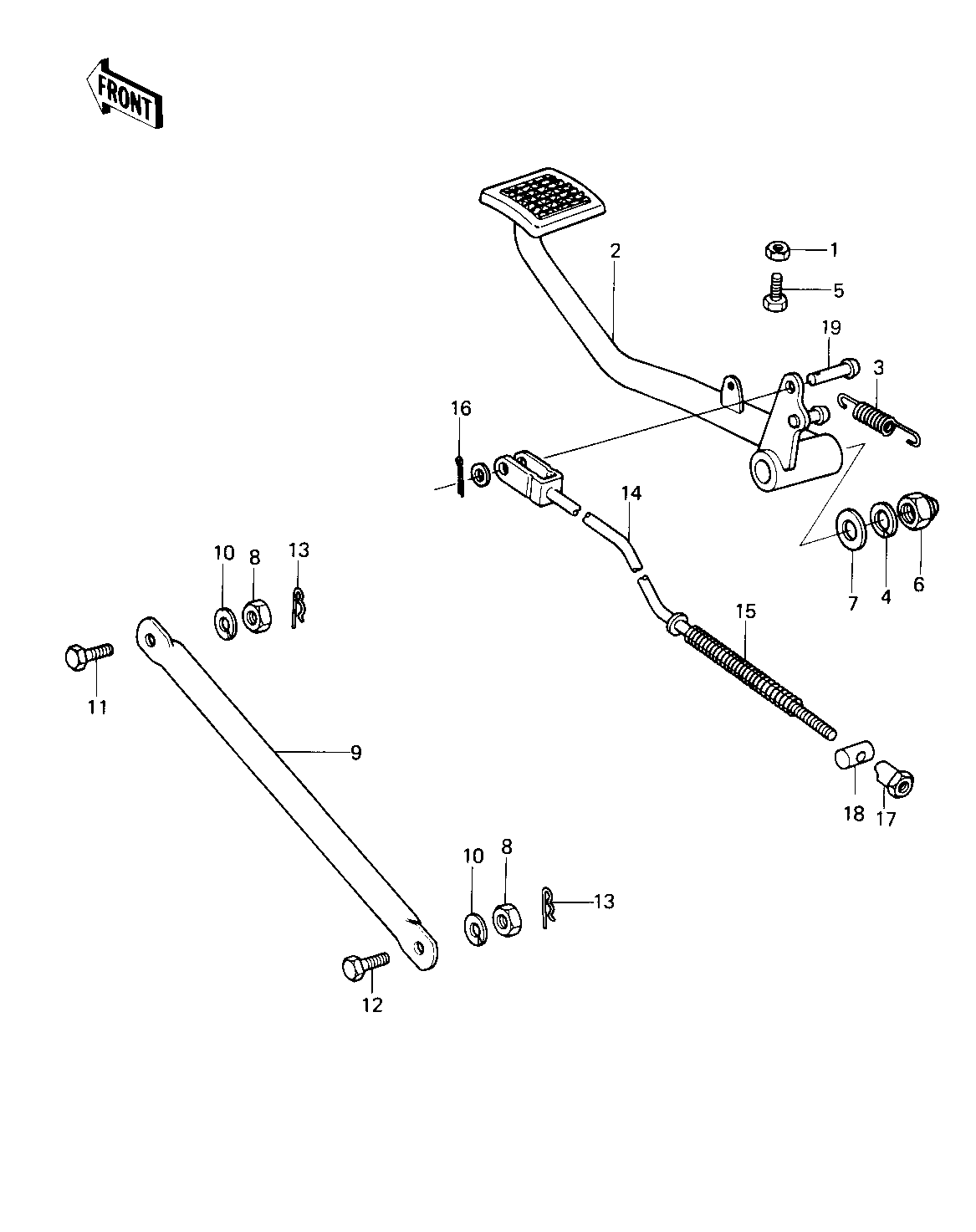

1980 KZ250 - BRAKE PEDAL/TORQUE LINK ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 6MM | 1 | 311B0600 | 1 | ||
| PEDAL,BRAKE | 2 | 43001-1044 | 1 | ||
| SPRING,BRAKE PEDAL | 3 | 43005-029 | 1 | ||
| WASHER SPRING 8MM | 4 | 461F0800 | 1 | ||
| BOLT,HEX HEAD,6X25 | 5 | 92001-1090 | 1 | ||
| NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 1 | ||
| WASHER,8.5X20X1.6 | 7 | 92022-1561 | 1 | ||
| NUT 10MM | 8 | 315B1000 | 2 | ||
| TORQUE LINK REAR BRK | 9 | 43007-018 | 1 | ||
| WASHER SPRING 10MM | 10 | 461F1000 | 2 | ||
| BOLT TORQUE LINK FIT | 11 | 92003-017 | 1 | ||
| BOLT | 12 | 92003-096 | 1 | ||
| PIN,SNAP | 13 | 554A0800 | 2 | ||
| ROD,BRAKE | 14 | 43011-1022 | 1 | ||
| SPRING,BRAKE ROD | 15 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 16 | 550D2015 | 1 | ||
| NUT-BRAKE ROD ADJUST | 17 | 92015-042 | 1 | ||
| PIN BRAKE | 18 | 92043-039 | 1 | ||
| PIN,BRAKE ROD FITTING | 19 | 92043-090 | 1 |
