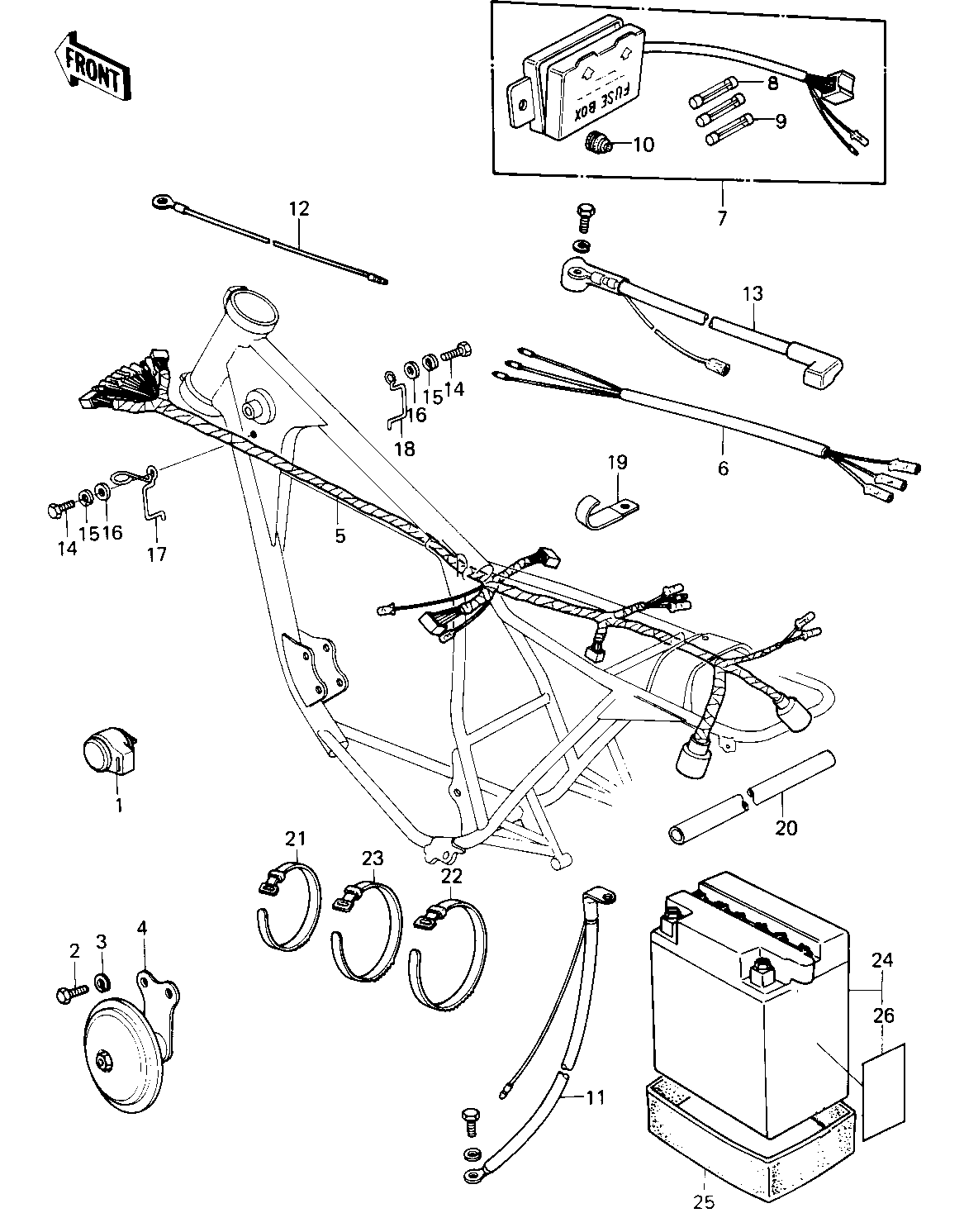

1980 KZ250 - CHASSIS ELECTRICAL EQUIPMENT ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RELAY-TURN SIGNAL | 1 | 27002-011 | 1 | ||
| BOLT-UPSET,6X12 | 2 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| HORN | 4 | 27003-1348 | 1 | ||
| WIRING HARNESS,MAIN | 5 | 26001-1129 | 1 | ||
| WIRING HARNESS,REAR | 6 | 26002-041 | 1 | ||
| FUSE ASSY | 7 | 26004-035 | 1 | ||
| FUSE-20A | 8 | 26006-005 | 2 | ||
| FUSE 10A | 9 | 26006-003 | 3 | ||
| DAMPER RUBBER,FUSE | 10 | 92075-279 | 1 | ||
| WIRE,BATTERY GROUND | 11 | 26010-052 | 1 | ||
| WIRE,LEAD | 12 | 26011-095 | 1 | ||
| WIRE,MAGNETIC SWITCH | 13 | 26011-1035 | 1 | ||
| BOLT-UPSET,6X12 | 14 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 15 | 461F0600 | 2 | ||
| WASHER PLAIN 6MM | 16 | 411B0600 | 2 | ||
| CLAMP | 17 | 92037-202 | 1 | ||
| CLAMP | 18 | 92037-203 | 1 | ||
| CLAMP,HARNESS | 19 | 92037-113 | 2 | ||
| TUBE,P.V.C,8X9X200 | 20 | 92059-1150 | 2 | ||
| BAND,SHORT | 21 | 92072-030 | 6 | ||
| BAND,LONG | 22 | 92072-032 | 1 | ||
| BAND,WIRING HARNESS | 23 | 92072-056 | 1 | ||
| YUA BAT 12N10-3A-2 | 24 | 26012-1035 | 1 | YUASA (12N10-3A) | |
| BAND,BATTERY | 25 | 92072-1020 | 1 | ||
| LABEL, BATTERY CAUSON | 26 | 56022-157 | 1 |
| RELAY-TURN SIGNAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,MAIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,REAR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-20A | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUSE 10A | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,FUSE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,BATTERY GROUND | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE,MAGNETIC SWITCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HARNESS | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,P.V.C,8X9X200 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,SHORT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,WIRING HARNESS | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| YUA BAT 12N10-3A-2 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | YUASA (12N10-3A) |
| BAND,BATTERY | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL, BATTERY CAUSON | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
