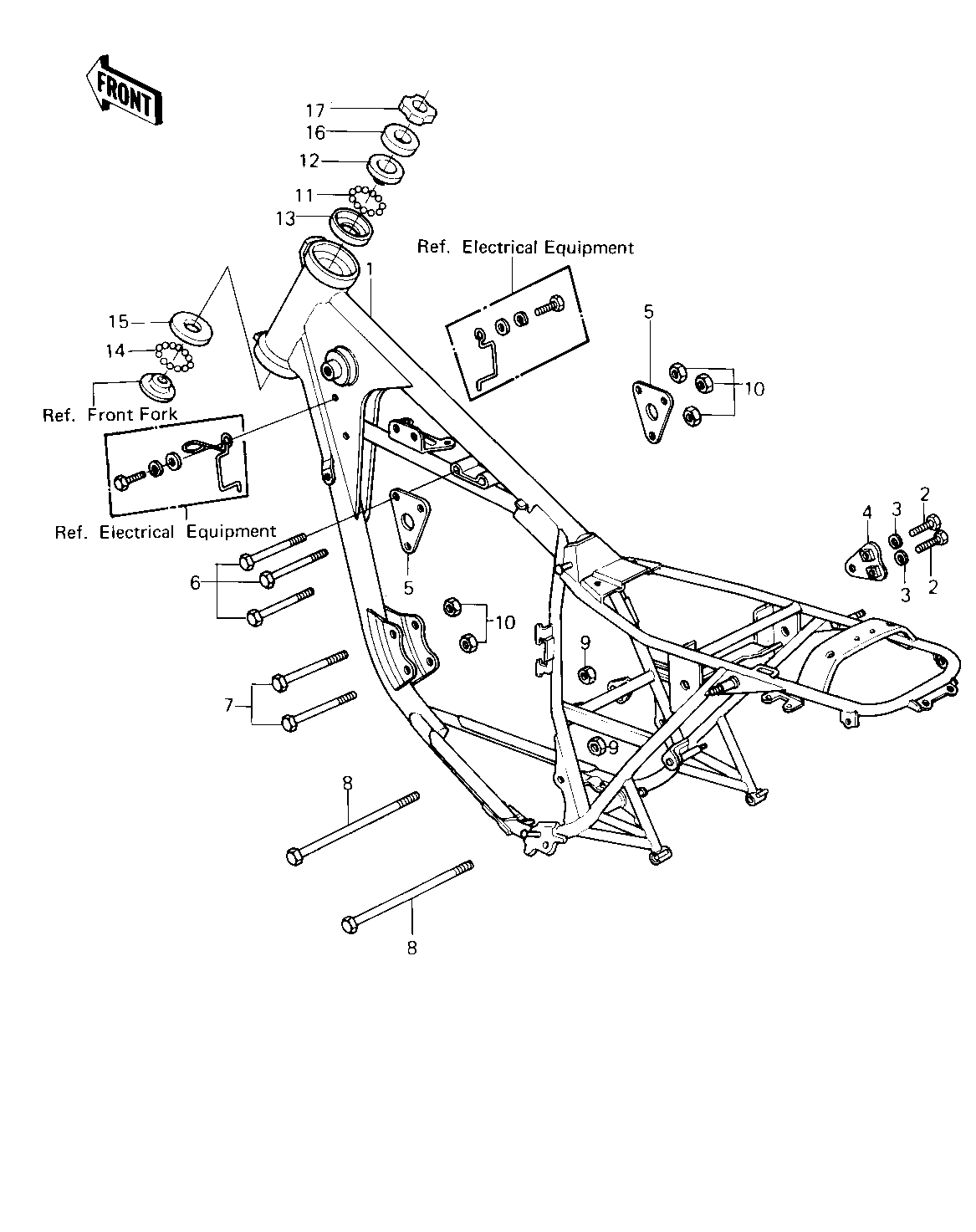

1980 KZ250 - FRAME/FRAME FITTINGS ('80 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME, | 1 | 32002-1113 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 2 | 115G0816 | 4 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 4 | ||
| BRACKET,ENGINE | 4 | 32029-1008 | 2 | ||
| PLATE,ENGINE HEAD | 5 | 32030-069 | 2 | ||
| BOLT,FLANGED,8X60 | 6 | 92001-1581 | 3 | ||
| BOLT FLANGED,8X70 | 7 | 92001-1583 | 2 | ||
| BOLT, FLANGED, 10X110 | 8 | 92001-1602 | 2 | ||
| NUT,LOCK,10MM | 9 | 92019-021 | 2 | ||
| NUT,LOCK,8MM | 10 | 92015-1124 | 5 | ||
| BALL STEEL 3/16' | 11 | 600A0600 | 23 | ||
| CONE,STRG STM BRG,UP | 12 | 92047-014 | 1 | ||
| RACE,STRG STM BEARING | 13 | 92048-009 | 1 | ||
| BALL STEEL 1/4' | 14 | 600A0800 | 19 | ||
| RACE STEERING BEARING | 15 | 92048-005 | 1 | ||
| CAP,STEERING STEM | 16 | 46098-012 | 1 | ||
| NUT,STEERING STEM | 17 | 92090-022 | 1 |
| FRAME, | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ENGINE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE,ENGINE HEAD | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X60 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT FLANGED,8X70 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT, FLANGED, 10X110 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 3/16' | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 23 |
| DESTINATION | |
| REMARKS | |
| CONE,STRG STM BRG,UP | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RACE,STRG STM BEARING | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BALL STEEL 1/4' | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 19 |
| DESTINATION | |
| REMARKS | |
| RACE STEERING BEARING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,STEERING STEM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
