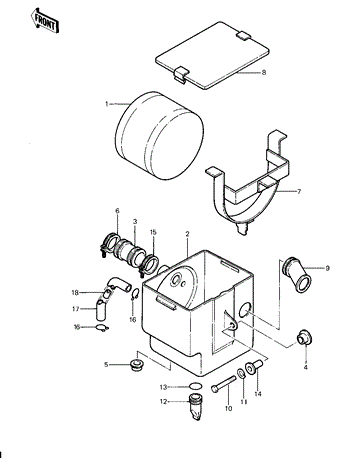

AIR CLEANER ('83 KLT200-A4/A4A)

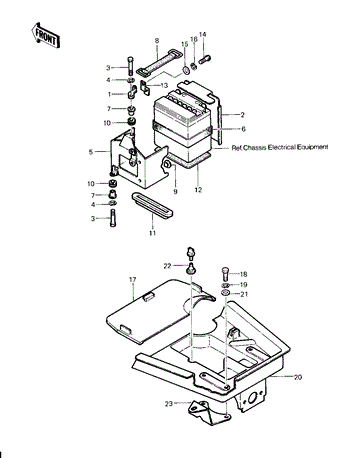

BATTERY CASE/TOOL CASE ('83 KLT200-A4/A4

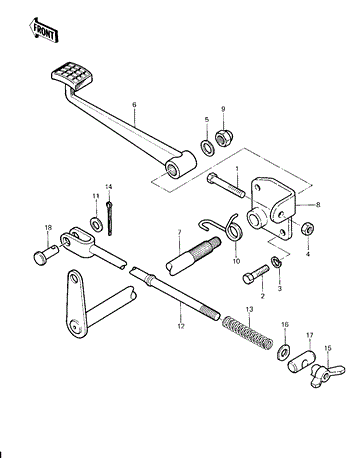

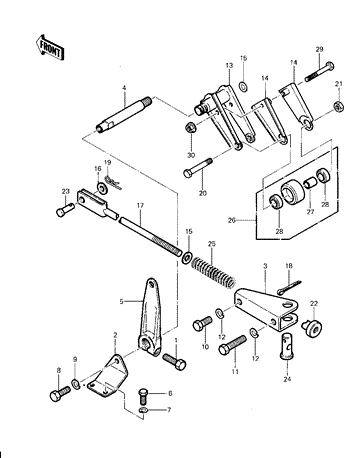

BRAKE PEDAL ('83 KLT200-A4/A4A)

CABLES ('83 KLT200-A4/A4A)

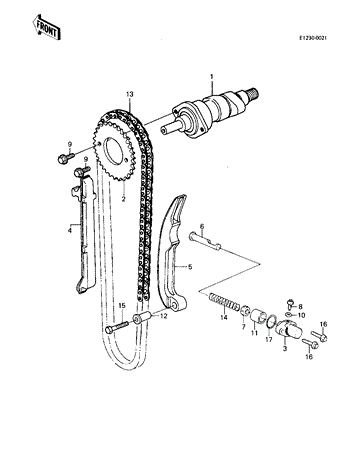

CAMSHAFT/CHAIN/TENSIONER ('83 KLT200-A4/

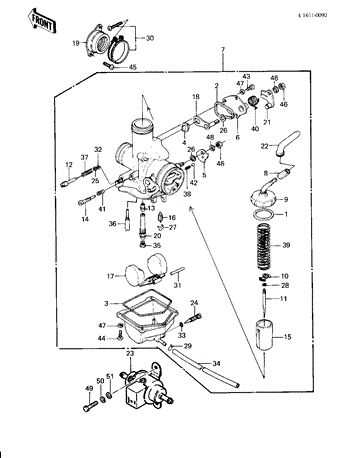

CHAIN TENSIONER ('83 KLT200-A4/A4A)

CHASSIS ELECTRICAL EQUIPMENT ('83 KLT200

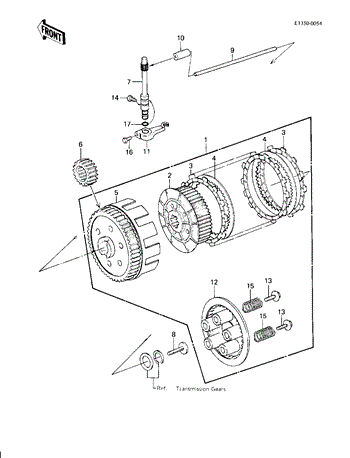

CLUTCH ('83 KLT200-A4/A4A)

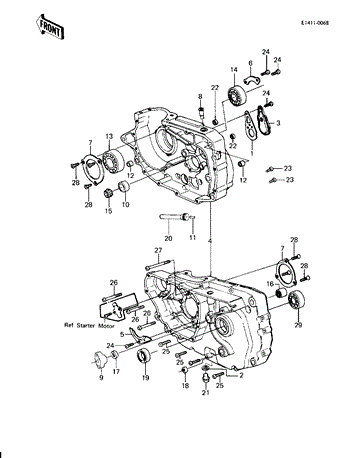

CRANKCASE ('83 KLT200-A4/A4A)

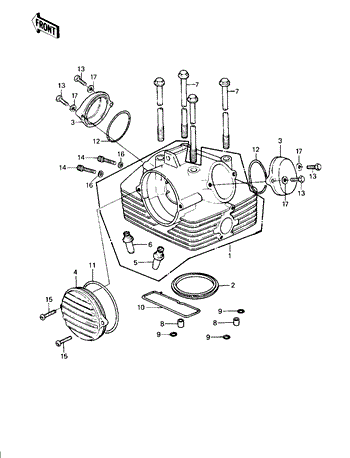

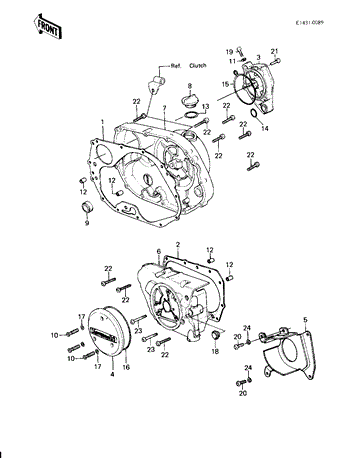

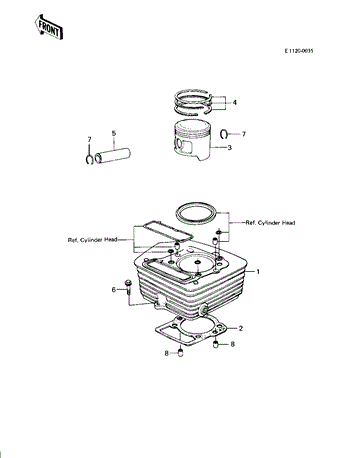

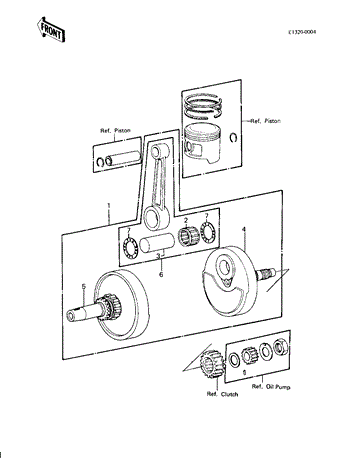

ENGINE COVERS ('83 KLT200-A4/A4A)

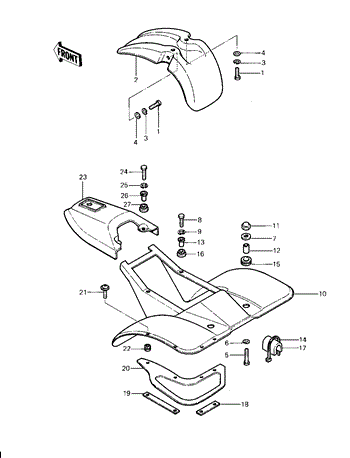

FENDERS/COVER ('83 KLT200-A4/A4A)

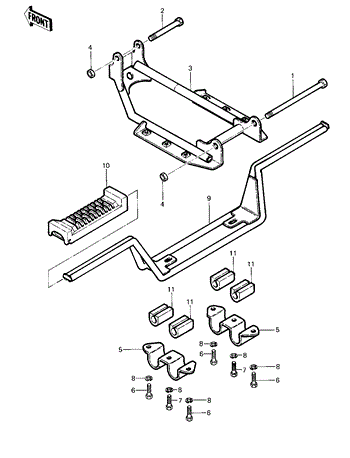

FOOTRESTS ('83 KLT200-A4/A4A)

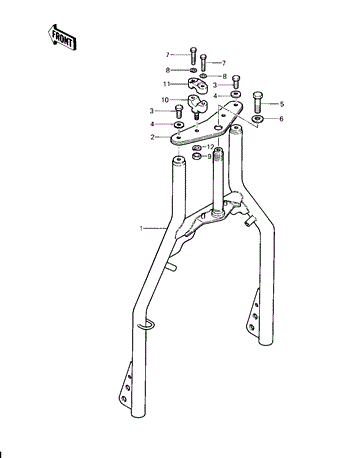

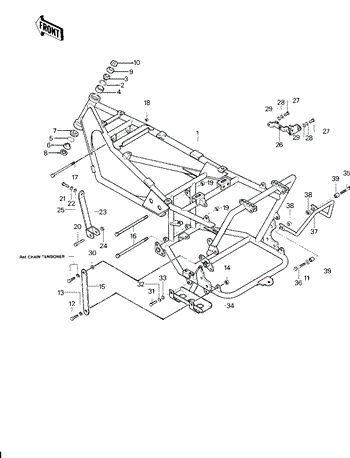

FRONT FORK ('83 KLT200-A4/A4A)

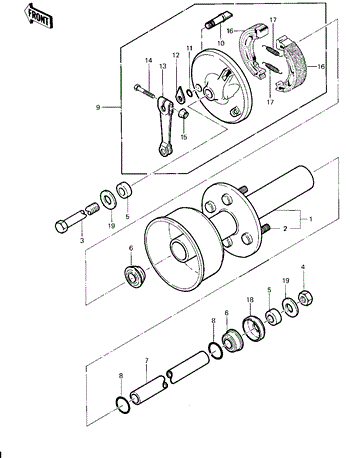

FRONT HUB/BRAKE ('83 KLT200-A4/A4A)

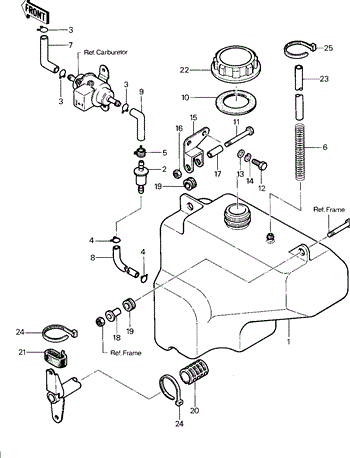

FUEL TANK ('83 KLT200-A4/A4A)

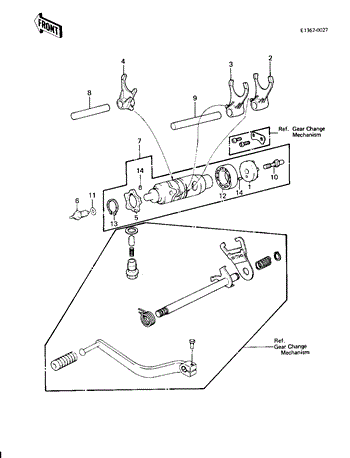

GEAR CHANGE DRUM & FORKS ('83 KLT200-A4/

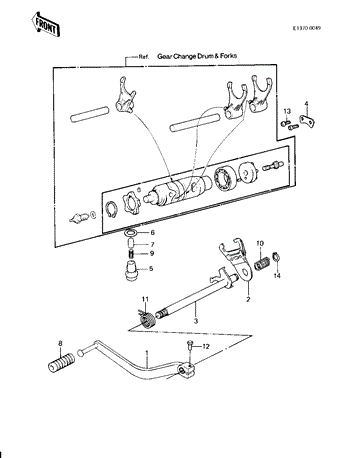

GEAR CHANGE MECHANISM ('83 KLT200-A4/A4A

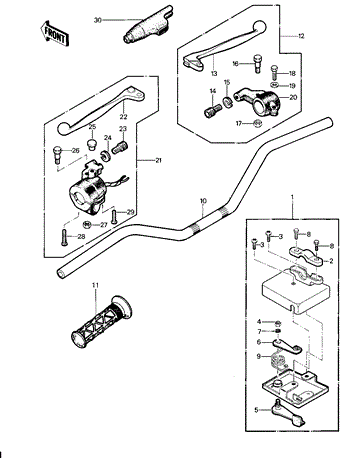

HANDLEBAR ('83 KLT200-A4/A4A)

HEADLIGHT/TAILLIGHT ('83 KLT200-A4/A4A)

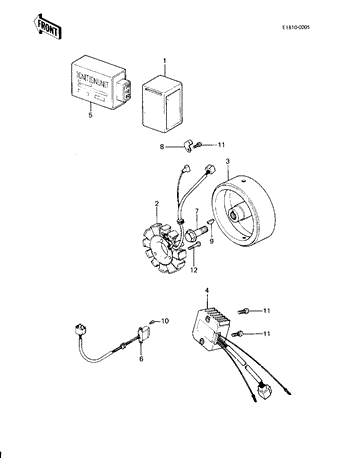

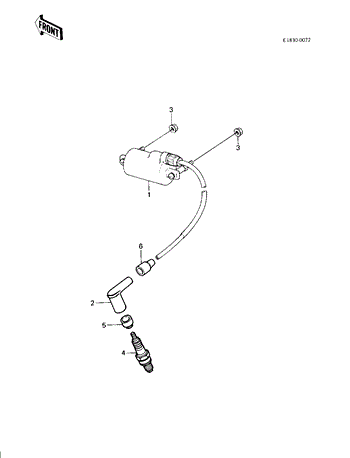

IGNITION/GENERATOR/REGULATOR

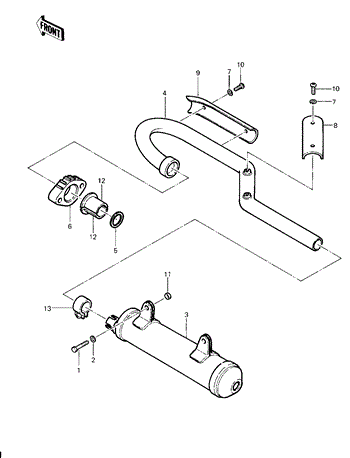

MUFFLER ('83 KLT200-A4/A4A)

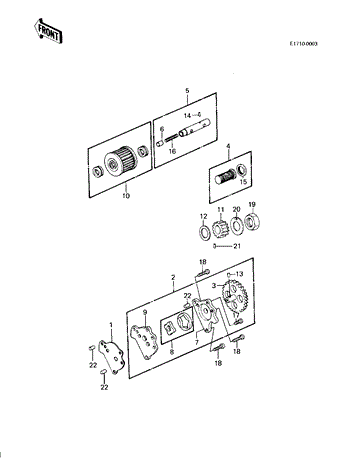

OIL PUMP/OIL FILTER ('83 KLT200-A4/A4A)

OWNER TOOLS ('83 KLT200-A4/A4A)

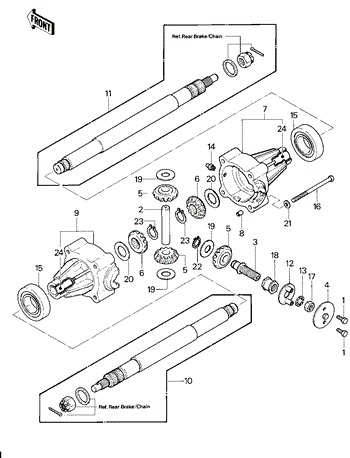

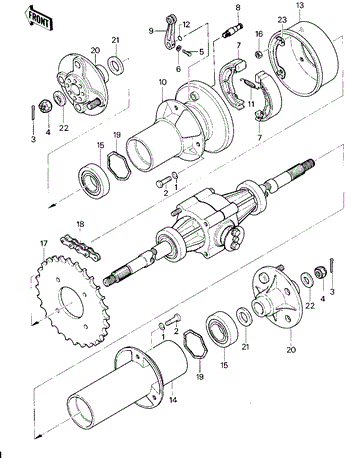

REAR AXLE ('83 KLT200-A4/A4A)

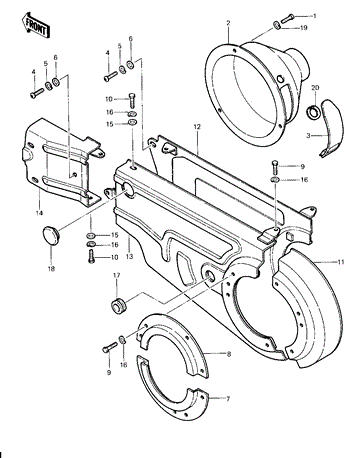

REAR BRAKE/CHAIN ('83 KLT200-A4/A4A)

REFLECTORS (CANADA) ('83 KLT200-A4/A4A)

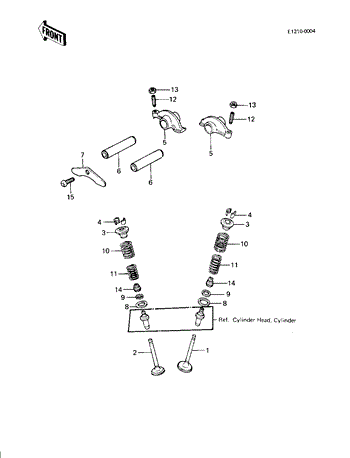

ROCKER ARMS/VALVES ('83 KLT200-A4/A4A)

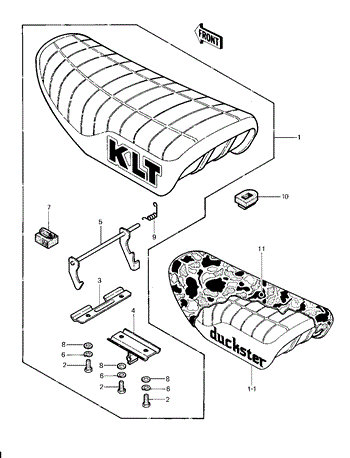

SEAT ('83 KLT200-A4/A4A)

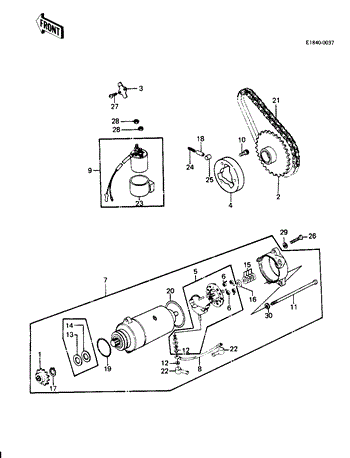

STARTER MOTOR/STARTER CLUTCH

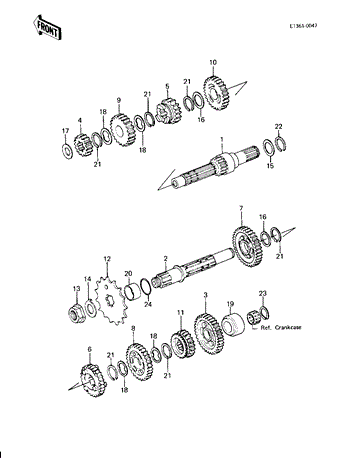

TRANSMISSION ('83 KLT200-A4/A4A)

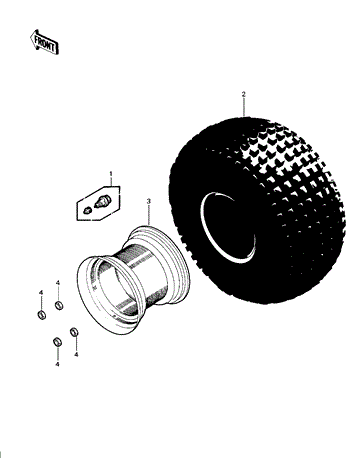

WHEELS/TIRES ('83 KLT200-A4/A4A)
