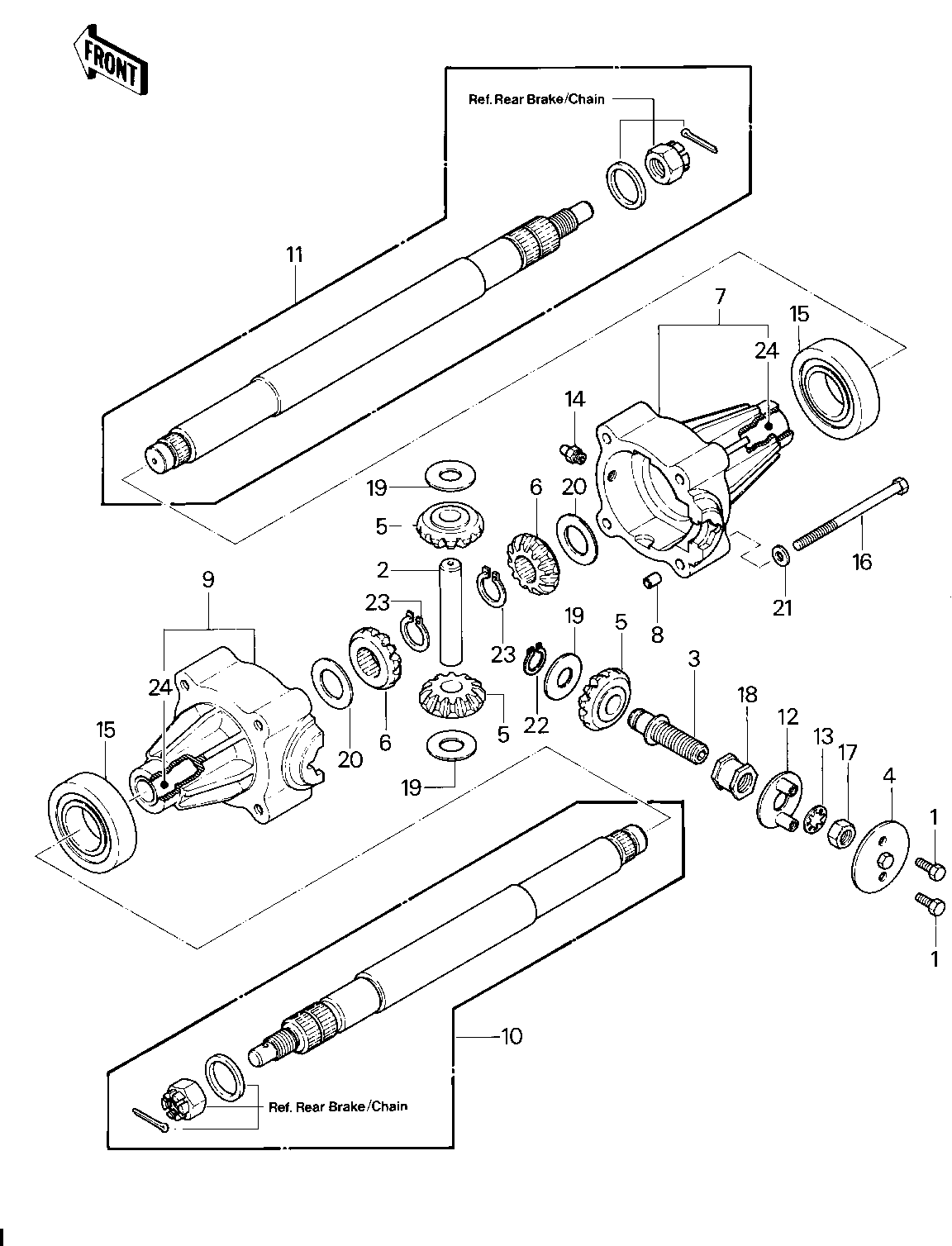

1983 Duckster - REAR AXLE ('83 KLT200-A4/A4A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,FLANGED,6X12 | 1 | 130G0612 | 2 | ||
| SHAFT | 2 | 13107-4001 | 1 | ||
| SHAFT | 3 | 13107-4009 | 1 | ||
| PLATE LOCKING | 4 | 13169-4011 | 1 | ||
| GEAR | 5 | 16085-4003 | 3 | ||
| GEAR | 6 | 16085-4004 | 2 | ||
| CASE-GEAR,RIGHT | 7 | 32099-4010 | 1 | ||
| PIN,10.1X12X14 | 8 | 92043-4009 | 4 | ||
| CASE-GEAR,LEFT | 9 | 32099-4009 | 1 | ||
| AXLE ASSY,LH 13.45" | 10 | 41067-4009 | 1 | ||
| AXLE ASSY,RH 17.24" | 11 | 41067-4008 | 1 | ||
| FLANGE,AXLE | 12 | 41086-4006 | 1 | ||
| WASHER,TOOTHED,16M/M | 13 | 463H1600 | 1 | ||
| NIPPLE,GREASE | 14 | 49001-4001 | 1 | ||
| BEARING | 15 | 601A6008UU | 2 | ||
| BOLT,10X103 | 16 | 92001-1842 | 4 | ||
| NUT | 17 | 92015-4009 | 1 | ||
| NUT | 18 | 92015-4013 | 1 | ||
| WASHER | 19 | 92022-4008 | 3 | ||
| WASHER | 20 | 92022-4009 | 2 | ||
| WASHER PLAIN 10MM | 21 | 410B1000 | 4 | ||
| RING | 22 | 92033-4001 | 1 | ||
| RING,SNAP | 23 | 92033-4002 | 2 | ||
| BUSHING | 24 | 92028-4003 | 2 |
| BOLT,FLANGED,6X12 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE LOCKING | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GEAR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE-GEAR,RIGHT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,10.1X12X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CASE-GEAR,LEFT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE ASSY,LH 13.45" | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE ASSY,RH 17.24" | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLANGE,AXLE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,TOOTHED,16M/M | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NIPPLE,GREASE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X103 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,SNAP | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
