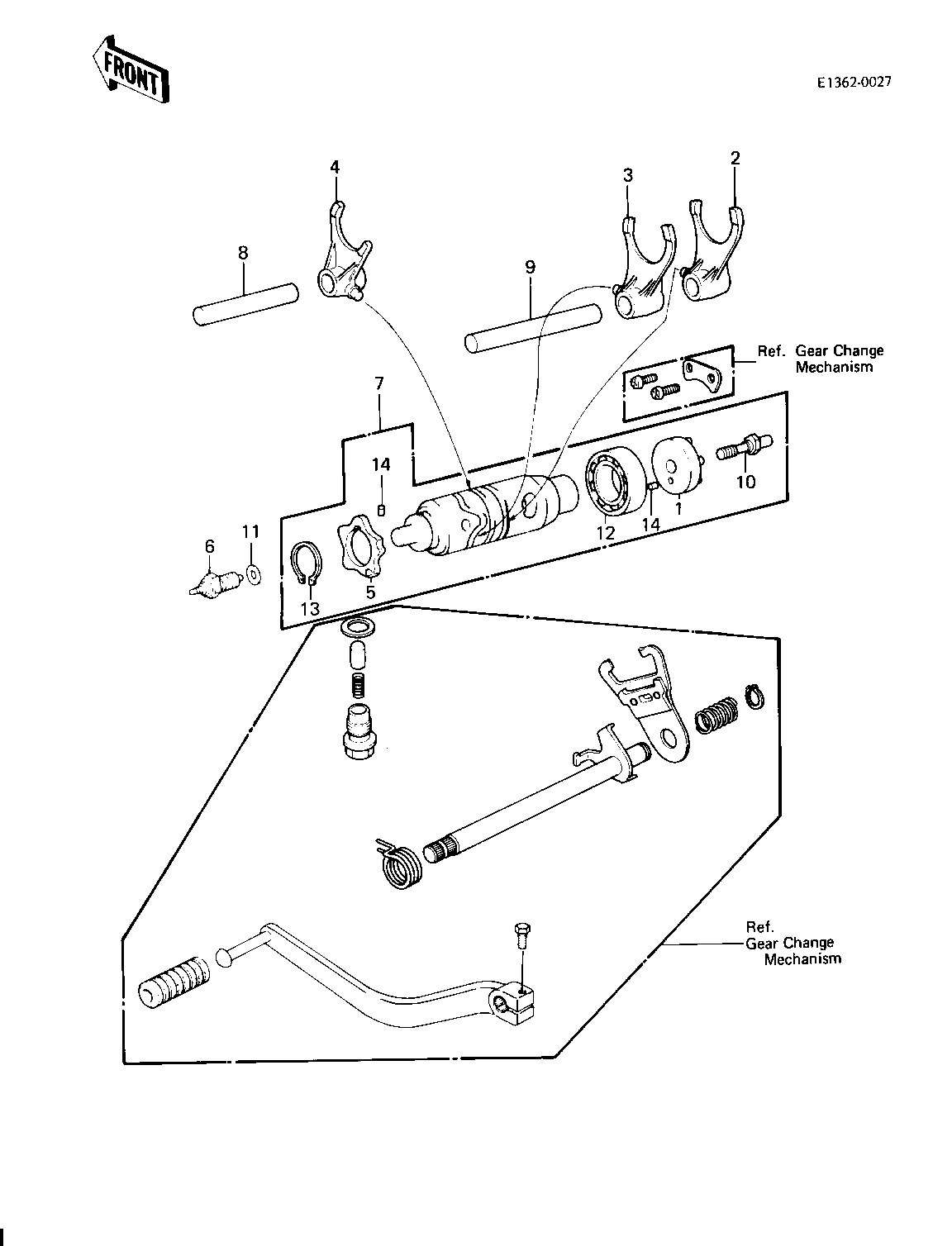

1983 Duckster - GEAR CHANGE DRUM & FORKS ('83 KLT200-A4/
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE,GEAR CHANGE | 1 | 13142-019 | 1 | ||
| SHIFT FORK,LOW | 2 | 13140-073 | 1 | ||
| SHIFT FORK,2ND&3RD | 3 | 13140-074 | 1 | ||
| SHIFT FORK,4TH&TOP | 4 | 13140-075 | 1 | ||
| DISK,SHIFT DRUM | 5 | 13145-1002 | 1 | ||
| SWITCH,NEUTRAL | 6 | 13151-1007 | 1 | ||
| DRUM ASSY,GEAR SHIFT | 7 | 13239-1036 | 1 | ||
| ROD,SHIFT 71.7M/M | 8 | 49047-1002 | 1 | ||
| ROD,SHIFT 93.7M/M | 9 | 49047-1003 | 1 | ||
| BOLT | 10 | 92001-166 | 1 | ||
| GASKET CHECK VALVE | 11 | 92065-058 | 1 | ||
| BEARING,BALL,#6905 | 12 | 92045-036 | 1 | ||
| CIRCLIP 24MM | 13 | 480J2400 | 1 | ||
| PIN-DOWEL,4X6 | 14 | 610A0406 | 2 |
