Parts Diagrams |

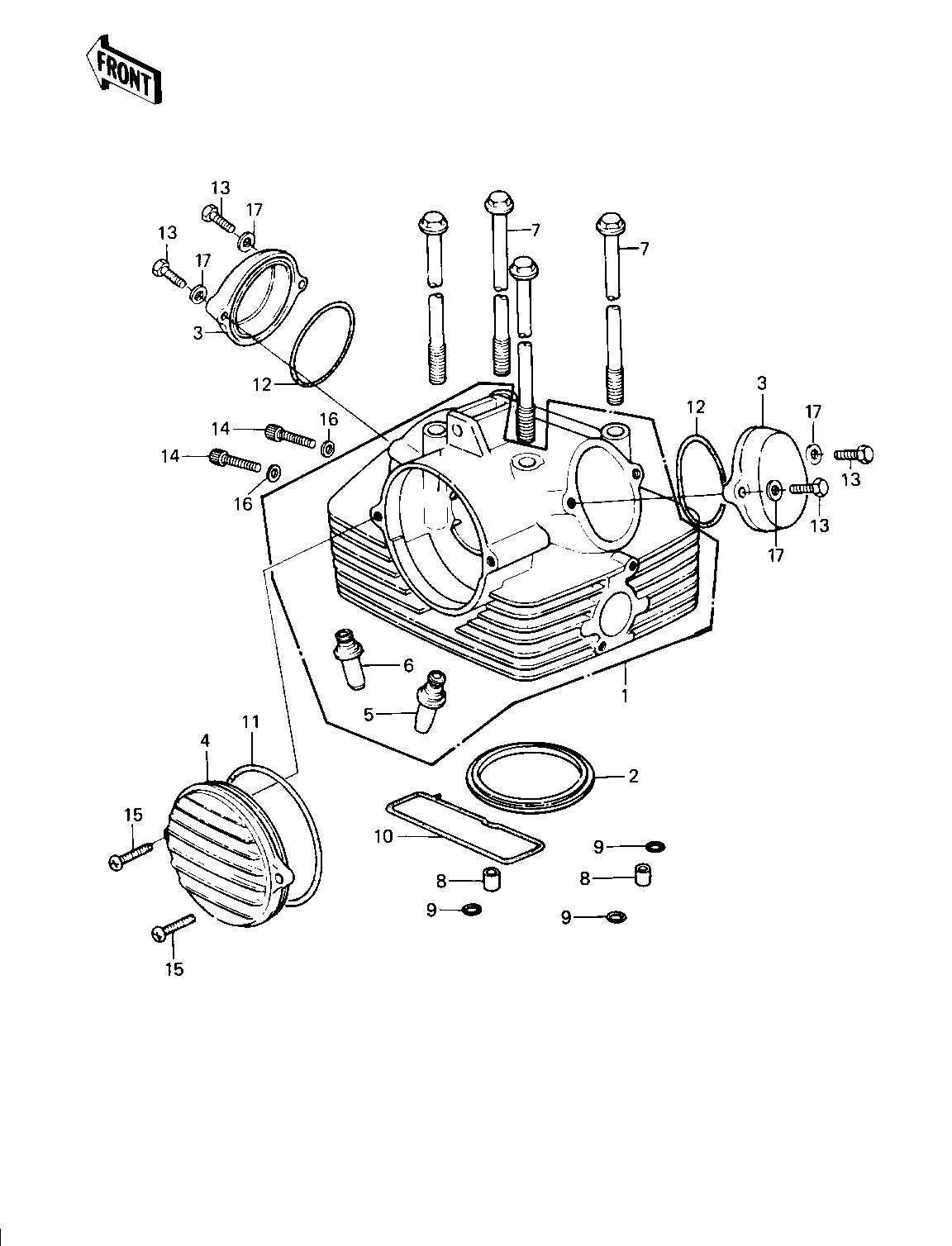

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER HEAD | 1 | 11002-5023 | 1 | ||
| GASKET,CYLINDER HEAD | 2 | 11004-1004 | 1 | ||
| CAP,ROCKER,FLAT BLACK | 3 | 11012-1078 | 2 | ||
| COVER,CAM,FLAT BLACK | 4 | 14025-1103 | 1 | ||
| GUIDE,INLET VALVE | 5 | 12013-003 | 1 | ||
| GUIDE,EXHAUST VALVE | 6 | 49002-1010 | 1 | ||
| BOLT,8X233 | 7 | 92003-220 | 4 | ||
| PIN,DOWEL,10X8.2X14 | 8 | 92043-1037 | 2 | ||
| RING-O,10MM | 9 | 92055-1149 | 3 | ||
| "0" RING | 10 | 92055-105 | 1 | ||
| "O" RING,99M/M | 11 | 92055-107 | 1 | ||
| "0" RING,53.5MM | 12 | 92055-112 | 2 | ||
| BOLT-UPSET | 13 | 112G0625 | 4 | ||
| BOLT,SOCKET,8X30 | 14 | 120P0830 | 2 | ||
| SCREW PAN HEAD 6X25 | 15 | 220B0625 | 2 | ||
| WASHER PLAIN 8MM | 16 | 410B0800 | 2 | ||
| WASHER PLAIN 6MM | 17 | 411B0600 | 4 |
| CYLINDER HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER HEAD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,ROCKER,FLAT BLACK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,CAM,FLAT BLACK | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INLET VALVE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,EXHAUST VALVE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X233 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN,DOWEL,10X8.2X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,10MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,99M/M | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,53.5MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
