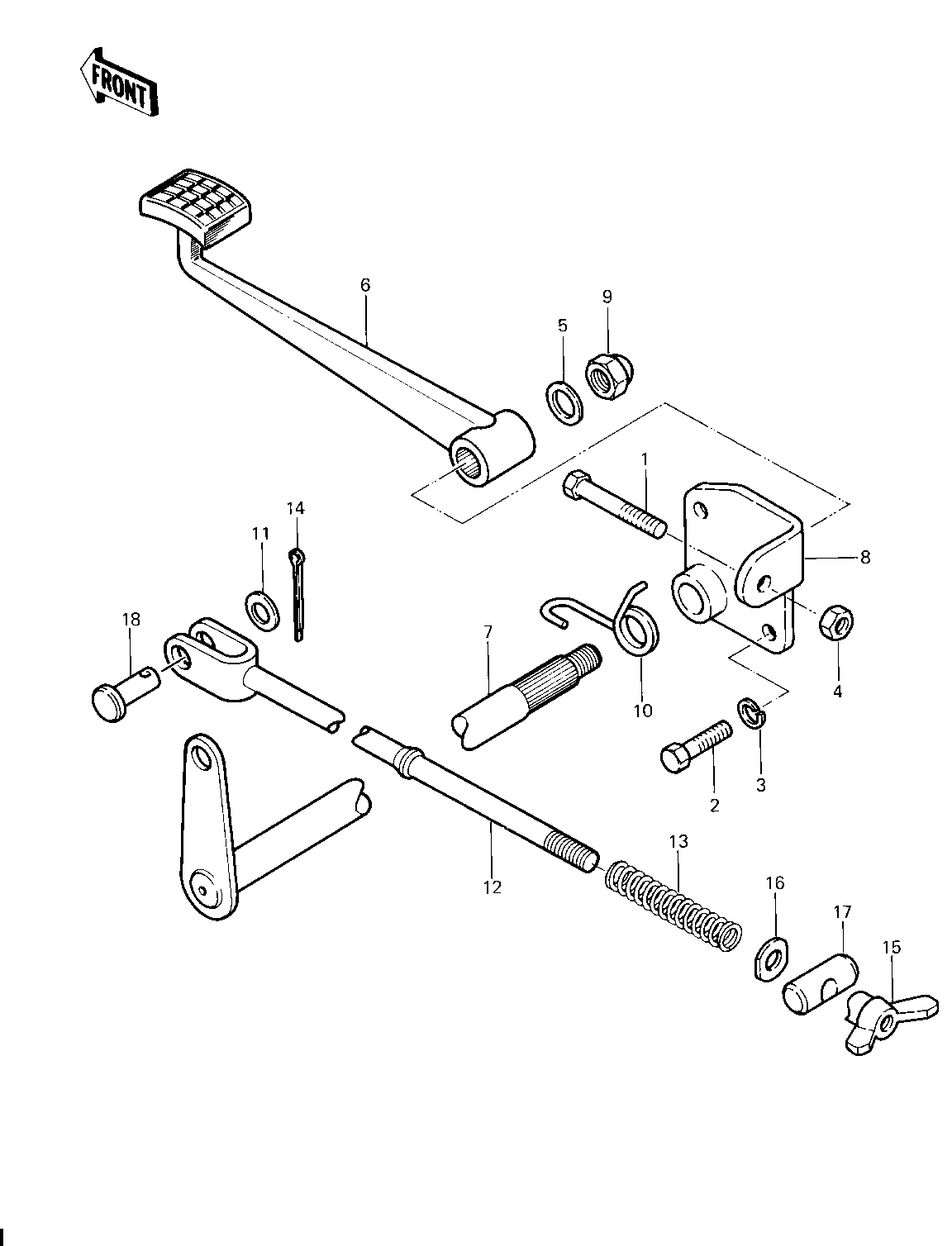

1983 Duckster - BRAKE PEDAL ('83 KLT200-A4/A4A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET | 1 | 112G0625 | 1 | ||
| BOLT-UPSET 6X14 | 2 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
| NUT 6MM | 4 | 311B0600 | 1 | ||
| WASHER PLAIN 10MM | 5 | 411B1000 | 1 | ||
| SHAFT-BRAKE | 7 | 43004-4001 | 1 | ||
| HOLDER-BRAKE | 8 | 43034-4001 | 1 | ||
| NUT SHOCK ABSORBER | 9 | 92020-003 | 1 | ||
| SPRING,BRAKE PEDAL | 10 | 92081-1337 | 1 | ||
| WASHER PLAIN 8MM | 11 | 410B0800 | 1 | ||
| ROD-BRAKE | 12 | 43011-4005 | 1 | ||
| SPRING,BRAKE ROD | 13 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 14 | 550D2015 | 1 | ||
| NUT,WING,6M/M | 15 | 92015-4004 | 1 | ||
| WASHER, BRAKE ROD | 16 | 92022-4003 | 1 | ||
| PIN-BRAKE ROD | 17 | 92043-065 | 1 | ||
| PIN-BRAKE ROD FITTING | 18 | 92043-064 | 1 |
