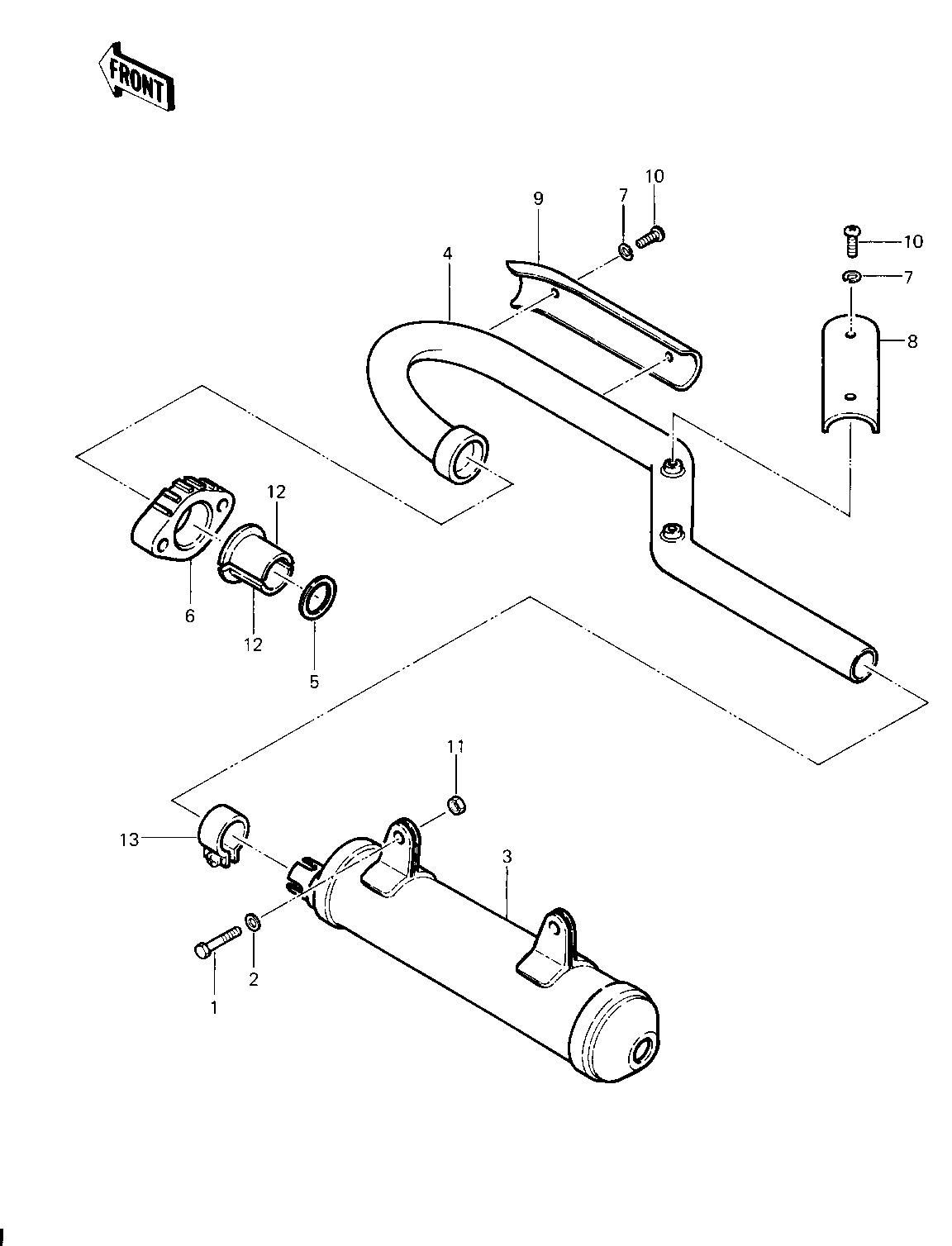

1983 Duckster - MUFFLER ('83 KLT200-A4/A4A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,8X20 | 1 | 115G0820 | 1 | ||
| WASHER PLAIN 8MM | 2 | 410B0800 | 1 | ||
| MUFFLER | 3 | 18001-1451 | 1 | ||
| PIPE-EXHAUST | 4 | 18049-1131 | 1 | ||
| GASKET,EXHAUST PIPE H | 5 | 11009-1866 | 1 | ||
| HOLDER EXHAUST PIPE | 6 | 18069-1014 | 1 | ||
| WASHER SPRING 8MM | 7 | 461F0800 | 4 | ||
| COVER-EXHAUST PIPE | 8 | 49107-1002 | 1 | ||
| COVER-EXHAUST PIPE | 9 | 49107-1003 | 1 | ||
| SCREW | 10 | 92009-1054 | 4 | ||
| NUT-8MM | 11 | 92015-1143 | 1 | ||
| INSERT,EXHAUST PIPE | 12 | 92027-278 | 2 | ||
| CLAMP,MUFFLER FITTING | 13 | 92037-1035 | 1 |
