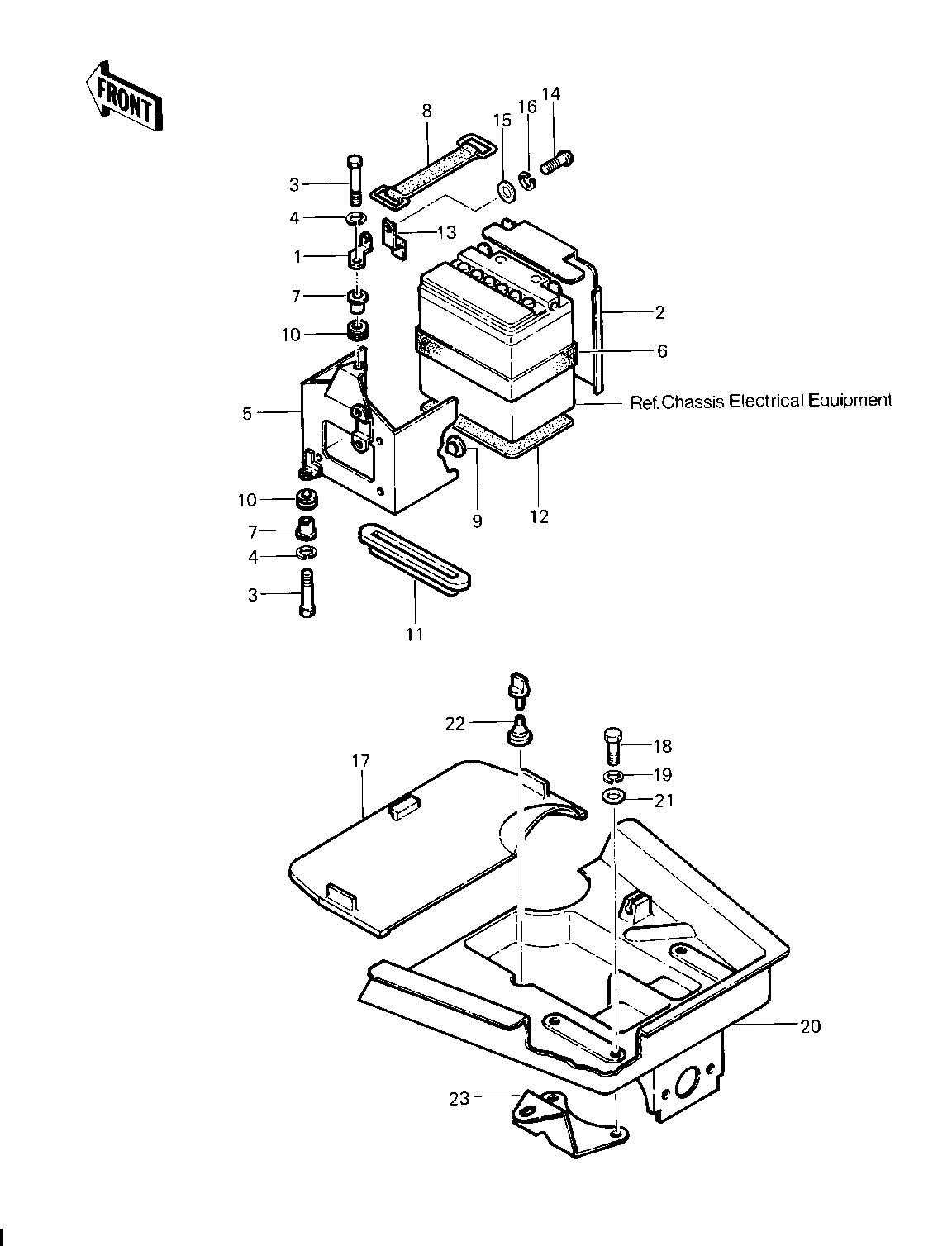

1983 Duckster - BATTERY CASE/TOOL CASE ('83 KLT200-A4/A4
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRAKET | 1 | 11034-4051 | 1 | ||
| COVER | 2 | 14025-4007 | 1 | ||
| BOLT-UPSET,6X20 | 3 | 112G0620 | 2 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 2 | ||
| CASE-BATTERY | 5 | 32097-4004 | 1 | ||
| MAT-BATTERY SIDE | 6 | 32103-023 | 1 | ||
| COLLAR | 7 | 92027-1045 | 2 | ||
| BAND BATTERY | 8 | 92072-006 | 1 | ||
| DAMPER RUBBER | 9 | 92075-078 | 4 | ||
| DAMPER RUBBER | 10 | 92075-277 | 2 | ||
| DAMPER RUBBER | 11 | 92075-280 | 1 | ||
| DAMPER,BATTRY CASE | 12 | 92075-4019 | 1 | ||
| HOLDER-BATTERY | 13 | 13091-4006 | 1 | ||
| SCREW PAN HEAD 6X16 | 14 | 220B0616 | 1 | ||
| WASHER PLAIN 6MM | 15 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 16 | 461F0600 | 1 | ||
| COVER-TOOL CASE | 17 | 14025-4022 | 1 | ||
| BOLT-UPSET | 18 | 112G0618 | 4 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 4 | ||
| CASE,TOOL | 20 | 32098-4002 | 1 | ||
| WASHER 6.5X20X1.6T | 21 | 92022-125 | 4 | ||
| BAND,HEAD LAMP | 22 | 92072-077 | 1 | ||
| BRACKET | 23 | 32065-4008 | 2 |
