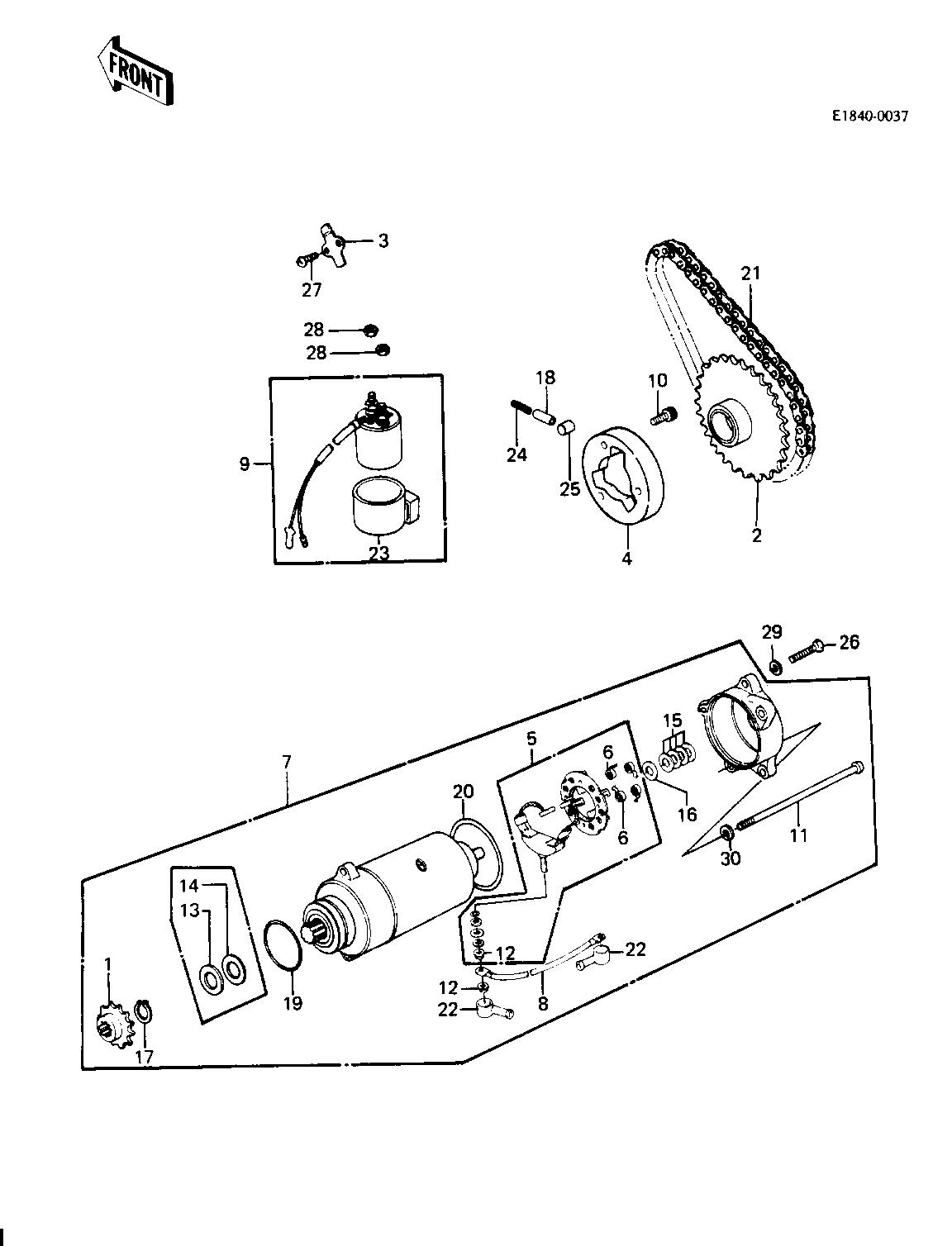

1983 Duckster - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,STARTER MOTO 1 12046-1004 1
SPROCKET,STARTER CLUT 2 12046-1107 1
PLATE 3 13169-1010 1
CLUTCH,STARTER 4 13194-008 1
BRUSH,CARBON 5 21039-1007 1 USE FOR 21163-1021
UNAVAILABLE IN PRICE BOOK 5 23039-1006 1 USE FOR 21163-1036
SPRING CARBON BRUSH 6 21040-004 4 USE FOR 21163-1021
SPRING-BRUSH 6 21040-1003 4 USE FOR 21163-1036
STARTER-ELECTRIC 7 21163-1036 1
UNAVAILABLE IN PRICE BOOK 7 21165-1036 1 REF # S 8 & 22 NOT INCL'D
WIRE-LEAD,STARTER MOT 8 26011-1201 1 USE FOR 21163-1036
WIRE-LEAD,STARTER MOT 8 26011-1201 1
SWITCH ASSY,MAGNETIC 9 21164-005 1
BOLT 10 120P0816 3
SCREW,PAN HEAD,6X119 11 92009-1097 2 USE FOR 21163-1021
BOLT,HEX HEAD,10X72 11 92001-1049 2 USE FOR 21163-1036
NUT-6MM 12 92015-1078 2
WASHER,PLAIN,14MM 13 21025-008 1 NOT USED WITH 21163-1036
WASHER PLAIN 14MM 14 21025-009 1 NOT USED WITH 21163-1036
WASHER,THRUST,0.2T 15 21025-011 AR
WASHER,THRUST,0.8T 16 92022-1132 1
CIRCLIP,13M/M 17 92033-037 1
PIN 18 92043-132 3
"0" RING,42.8MM 19 21027-005 1
"0" RING,STARTER MOTR 20 92055-1086 1
CHAIN,DYNAMO 21 92057-1009 1
CAP,STARTING MOTOR 22 21017-020 2
DAMPER MAG SWITCH SHK 23 21064-002 1
SPRING,COIL 24 92081-159 3
ROLLER 25 92122-006 3
BOLT-UPSET 26 112G0625 2
SCREW PAN HEAD 6X14 27 220B0614 1
NUT,6M/M 28 311G0600 2
WASHER PLAIN 6MM 29 411B0600 2
WASHER SPRING 6MM 30 461F0600 2
