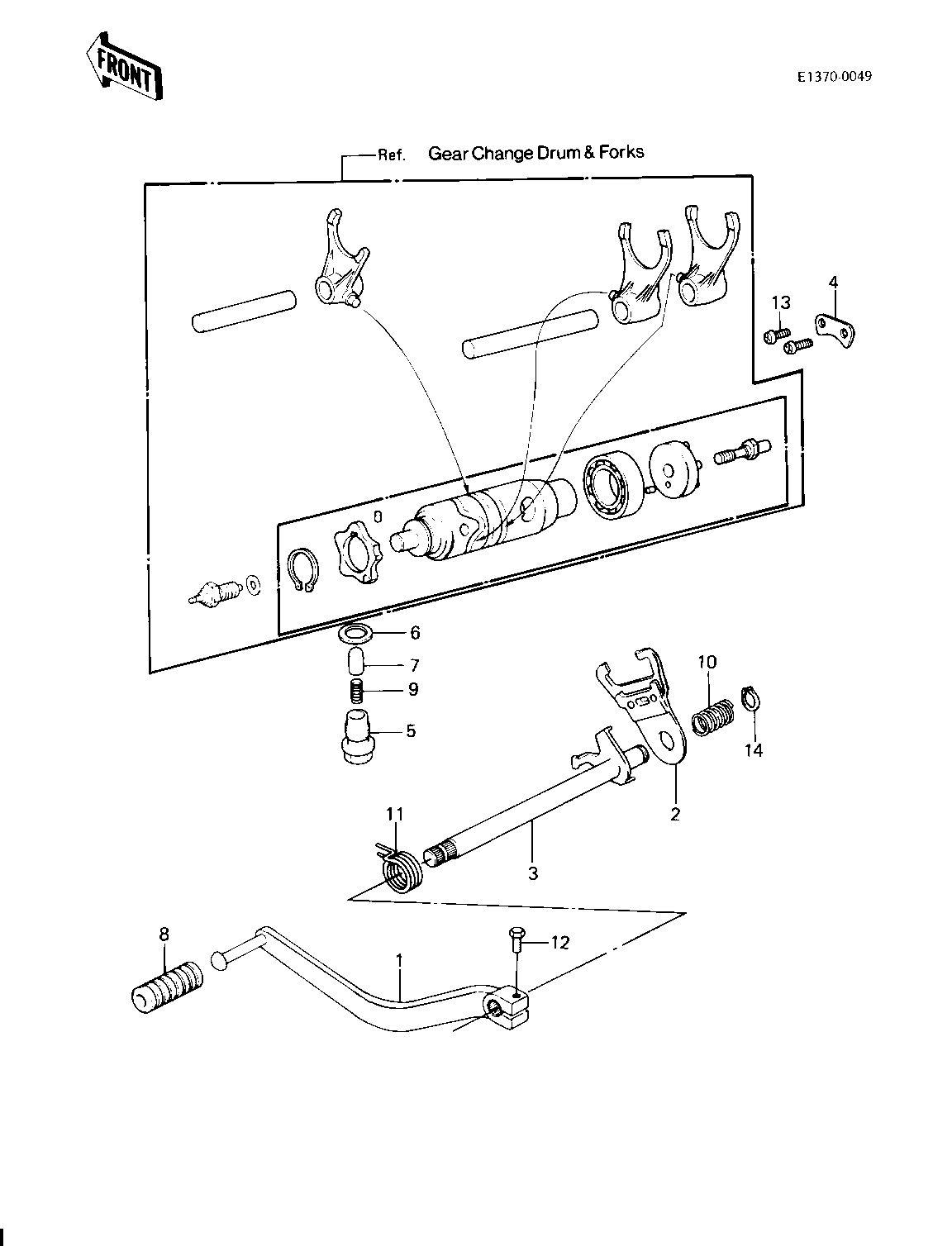

1983 Duckster - GEAR CHANGE MECHANISM ('83 KLT200-A4/A4A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,GEAR SHIFT | 1 | 13156-1070 | 1 | ||
| LEVER ASSY,GEAR SHIFT | 2 | 13161-044 | 1 | ||
| LEVER ASSY,GEAR SHIFT | 3 | 13161-1013 | 1 | ||
| PLATE,GEAR CHANGE | 4 | 13169-014 | 1 | ||
| BOLT,NEUTRAL POSITION | 5 | 92001-182 | 1 | ||
| WASHER,PLAIN | 6 | 92022-324 | 1 | ||
| PIN,NEUTRAL POSITIONG | 7 | 92043-131 | 1 | ||
| DAMPER,CHANGE PEDAL | 8 | 92160-1108 | 1 | ||
| SPRING | 9 | 92081-112 | 1 | ||
| SPRING,COIL | 10 | 92081-149 | 1 | ||
| SPRING,CHG PEDL RTRN | 11 | 92083-028 | 1 | ||
| BOLT-UPSET,6X20 | 12 | 112G0620 | 1 | ||
| SCREW PAN HEAD 6X14 | 13 | 220B0614 | 2 | ||
| CIRCLIP,13MM | 14 | 480J1300 | 1 |
