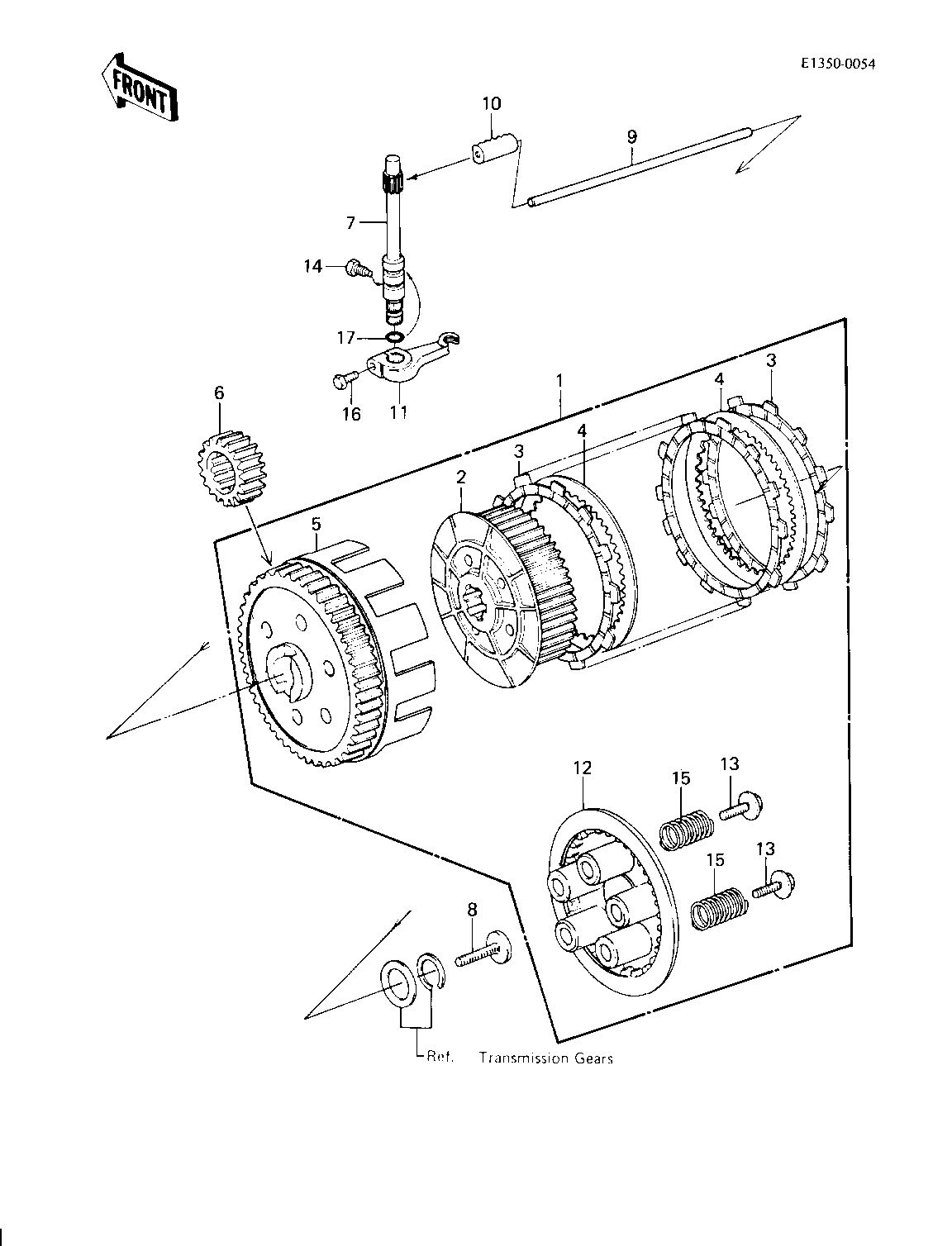

1983 Duckster - CLUTCH ('83 KLT200-A4/A4A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 1 | 13081-1052 | 1 | ||
| HUB,CLUTCH | 2 | 13087-1001 | 1 | ||
| PLATE,CLUTCH FRICTION | 3 | 13088-1008 | 7 | ||
| PLATE CLUTCH STEEL | 4 | 13089-013 | 6 | ||
| HOUSING-COMP-CLUTCH | 5 | 13095-1032 | 1 | ||
| GEAR-PRIMARY,19T | 6 | 13097-1039 | 1 | ||
| SHAFT,CLUTCH RELEASE | 7 | 13106-006 | 1 | ||
| PUSHER-CLTCH SPRG PLT | 8 | 13116-016 | 1 | ||
| ROD,CLUTCH PUSH,LONG | 9 | 13116-1002 | 1 | ||
| ROD,CLUTCH PUSH | 10 | 13116-1040 | 1 | ||
| LEVER,CLUTCH RELEASE | 11 | 13103-028 | 1 | ||
| PLATE,CLUTCH OPERATNG | 12 | 13187-1005 | 1 | ||
| BOLT,CLUTCH SPRING,6X | 13 | 92001-1576 | 5 | ||
| BOLT,CLUTCH RELEASE | 14 | 92003-130 | 1 | ||
| SPRING-CLUTCH | 15 | 92081-083 | 5 | ||
| BOLT-UPSET | 16 | 112G0618 | 1 | ||
| "0" RING, 10MM | 17 | 670B2010 | 1 |
