Equipment illustrated and specification may vary to meet individual markets.

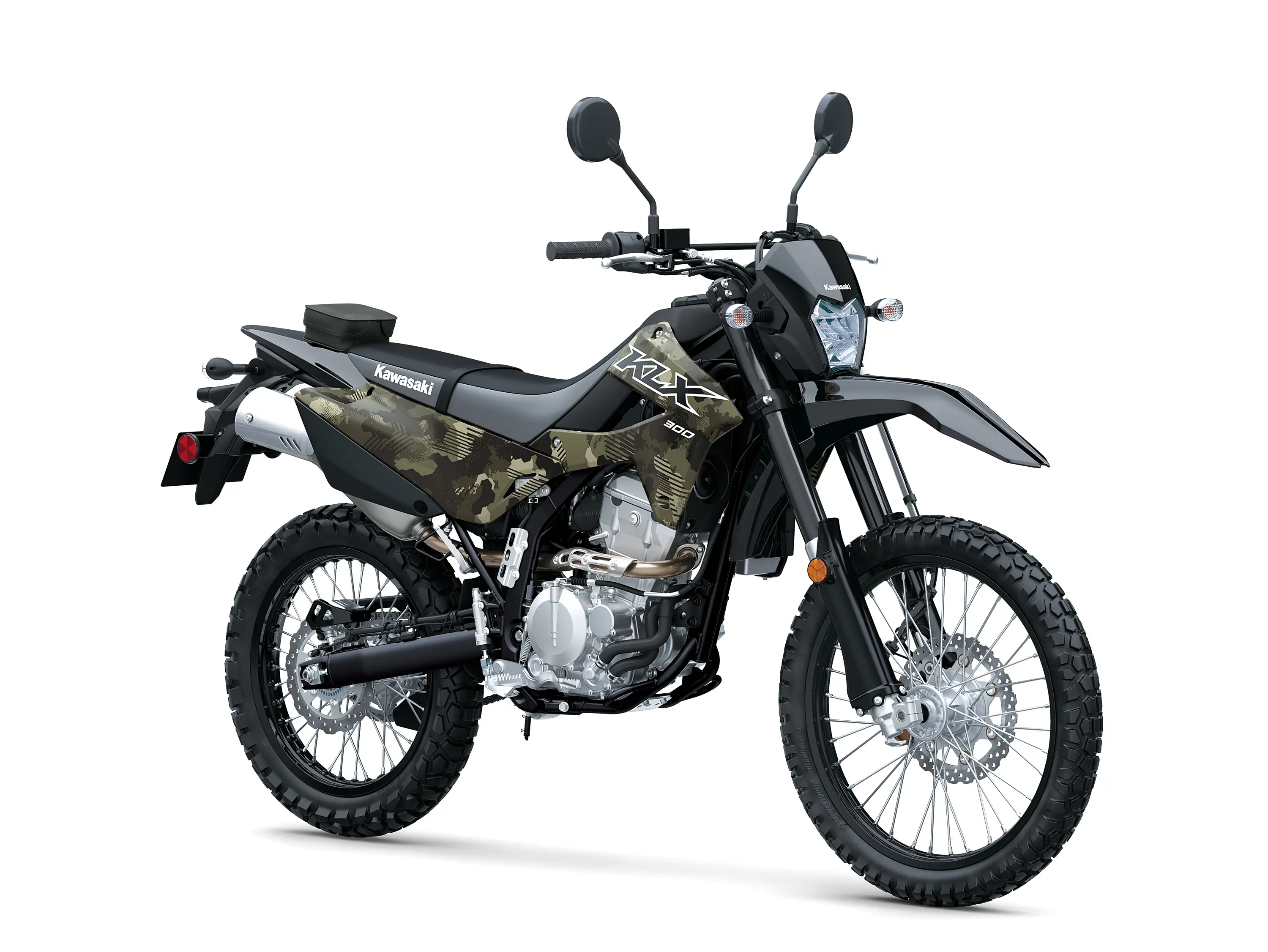

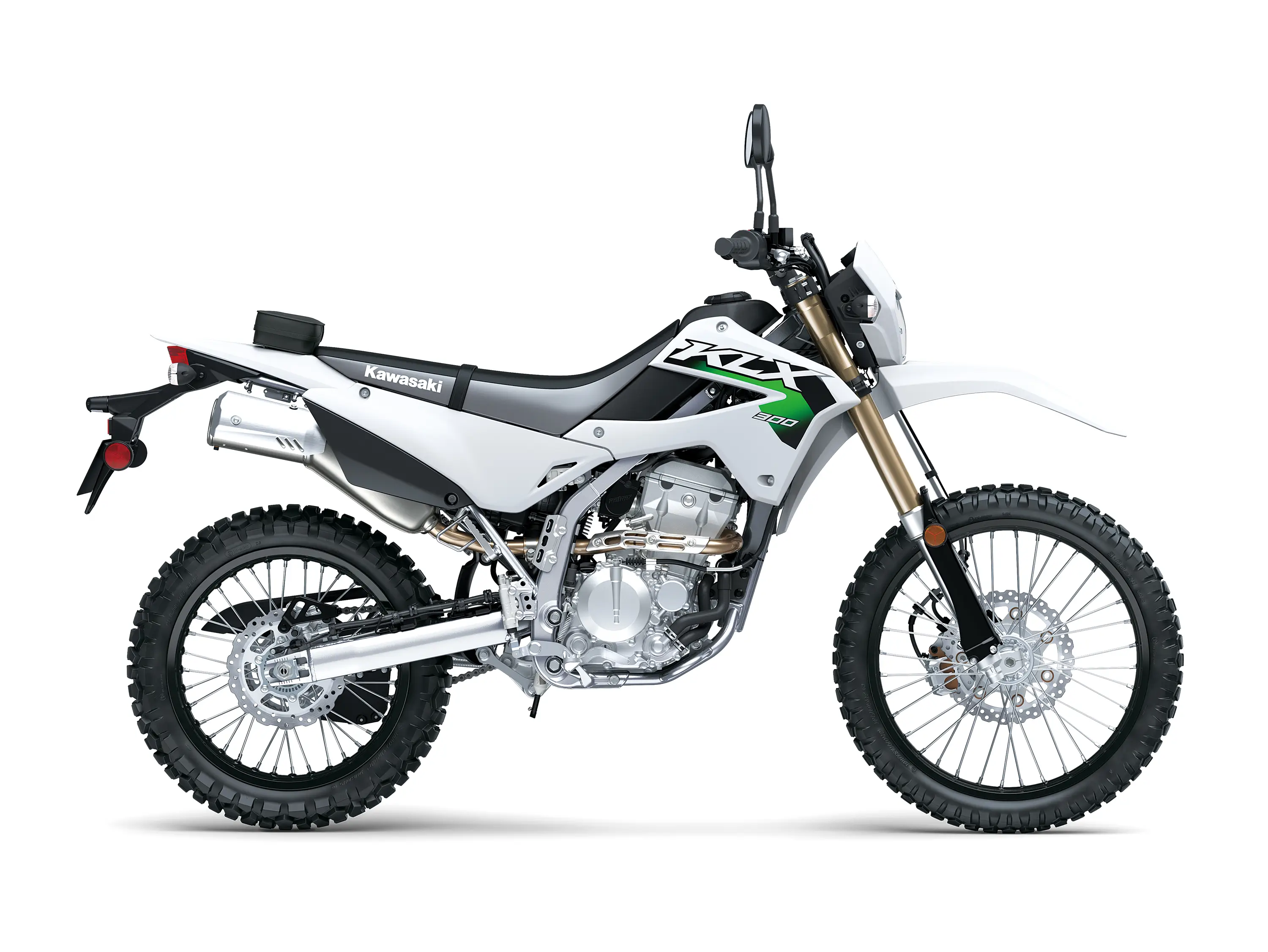

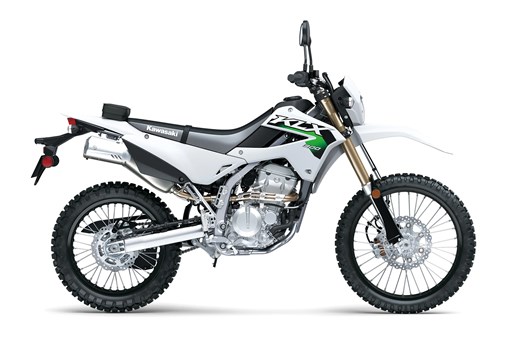

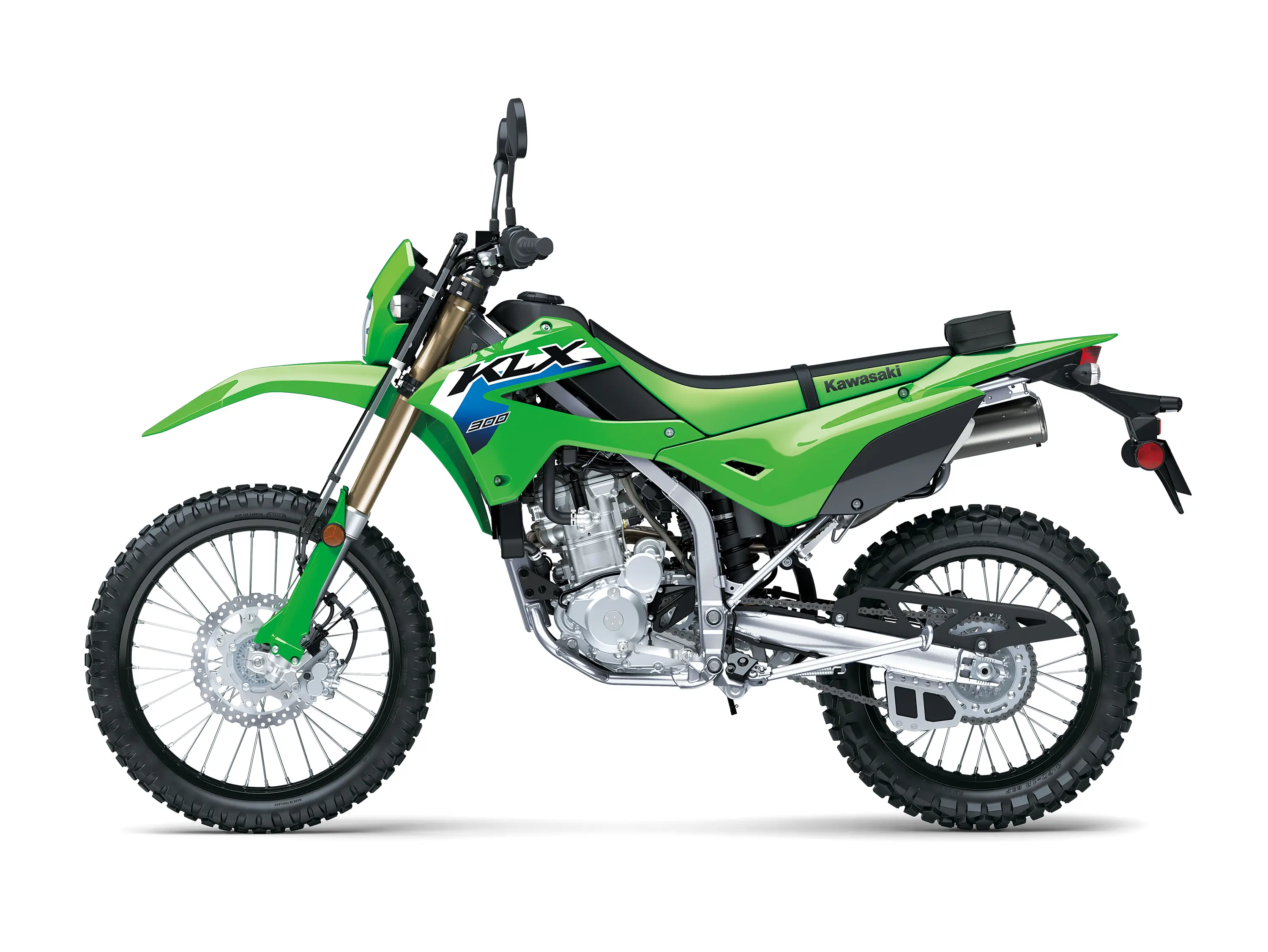

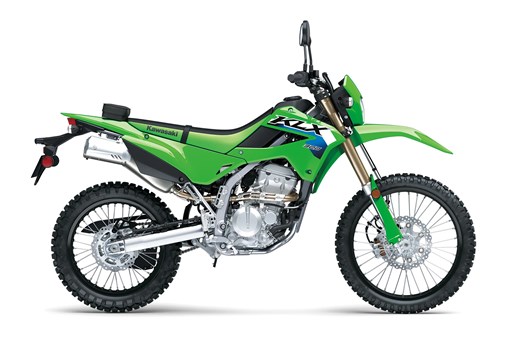

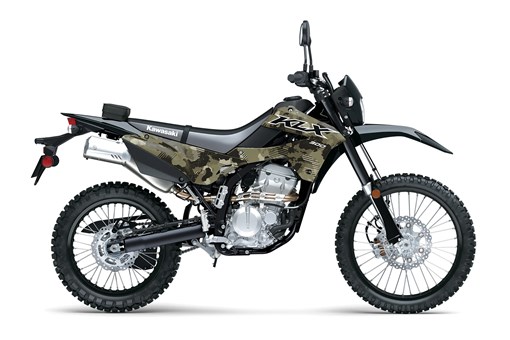

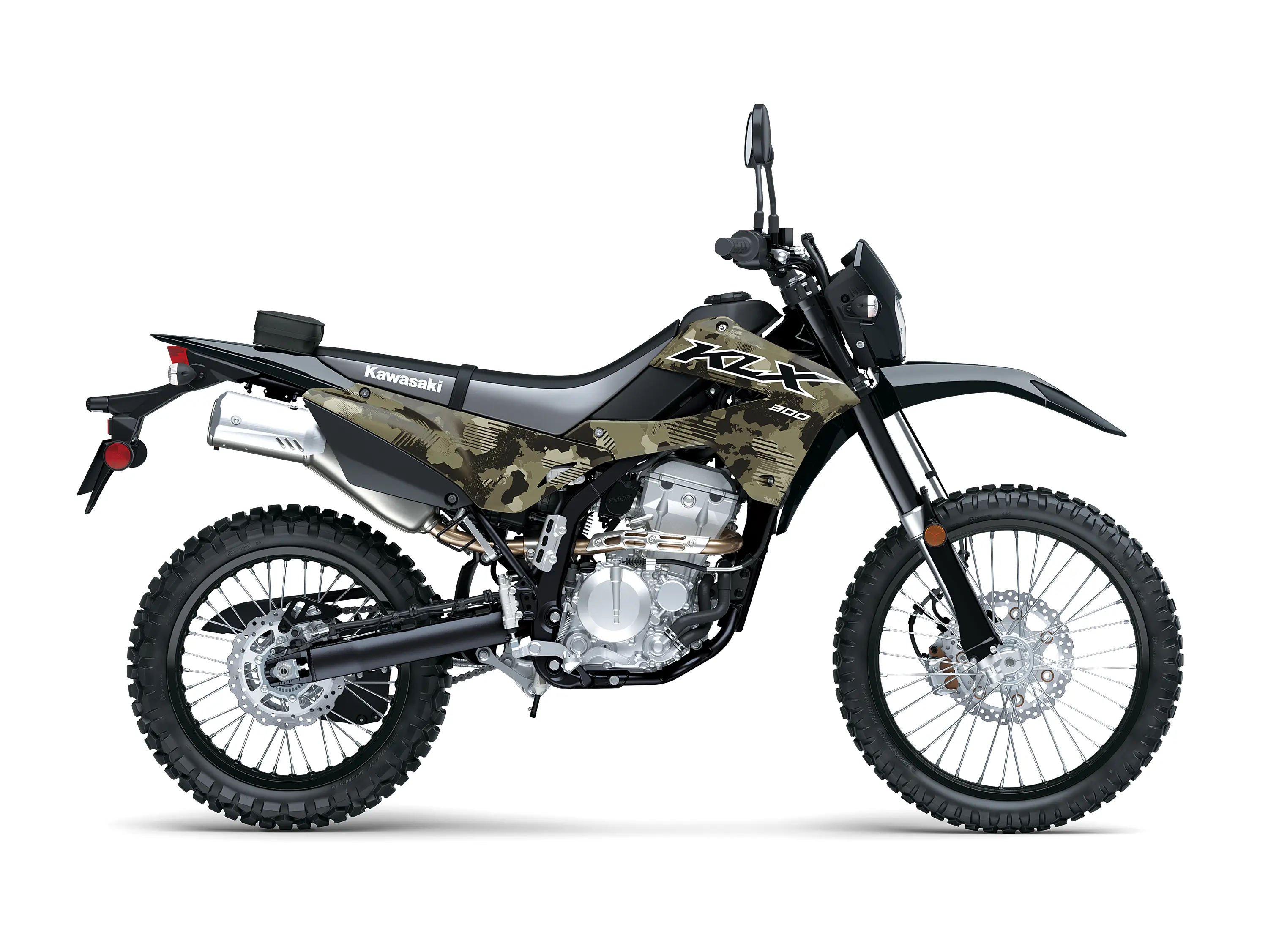

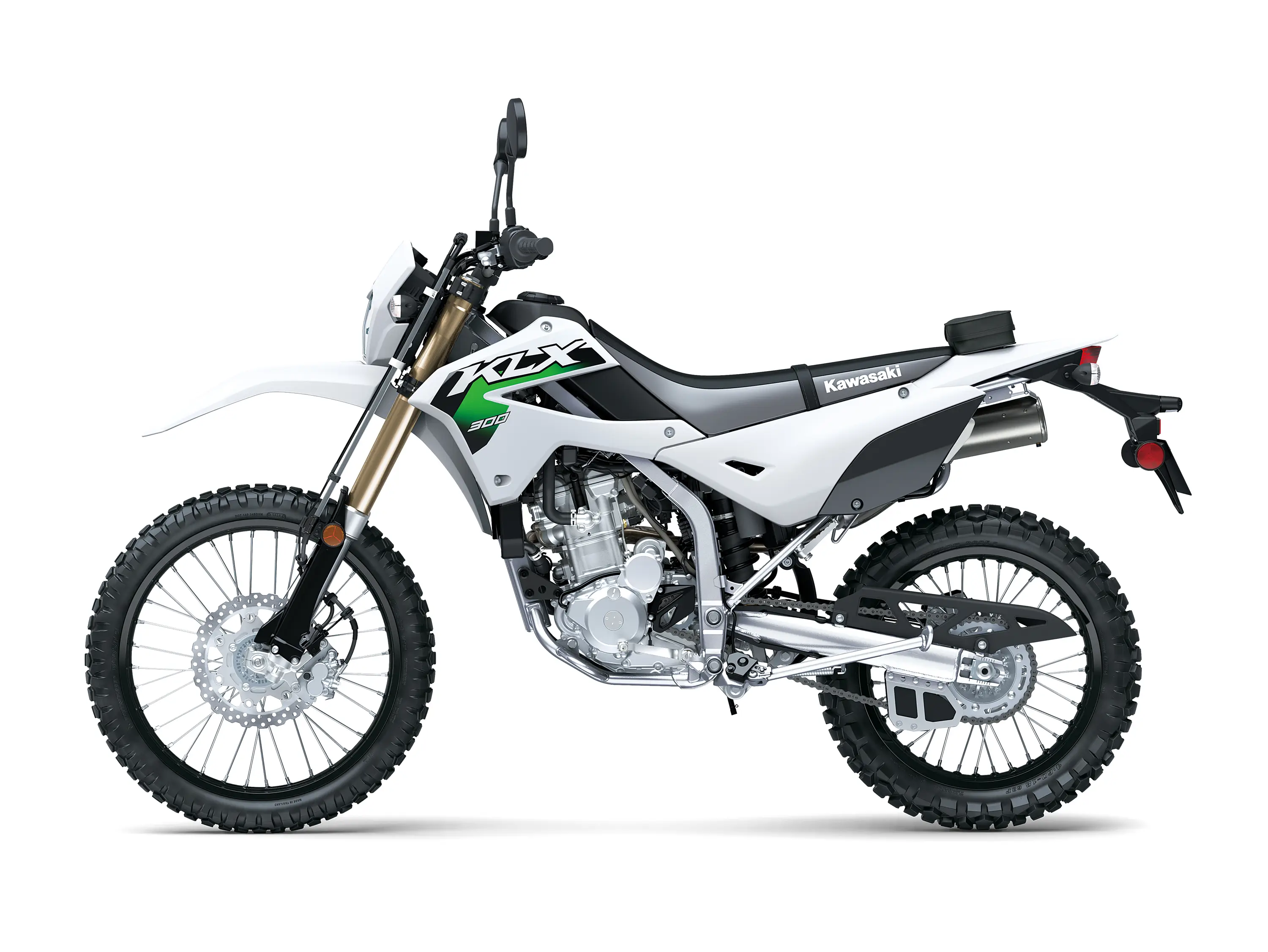

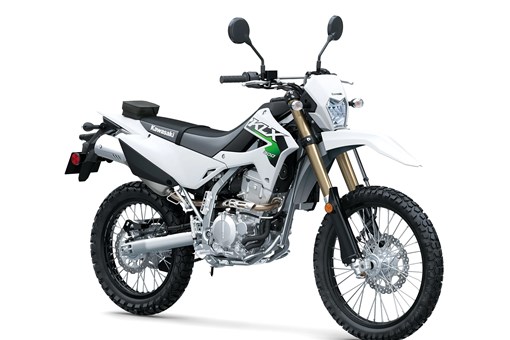

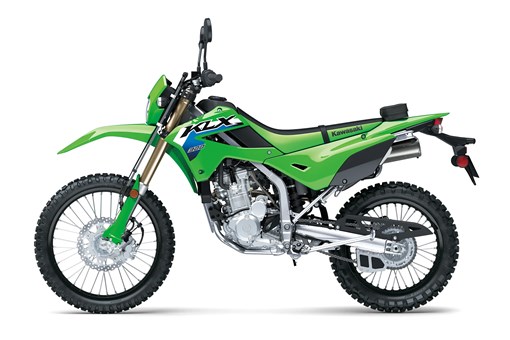

KLX®300 ABS
Equipment illustrated and specification may vary to meet individual markets.
-
BASE MSRP$5,999 ‡
Specifications and pricing are subject to change.
MODEL SPECS |
Click on a technology to learn more.
| Engine Management Technology |
| Chassis Management Technology |

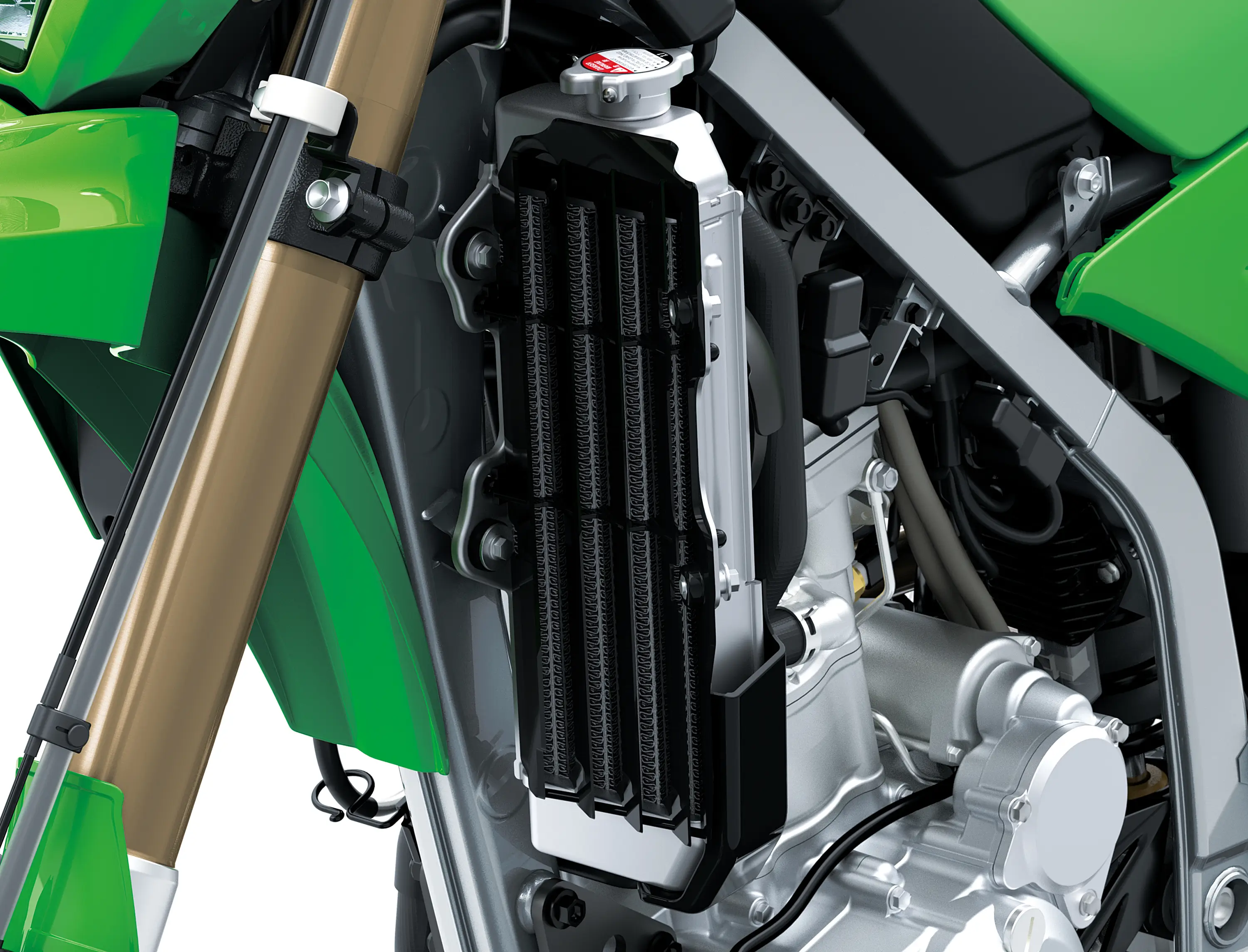

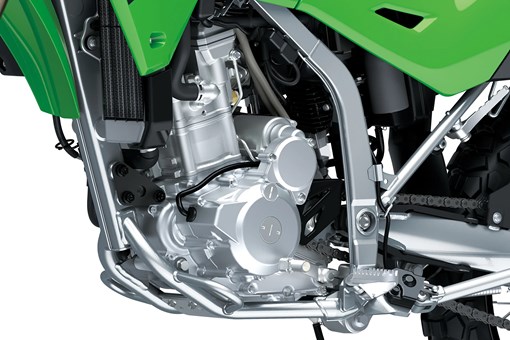

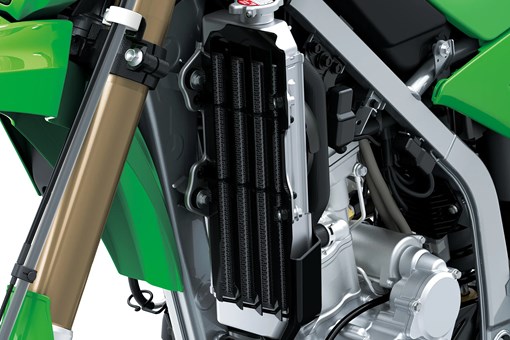

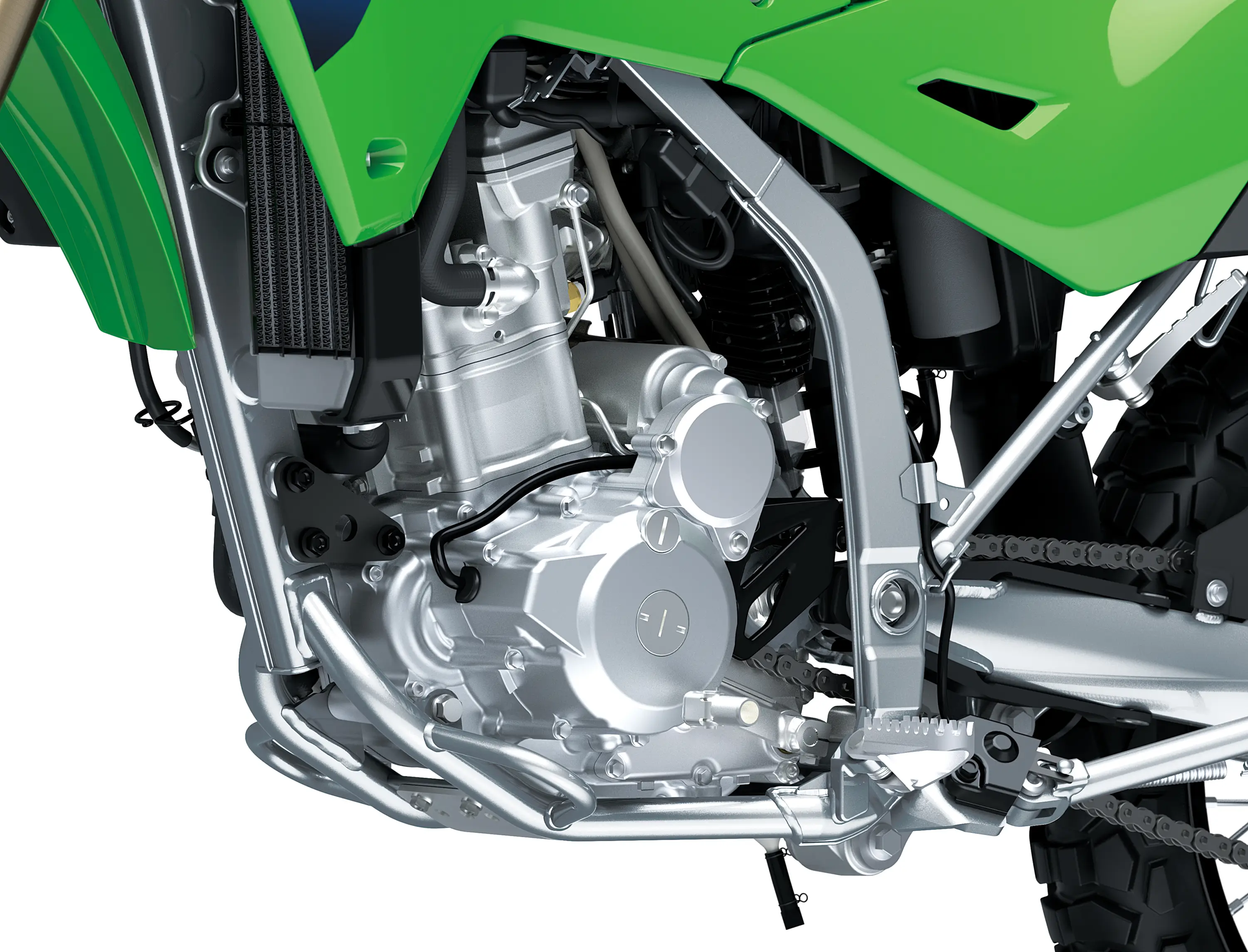

| Engine | 4-stroke, single-cylinder, DOHC, liquid-cooled |
|---|---|
| Displacement | 292cc |
| Bore x Stroke | 78.0 x 61.2mm |
| Compression Ratio | 10.9:1 |

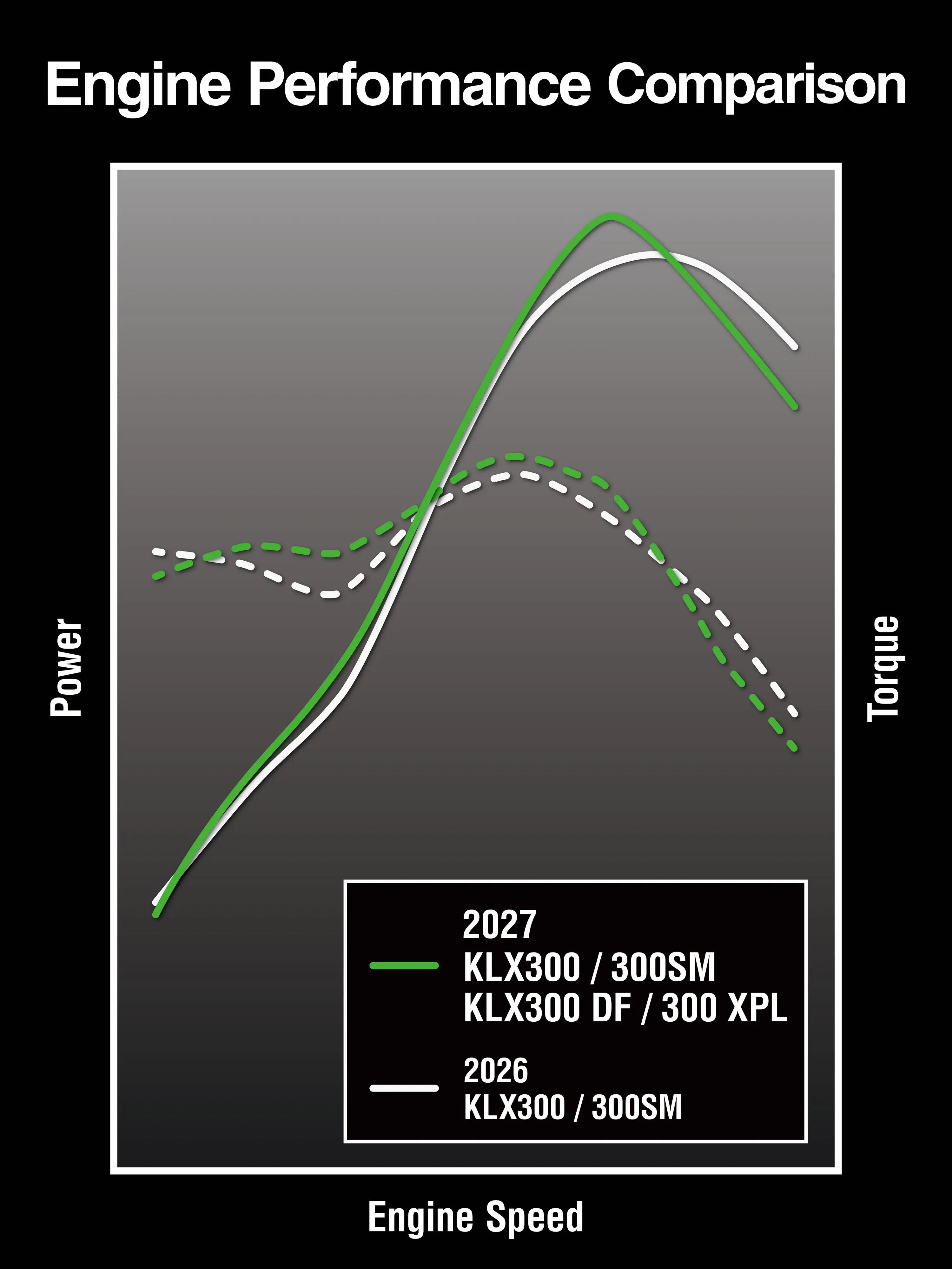

| Maximum Horsepower | 26.8 hp¹ @ 8,000 rpm |
| Maximum Torque | 18.4 lb-ft @ 6,800 rpm |
| Fuel System | DFI® with 34mm Keihin throttle body |
| Ignition | CDI |
| Transmission | 6-speed, return shift with wet multi-disc manual clutch |
| Final Drive | Chain |
| Electronic Rider Aids | Anti-lock Brake System (ABS) |
| Front Suspension / Wheel Travel | 43mm inverted telescopic fork with adjustable compression damping/10.0 in |
|---|---|

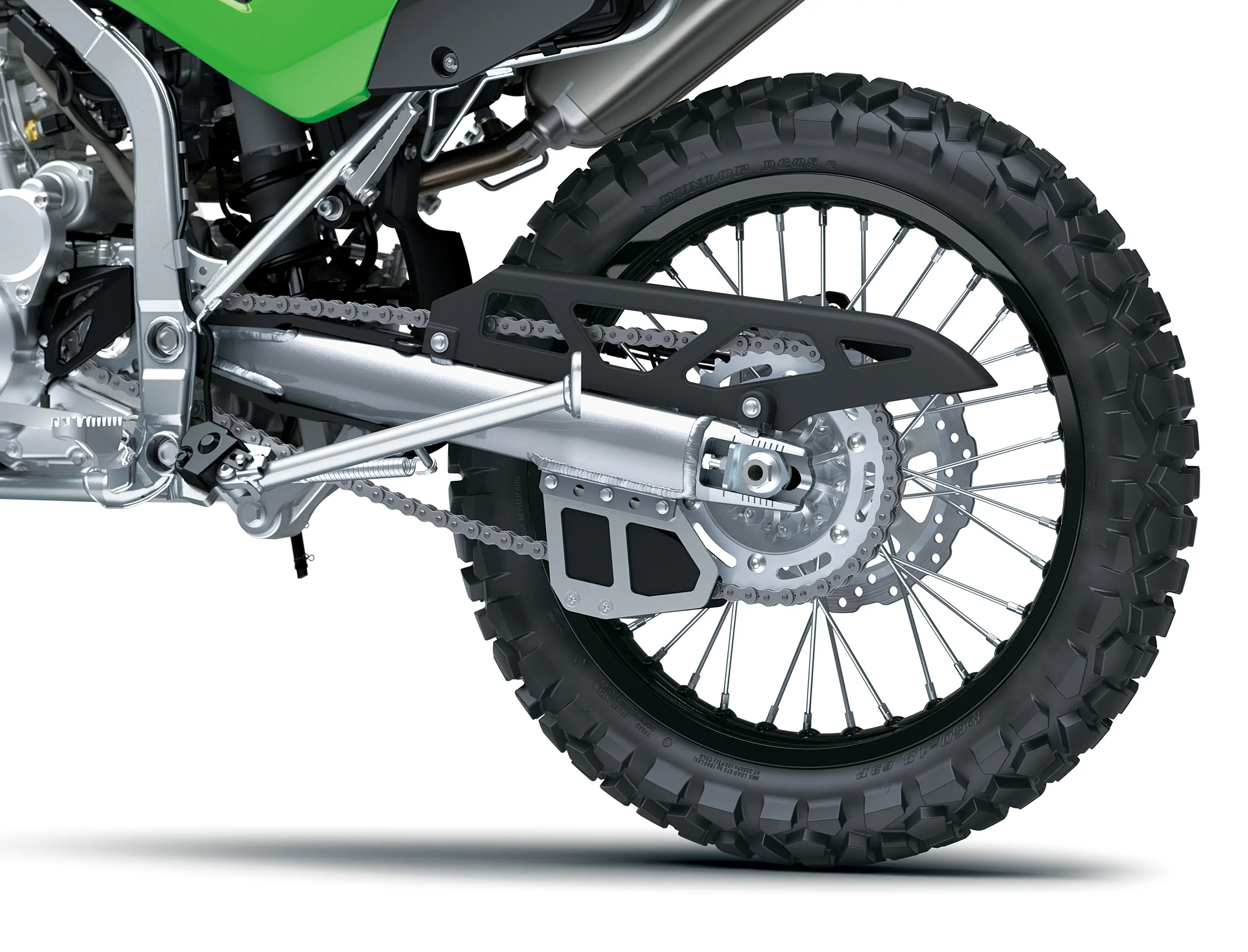

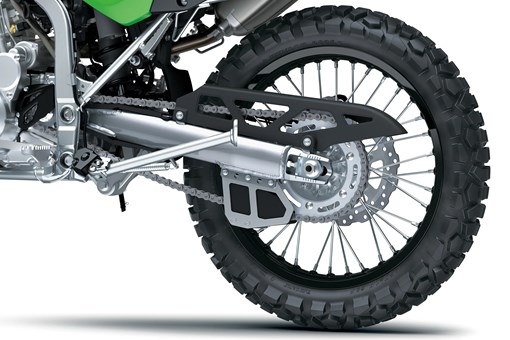

| Rear Suspension / Wheel Travel | Uni-Trak® gas charged shock with piggyback reservoir with adjustable compression, rebound damping and spring preload/9.1 in |
| Front Tire | 3.0 x 21 |
| Rear Tire | 4.6 x 18 |

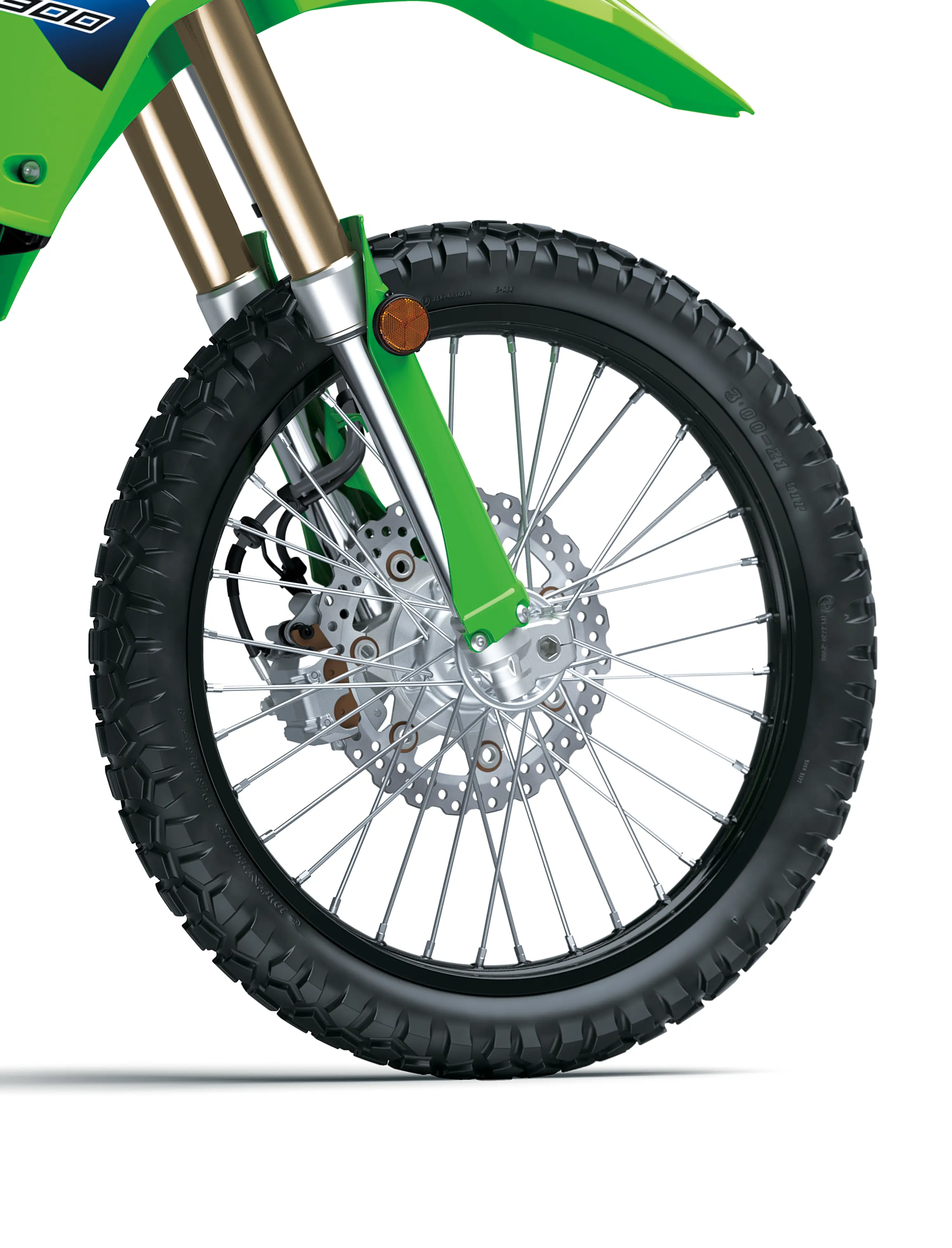

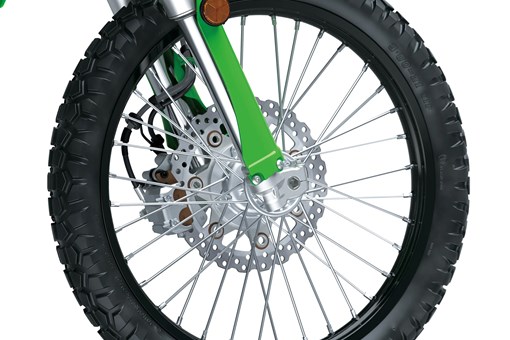

| Front Brakes | Single 250mm petal disc with a dual-piston caliper and ABS |
| Rear Brakes | Single 240mm petal disc with single-piston caliper |
| Frame Type | Tubular, semi-double cradle |
|---|---|
| Rake/Trail | 26.7°/4.2 in |
| Overall Length | 85.8 in |
| Overall Width | 31.7 in |
| Overall Height | 46.7 in |
| Ground Clearance | 11.0 in |

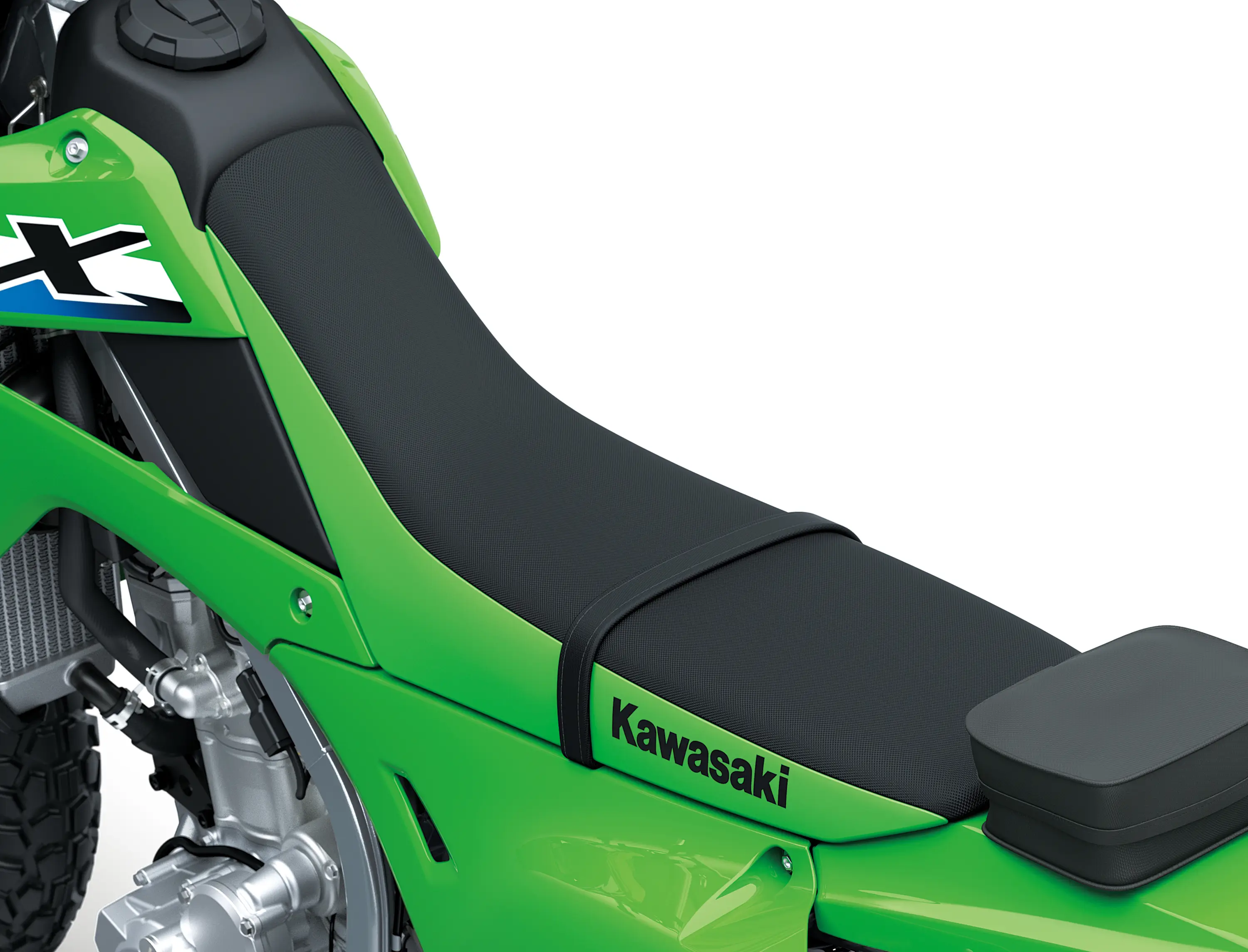

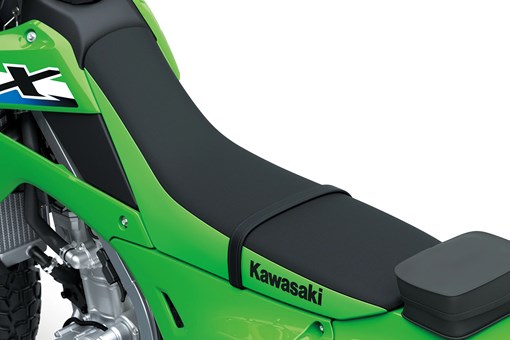

| Seat Height | 35.2 in |
| Estimated Dry Weight | 286.7 lb** |
| Curb Weight | 304.3 lb* |

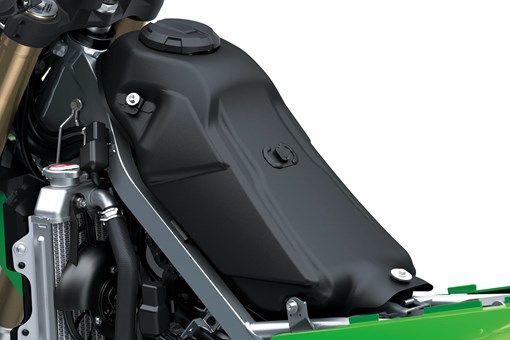

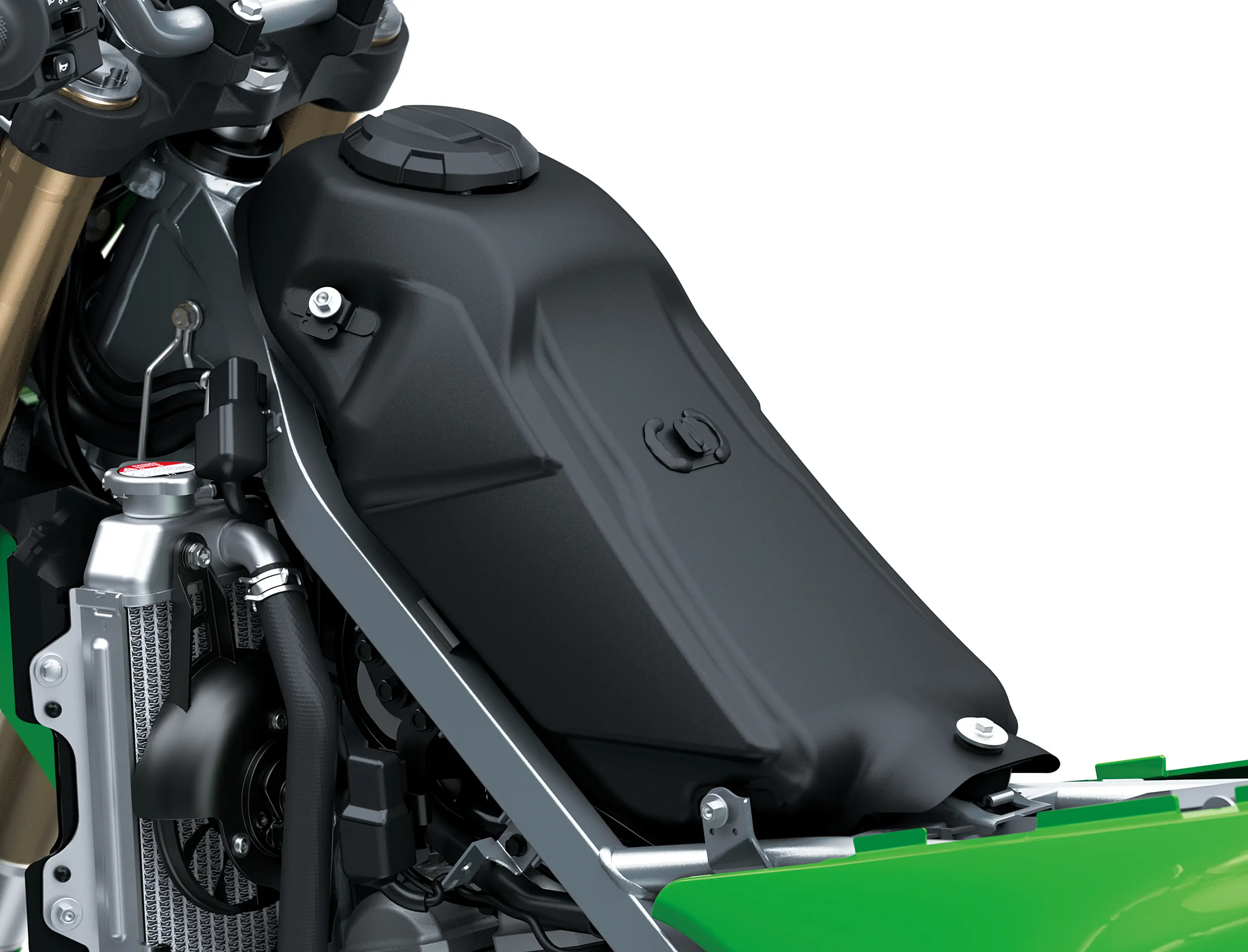

| Fuel Capacity | 2.0 gal |
| Wheelbase | 56.7 in |

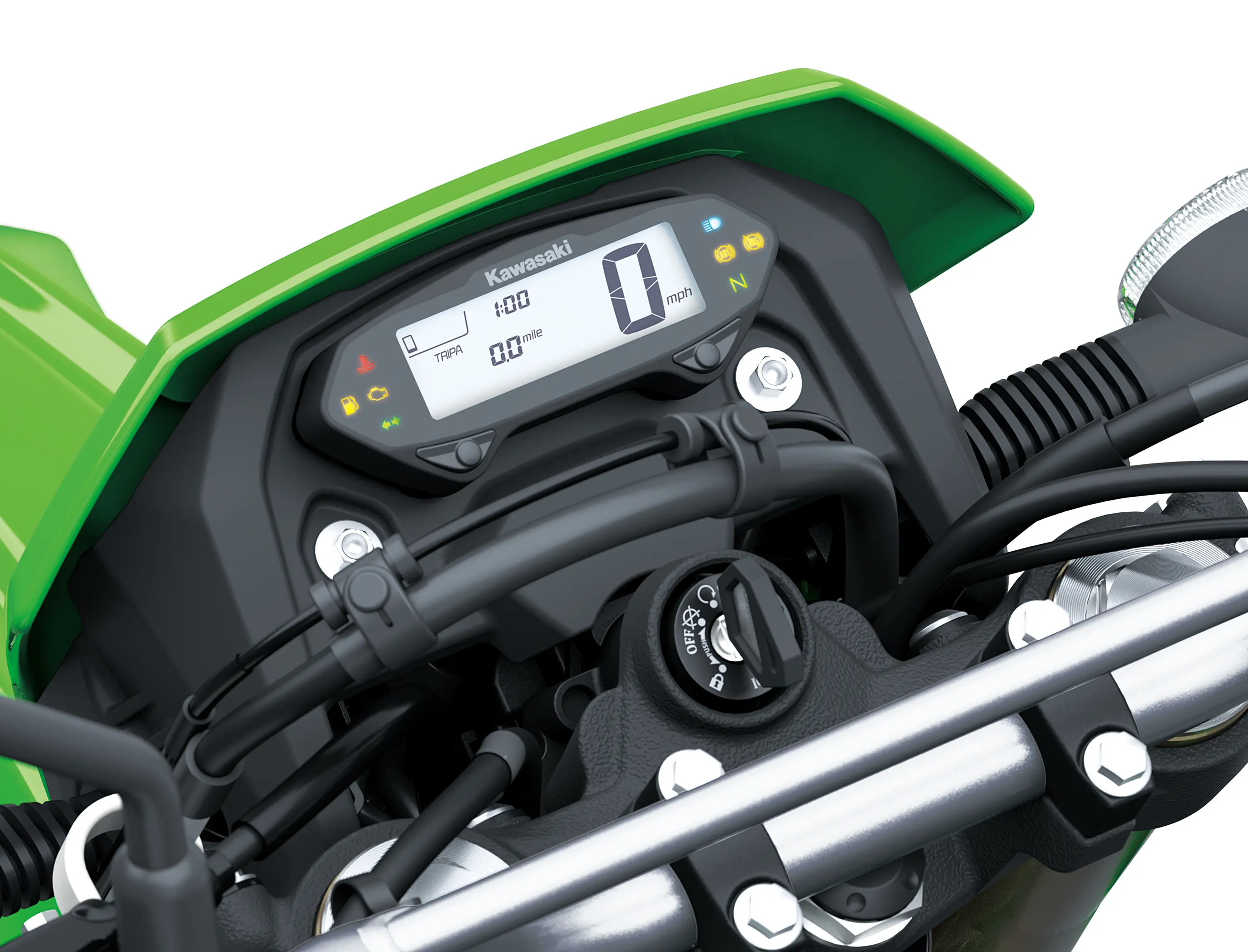

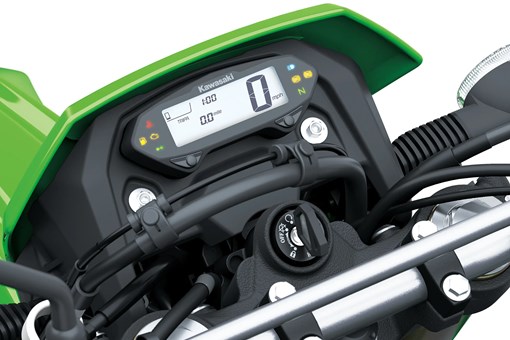

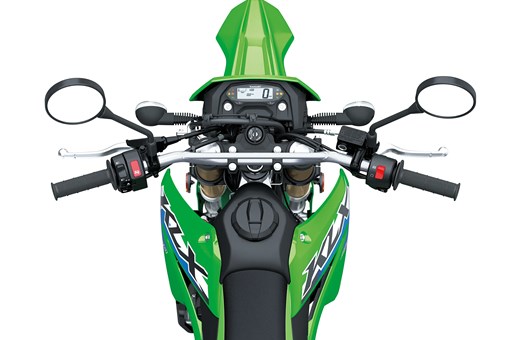

| Special Features | LCD instrumentation with Smartphone Connectivity via RIDEOLOGY THE APP MOTORCYCLE |

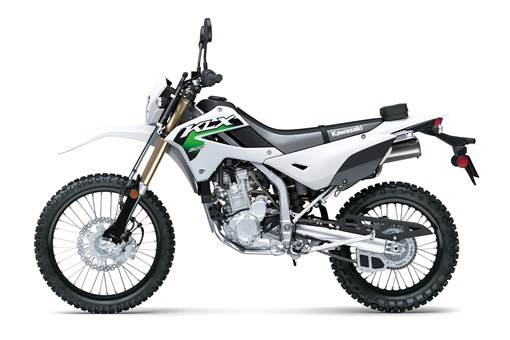

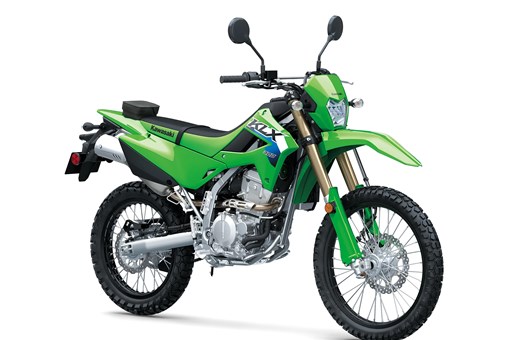

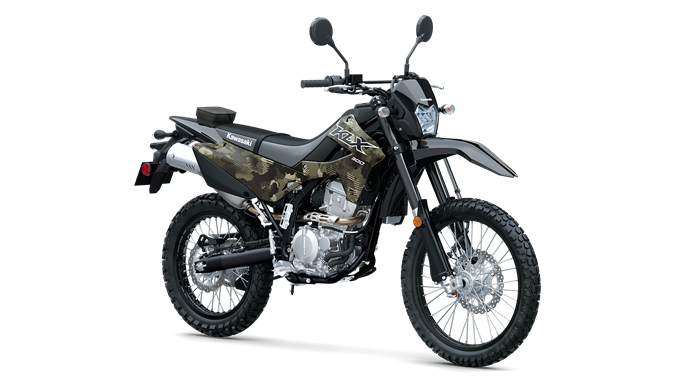

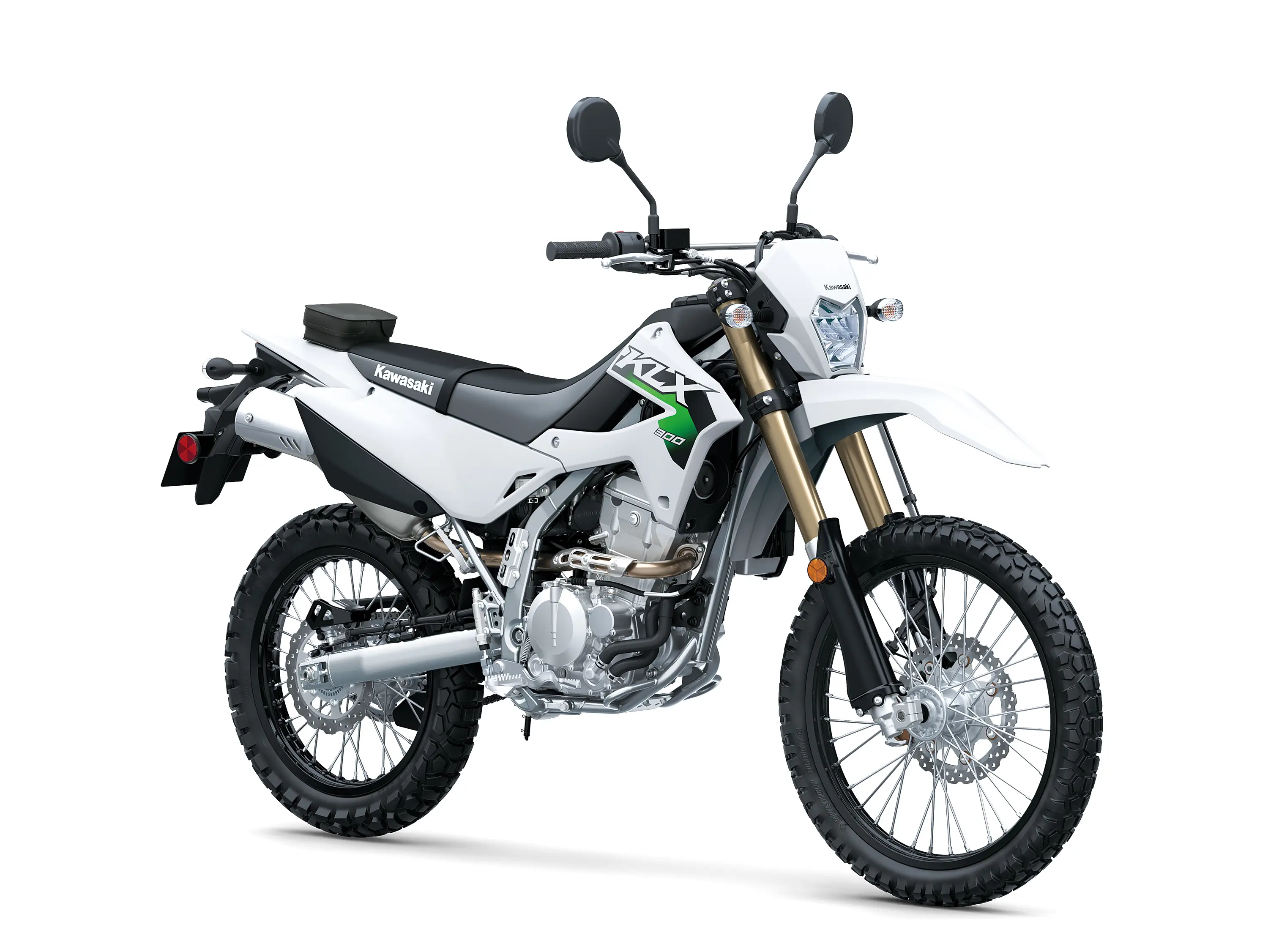

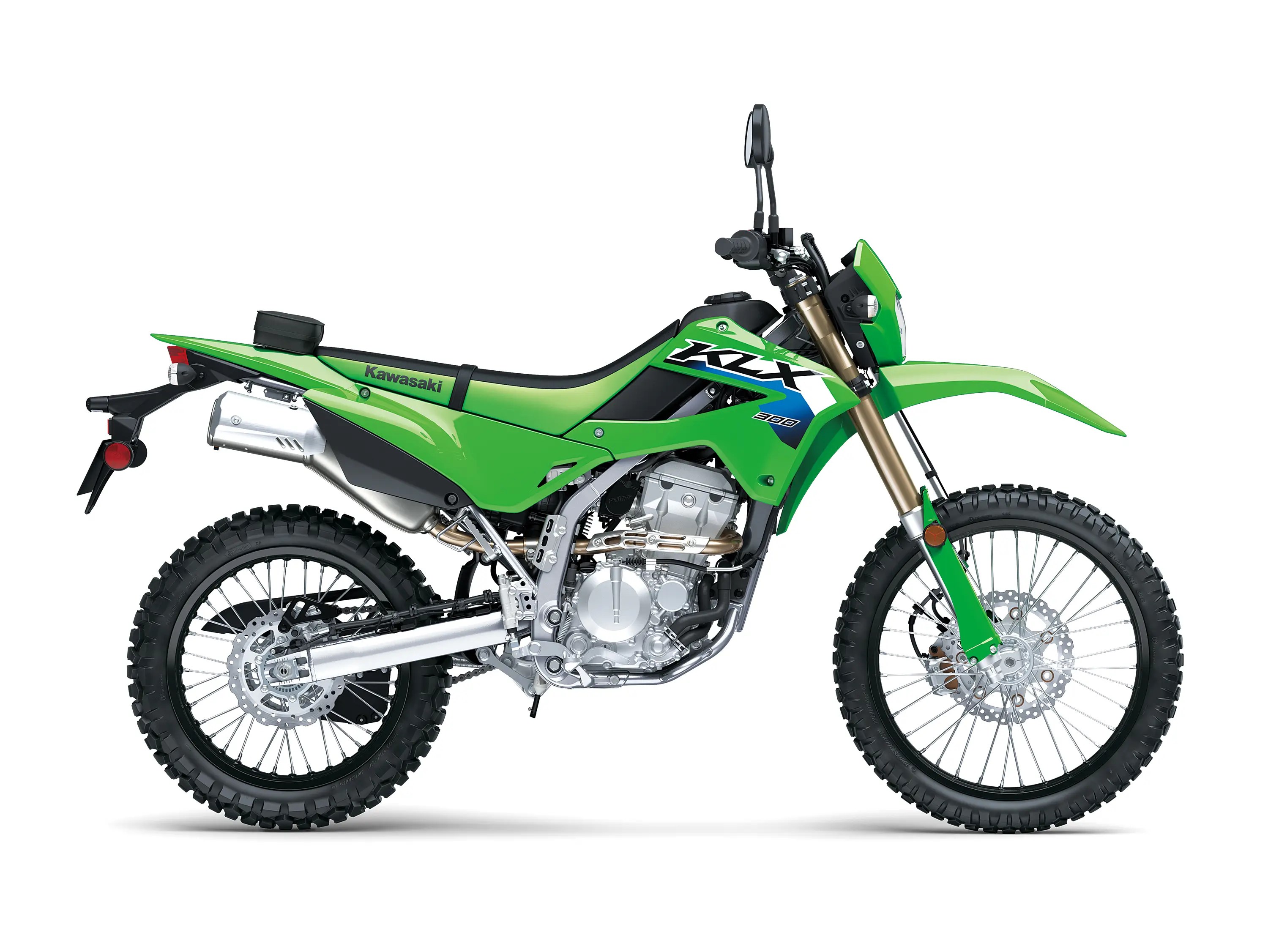

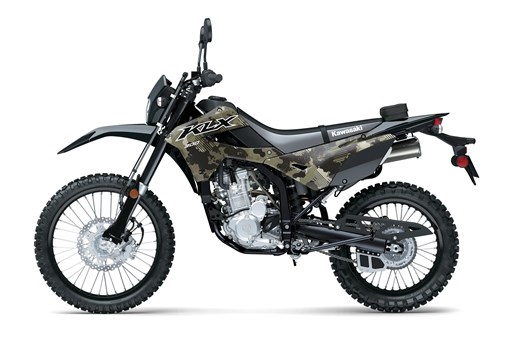

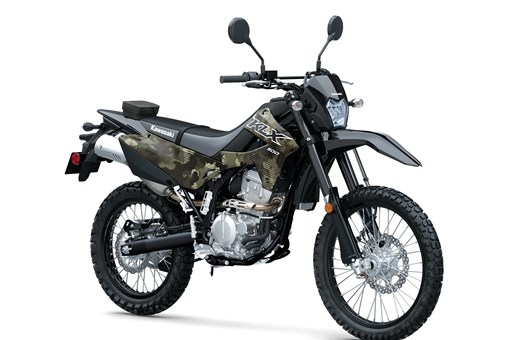

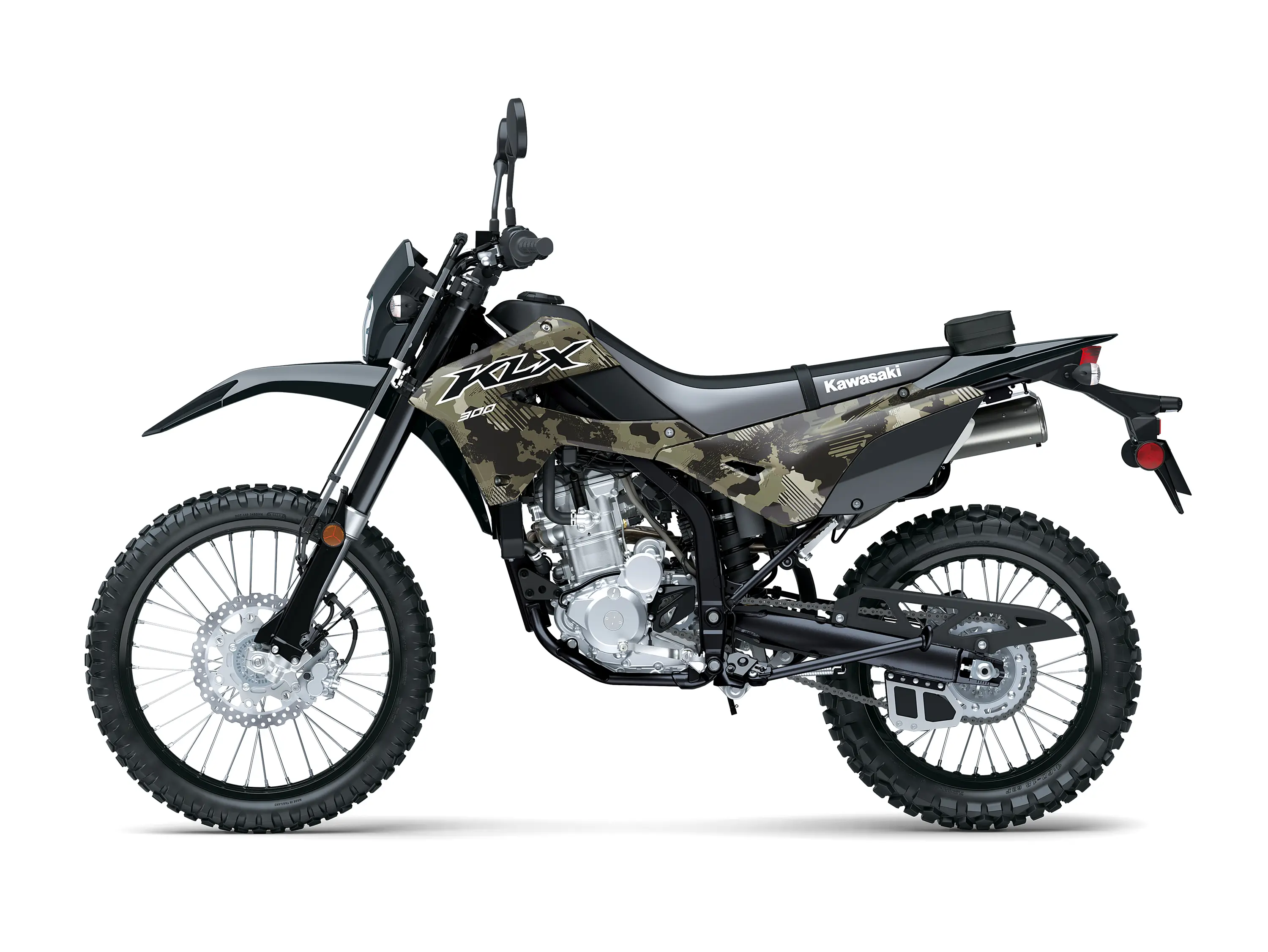

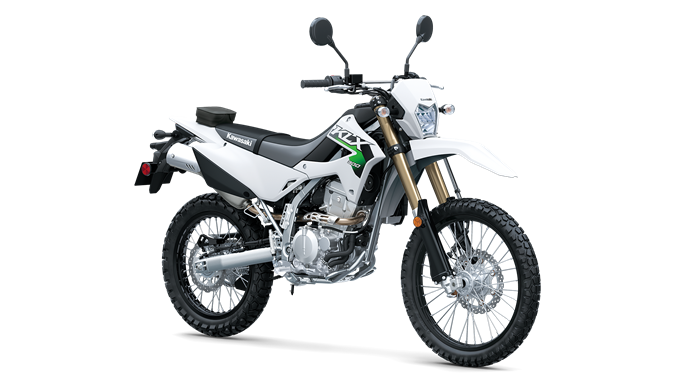

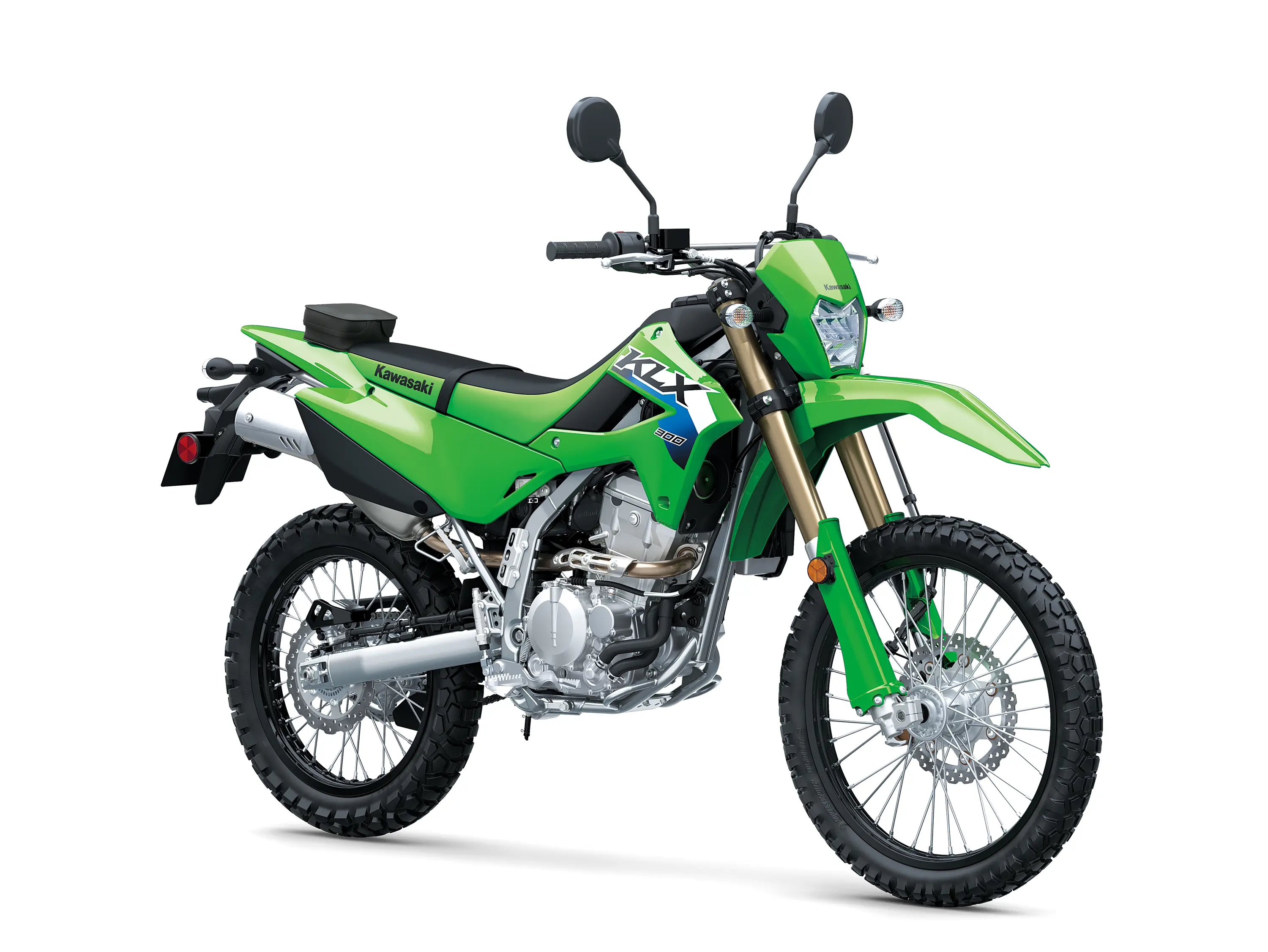

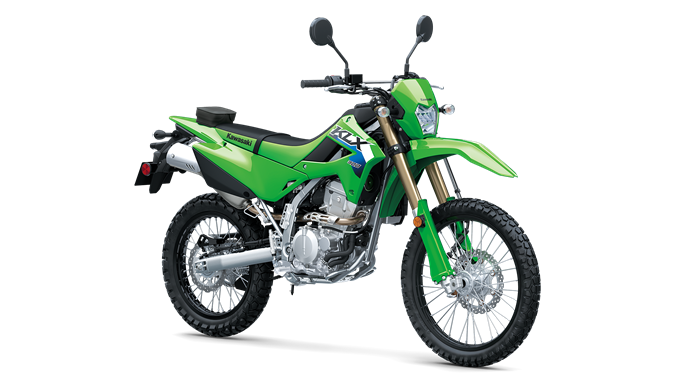

| Color Choices | Lime Green, Bright White, Cypher Camo Beige |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
¹This vehicle's HP was measured according to ISO standard 4106. This ISO standard measures HP differently than the SAE standards by which the horsepower of many cars is measured, and as a result the referenced HP measurement may be higher than if it were measured by an SAE standard.
KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear a helmet, eye protection and proper apparel. Never ride under the influence of drugs or alcohol. Adhere to the maintenance schedule in your Owner’s Manual. ©2026 Kawasaki Motors Corp., U.S.A.
Specifications subject to change.
FIND A KAWASAKI DEALER IN YOUR AREA
Zip Code or City, State
SIMILAR MODELS |
DUAL-SPORT
KLX®230

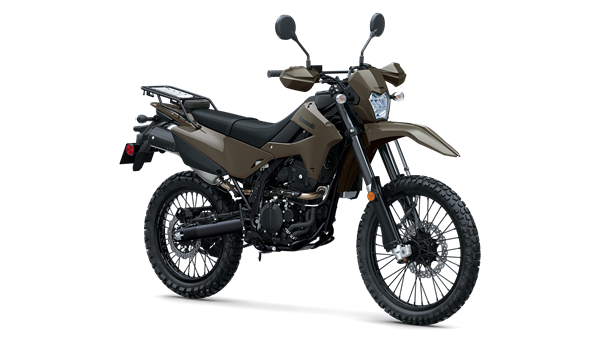

KLX®230 SHERPA
KLX®230 DF
KLX®300 DF
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP MOTORCYCLE,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc.) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle’s instrument display settings (preferred units, clock and date setting, etc.) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone. Smartphone connectivity with voice command is available.
Learn more about the functionalities of RIDEOLOGY THE APP MOTORCYCLE at https://www.global-kawasaki-motors.com/kawasaki_connect/en/mc.html.
RIDEOLOGY THE APP MOTORCYCLE
Clever technology enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience. Vehicle information (such as the odometer, fuel gauge, maintenance schedule, etc) can be viewed on the smartphone. Riding logs (varies by model, but may include GPS route, gear position, rpm, and other information) can be viewed on the smartphone. When connected, telephone (call, mail) notices are displayed on the instrument panel. Riders can also make changes to their motorcycle’s instrument display settings (preferred units, clock and date setting, etc) via the smartphone. And on certain models, it is even possible to check and adjust vehicle settings (such as Rider Mode, electronic rider support features, and payload settings) using the smartphone.

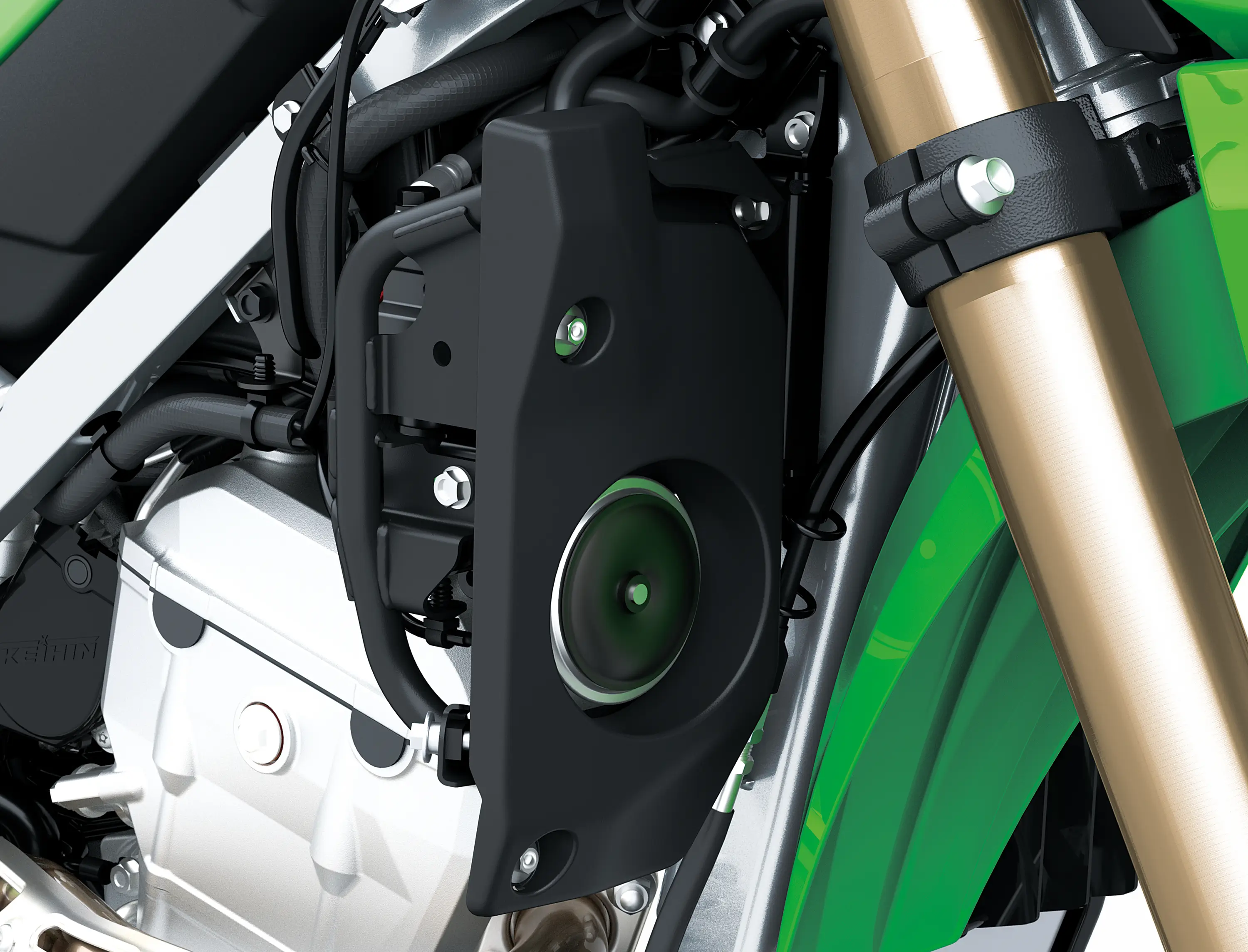

Kawasaki ABS systems use front and rear wheel sensors to constantly monitor wheel speed. Should information from either of the sensors indicate that wheel lock has occurred, the ABS ECU directs the pump in the ABS unit to modulate brake fluid pressure (releasing and reapplying pressure so that traction can be regained) until normal operation resumes. ABS offers rider reassurance that contributes to greater riding enjoyment.

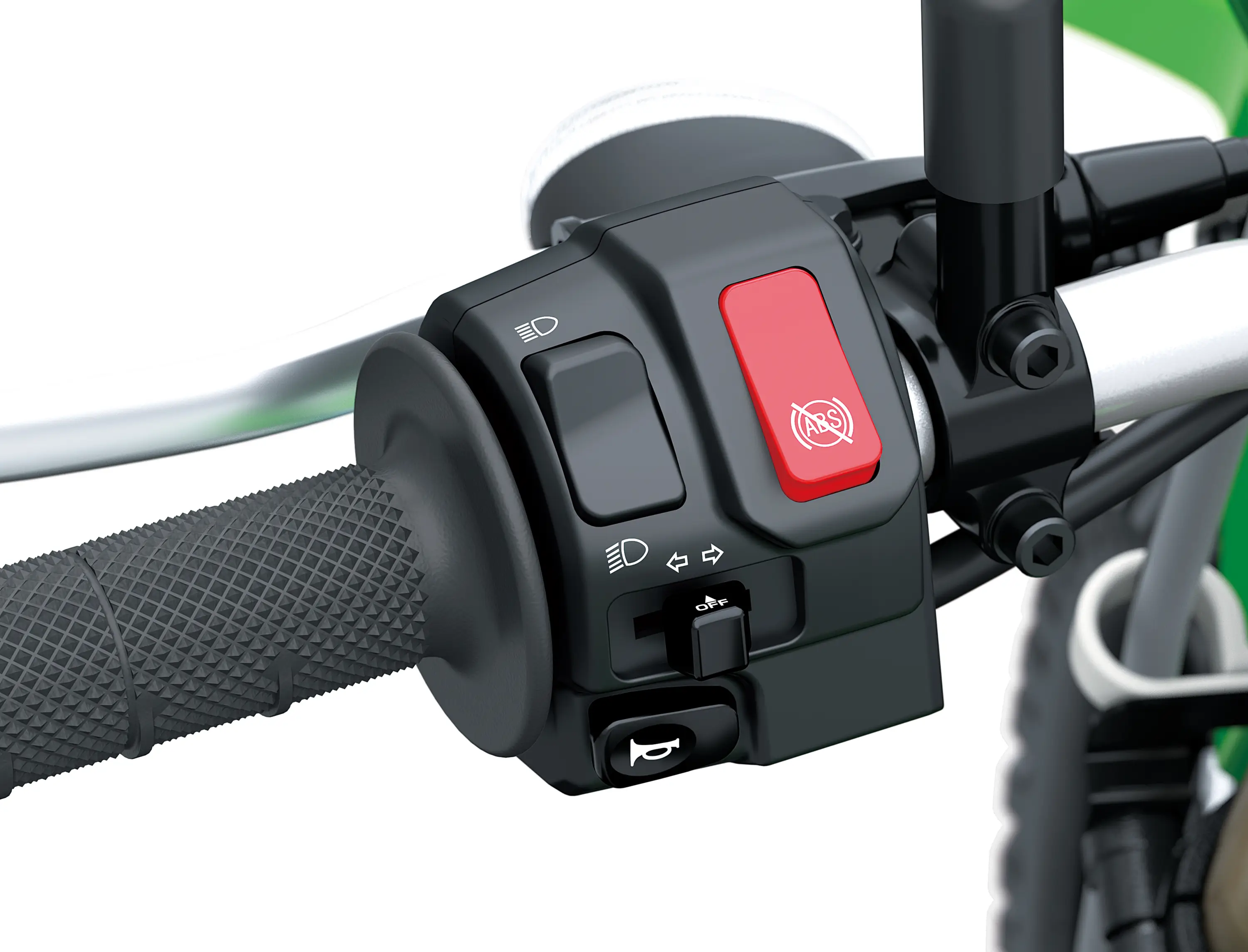

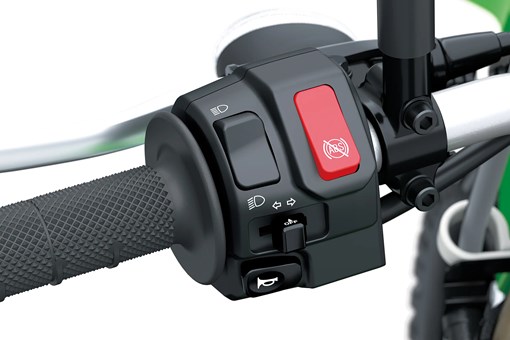

Riders can opt to disable the ABS function according to their preference when riding off-road. (On some models and for some markets, only the rear ABS is disabled.) The ABS is disabled using a switch at the left handle. After the motorcycle is turned off and re-started, ABS returns to its default setting (front and rear ABS enabled).
Selectable ABS
