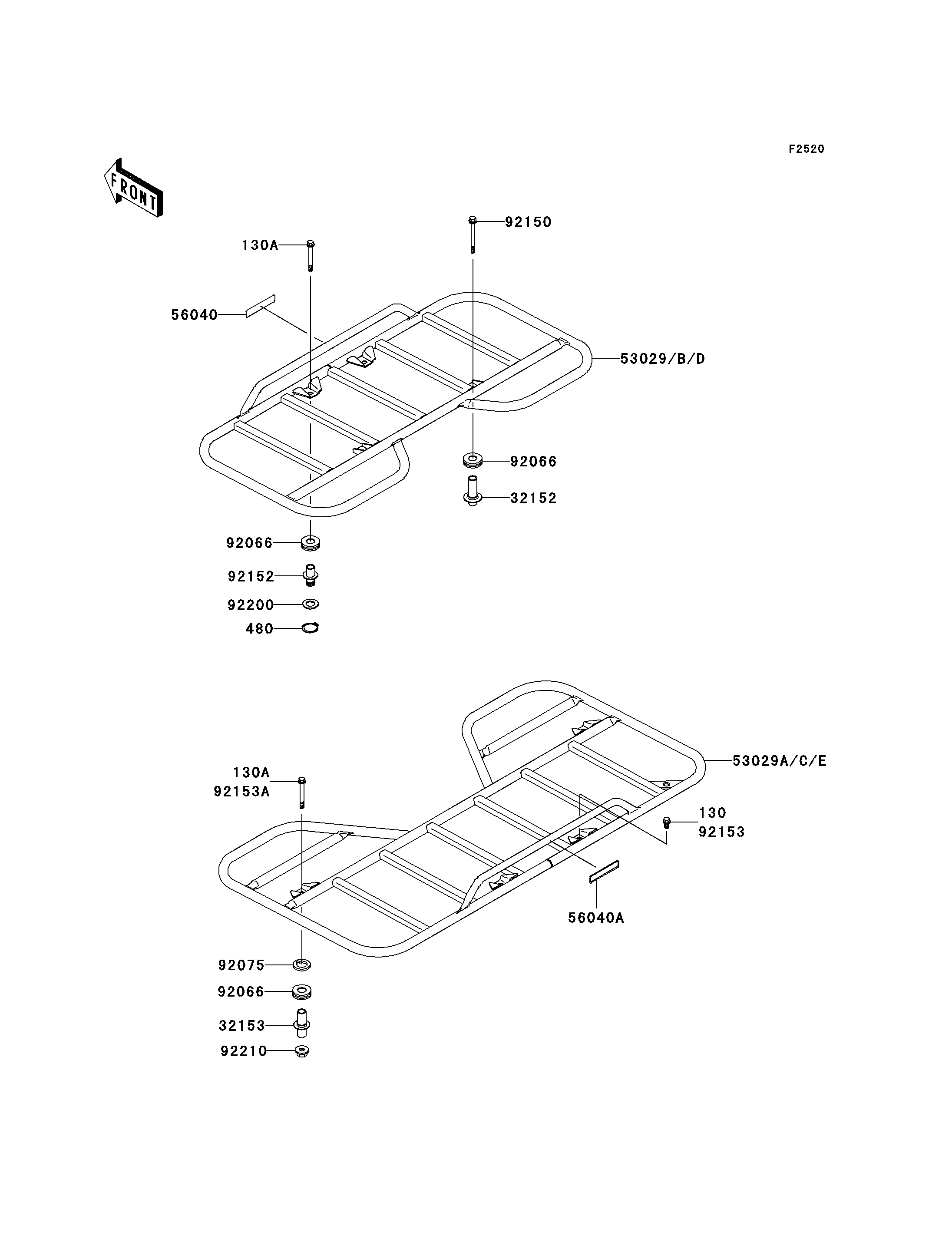

2006 Prairie 360 - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
480
32152
32153
53029D
53029E
56040
56040A
92066
92066
92066
92075
92150
92152
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X14 130 130CB0814 2
BOLT-FLANGED,8X65 130A 130CB0865 4
CIRCLIP-TYPE-C,17MM 480 480J1700 2
PIPE,FRONT CARRIER 32152 32152-1067 2
PIPE 32153 32153-7527 2
CARRIER,FR,M.GRAYSTONE 53029D 53029-7501-379 1
CARRIER,RR,M.GRAYSTONE 53029E 53029-7502-379 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56040A 56040-1322 1
PLUG 92066 92066-1438 6
DAMPER 92075 92075-1842 2
BOLT,FLANGED,8X80 92150 92150-1808 2
COLLAR,L=42.5 92152 92152-7504 2
WASHER,18.5X32X2.3 92200 92200-1043 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 2
