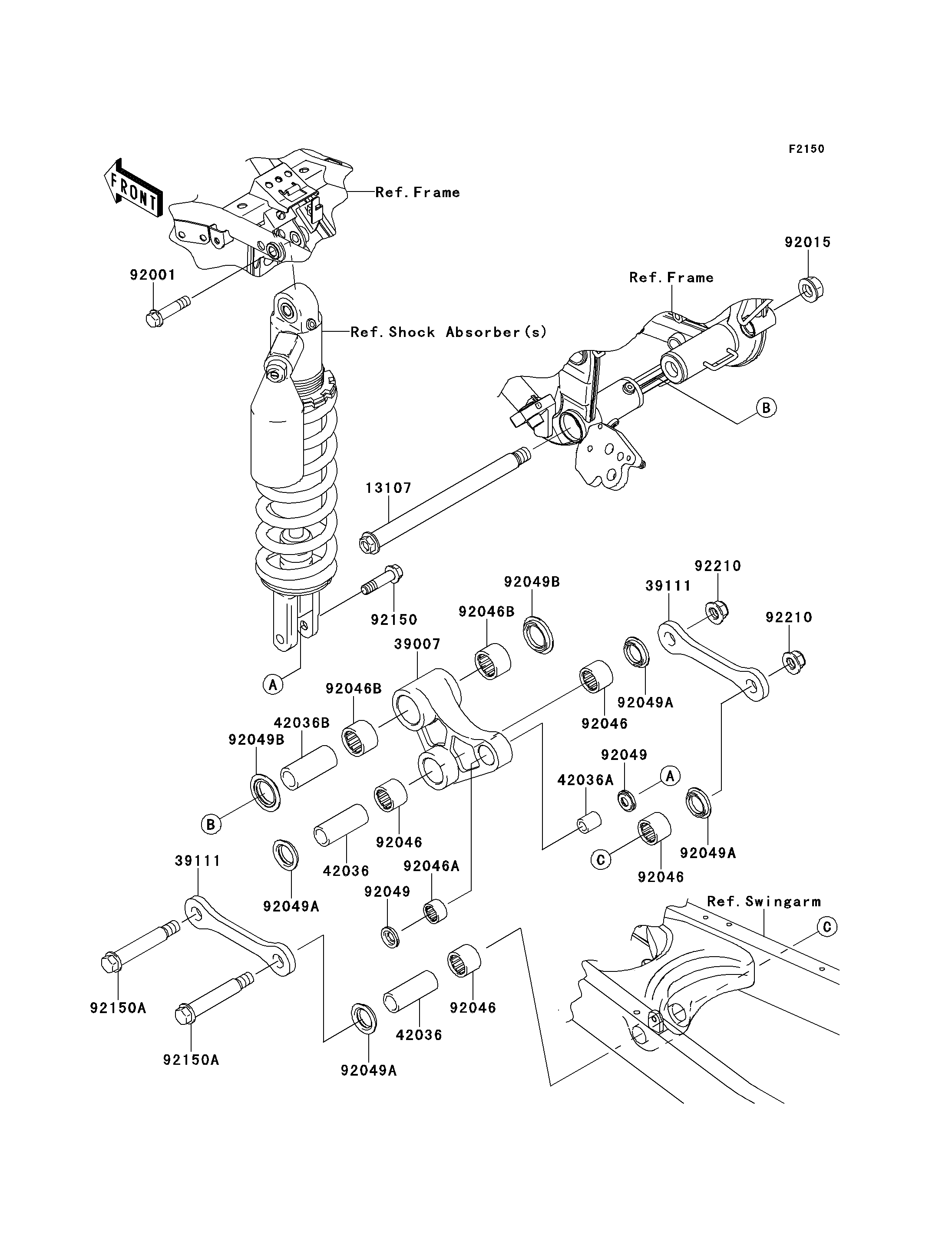

2014 KLX®250S - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
13107
39007
39111
39111
42036
42036
42036A
42036B
92001
92015
92046
92046
92046
92046
92046A
92046B
92046B
92049
92049
92049A
92049A
92049A
92049A
92049B
92049B
92150
92150A
92150A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,ARM,14MM 13107 13107-0198 1
ARM-SUSP,UNI TRAK 39007 39007-0100 1
ROD-TIE,SUSPENSION 39111 39111-0053 2
SLEEVE,15X22X57 42036 42036-1245 2
SLEEVE,10X16X19 42036A 42036-1248 1
SLEEVE,17X25X57 42036B 42036-1318 1
BOLT,FLANGED,10X44 92001 92001-1499 1
NUT,14MM 92015 92015-1407 1
BEARING-NEEDLE,F-2220 92046 92046-1162 4
BEARING-NEEDLE,16BM2212 92046A 92046-1192 1
BEARING-NEEDLE,BM2520 92046B 92046-1228 2
SEAL-OIL 92049 92049-0069 2
SEAL-OIL,MHA22 28 5.7F 92049A 92049-1254 4
SEAL-OIL,MF025N1 92049B 92049-1426 2
BOLT,FLANGED,10X40 92150 92150-1711 1
BOLT,ROD,12X90 92150A 92150-1812 2
NUT,LOCK,FLANGED,12MM 92210 92210-0348 2
