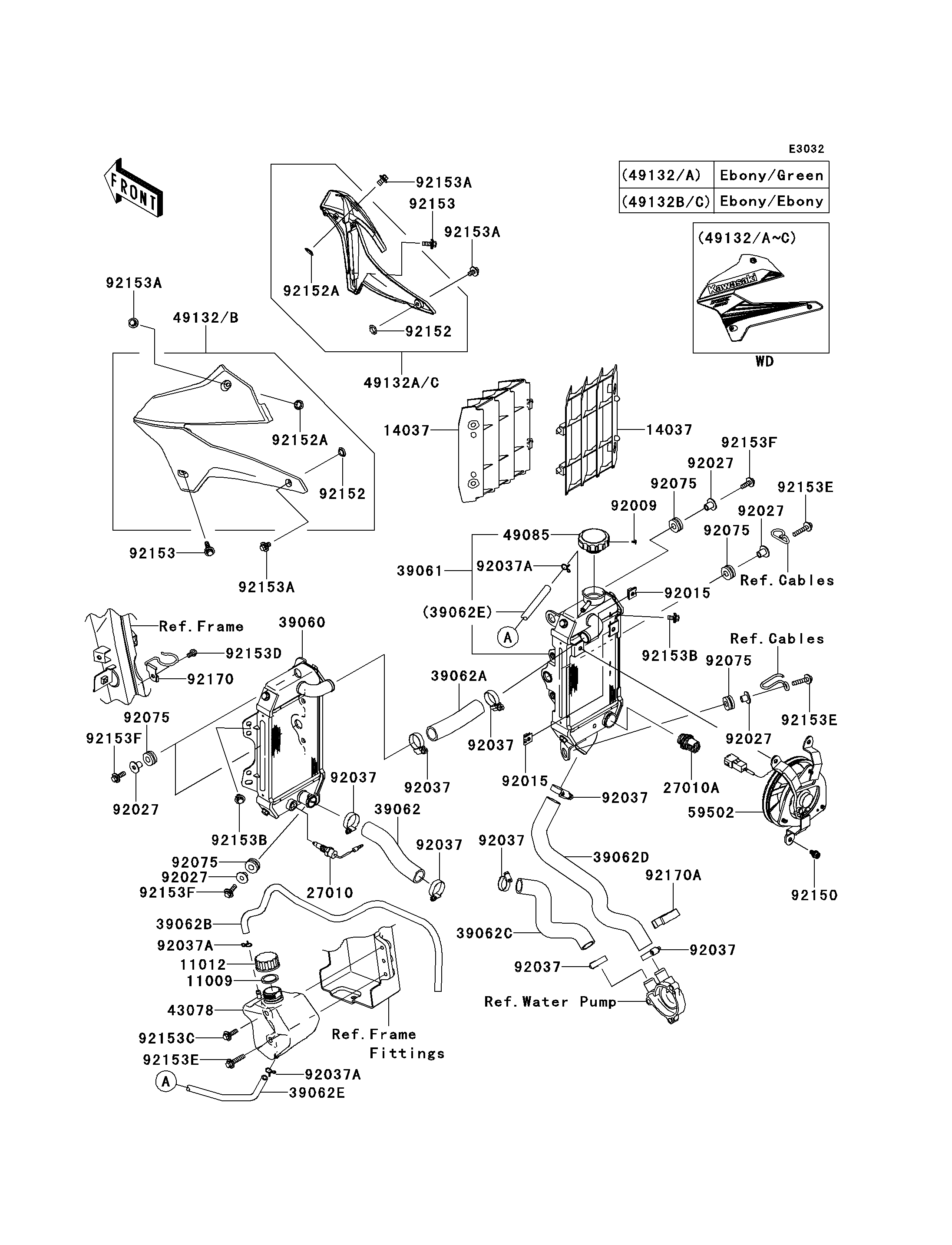

2014 KLX®250S - Radiator

DOWNLOAD PDF
SELECT A NEW PART
11009
11009
11012
11012
14037
14037
14037
14037
27010
27010
27010A
27010A
39060
39060
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39062E
39062E
43078
43078
49085
49085
49132
49132
49132A
49132A
49132B
49132B
49132C
49132C
59502
59502
92009
92009
92015
92015
92015
92015
92027
92027
92027
92027
92027
92027
92027
92027
92027
92027
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92075
92075
92075
92075
92075
92075
92075
92075
92075
92075
92150
92150
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153C
92153C
92153D
92153D
92153E
92153E
92153E
92153E
92153E
92153E
92153F
92153F
92153F
92153F
92153F
92153F
92170
92170
92170A
92170A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,RESERVOIR TANK CAP 11009 11009-1145 1
CAP 11012 11012-1084 1
SCREEN,EBONY 14037 14037-0067-6C 2
SWITCH,WARNING 27010 27010-1199 1
SWITCH 27010A 27010-1443 1
RADIATOR 39060 39060-0045 1
RADIATOR-ASSY 39061 39061-0184 1
HOSE-COOLING,HEAD-RAD.LH 39062 39062-0199 1
HOSE-COOLING,RAD. LH-RAD. RH 39062A 39062-0200 1
HOSE-COOLING,OVERFLOW 39062B 39062-0204 1
HOSE-COOLING,PUMP-CYLINDER 39062C 39062-1563 1
HOSE-COOLING,RADIATOR-PUMP 39062D 39062-1564 1
HOSE-COOLING,RESERVOIR 39062E 39062-1786 1
RESERVOIR 43078 43078-0044 1
CAP-ASSY-PRESSURE 49085 49085-1075 1
SHROUD-ENGINE,LH,EBONY+GREEN 49132 49132-5085-27W 1
SHROUD-ENGINE,RH,EBONY+GREEN 49132A 49132-5086-27W 1
SHROUD-ENGINE,LH,EBONY+EBONY 49132B 49132-5087-25L 1
SHROUD-ENGINE,RH,EBONY+EBONY 49132C 49132-5088-25L 1
FAN-ASSY 59502 59502-0028 1
SCREW,TAPPING,3X6 92009 92009-1844 1
NUT 92015 92015-1487 2
COLLAR 92027 92027-1183 6
CLAMP,COOLING HOSE 92037 92037-1589 8
CLAMP 92037A 92037-1712 3
DAMPER 92075 92075-209 6
BOLT,6X12 92150 92150-1186 3
COLLAR,8.8X11.2X4 92152 92152-0909 2
COLLAR 92152A 92152-1235 2
BOLT,6X20 92153 92153-0502 2
BOLT,6X12 92153A 92153-0503 4
BOLT,FLANGED,6X14 92153B 92153-0936 2
BOLT,FLANGED,6X22 92153C 92153-0950 1
BOLT,FLANGED,6X10 92153D 92153-1354 1
BOLT,FLANGED,6X30 92153E 92153-1457 3
BOLT,FLANGED-SMALL,6X22 92153F 92153-1560 4
CLAMP 92170 92170-1357 1
CLAMP 92170A 92170-1419 1
