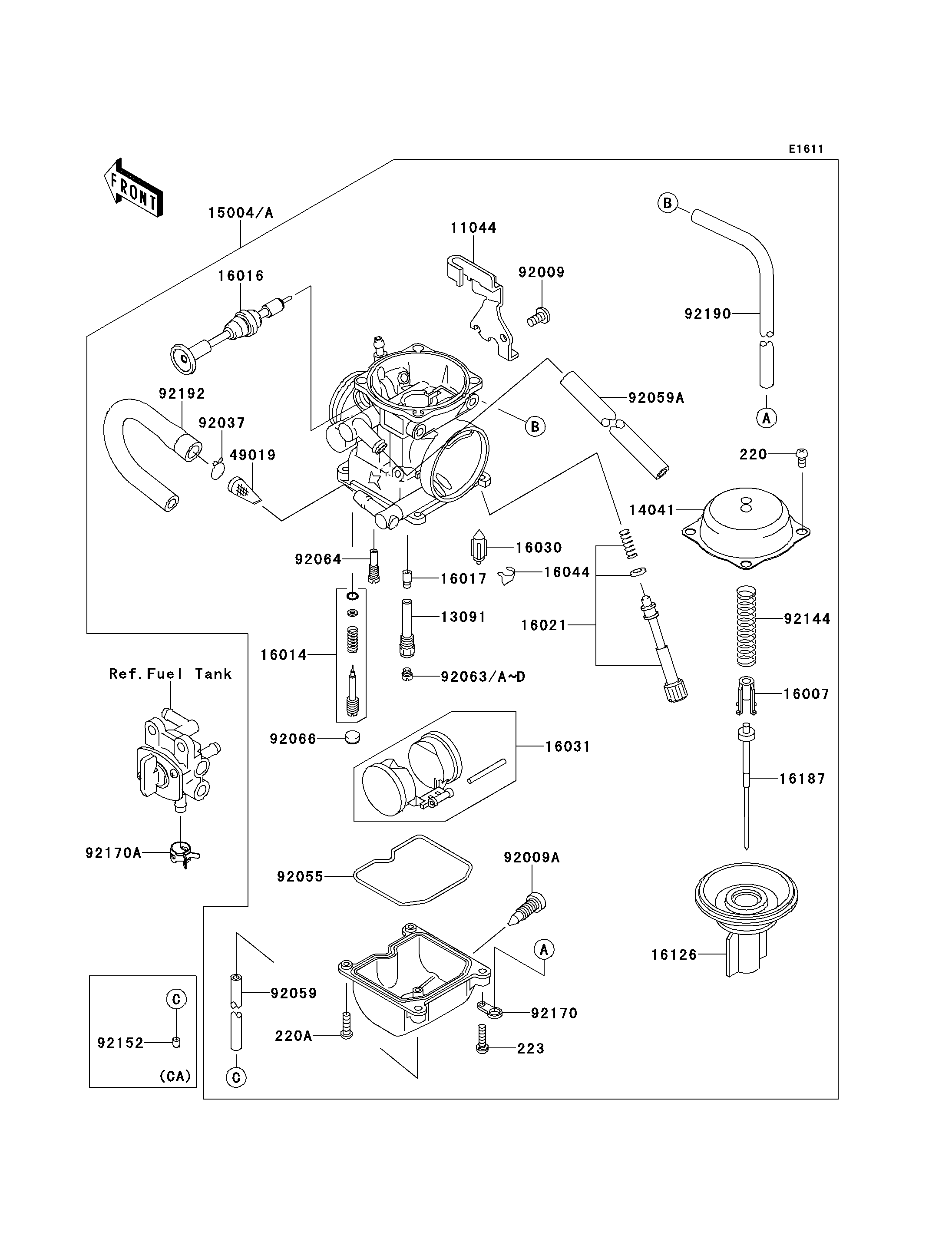

2014 KLX®250S - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
11044
11044
13091
13091
14041
14041
16007
16007
16014
16014
16016
16016
16017
16017
16021
16021
16030
16030
16031
16031
16044
16044
16126
16126
16187
16187
49019
49019
92009
92009
92009A
92009A
92037
92037
92055
92055
92059
92059
92059A
92059A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
92063D
92063D
92064
92064
92066
92066
92144
92144
92170
92170
92170A
92170A
92190
92190
220
220
220A
220A
223
223
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1353 1
HOLDER,NEEDLE JET 13091 13091-1332 1
COVER-COMP,MIXING,INSIDE 14041 14041-1061 1
SEAT-SPRING,VALVE 16007 16007-1117 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-0013 1
JET-NEEDLE 16017 16017-1439 1
SCREW-THROTTLE STOP 16021 16021-1201 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1339 1
NEEDLE-JET,NNLA 16187 16187-0284 1
FILTER-FUEL 49019 49019-1097 1
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,6X0.75 92009A 92009-1551 1
CLAMP,FUEL TUBE 92037 92037-1075 1
RING-O,FLOAT CHAMBER 92055 92055-1222 1
TUBE,3.5X6.5X330 92059 92059-1110 1
TUBE,6.5X9.5X350 92059A 92059-1237 1
JET-MAIN,#118 92063 92063-1071 1
JET-MAIN,#120 92063A 92063-1072 1 (OPTION)
JET-MAIN,#122 92063B 92063-1073 1 (OPTION)
JET-MAIN,#112 92063C 92063-1117 1 (OPTION)
JET-MAIN,#115 92063D 92063-1118 1 (OPTION)
JET-PILOT,#35 92064 92064-1209 1
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1
SPRING,VACUUM VALVE 92144 92144-1538 1
CLAMP,TUBE 92170 92170-1496 1
CLAMP 92170A 92170-1872 1
TUBE,5X8X430 92190 92190-1560 1
SCREW-PAN-CROS,4X8 220 220AA0408 4
SCREW-PAN-CROS,4X14 220A 220AA0414 3
SCREW-PAN-WS-CROS,4X16 223 223AA0416 1
TUBE,FUEL,L=150 92192 92192-0742 1
CARBURETOR-ASSY,CVK34 15004 15004-0023 1 CNUS
CARBURETOR-ASSY,CVK34 15004A 15004-0029 1 CA
COLLAR,0.8X4.2X5.0 92152 92152-0218 1 CA
