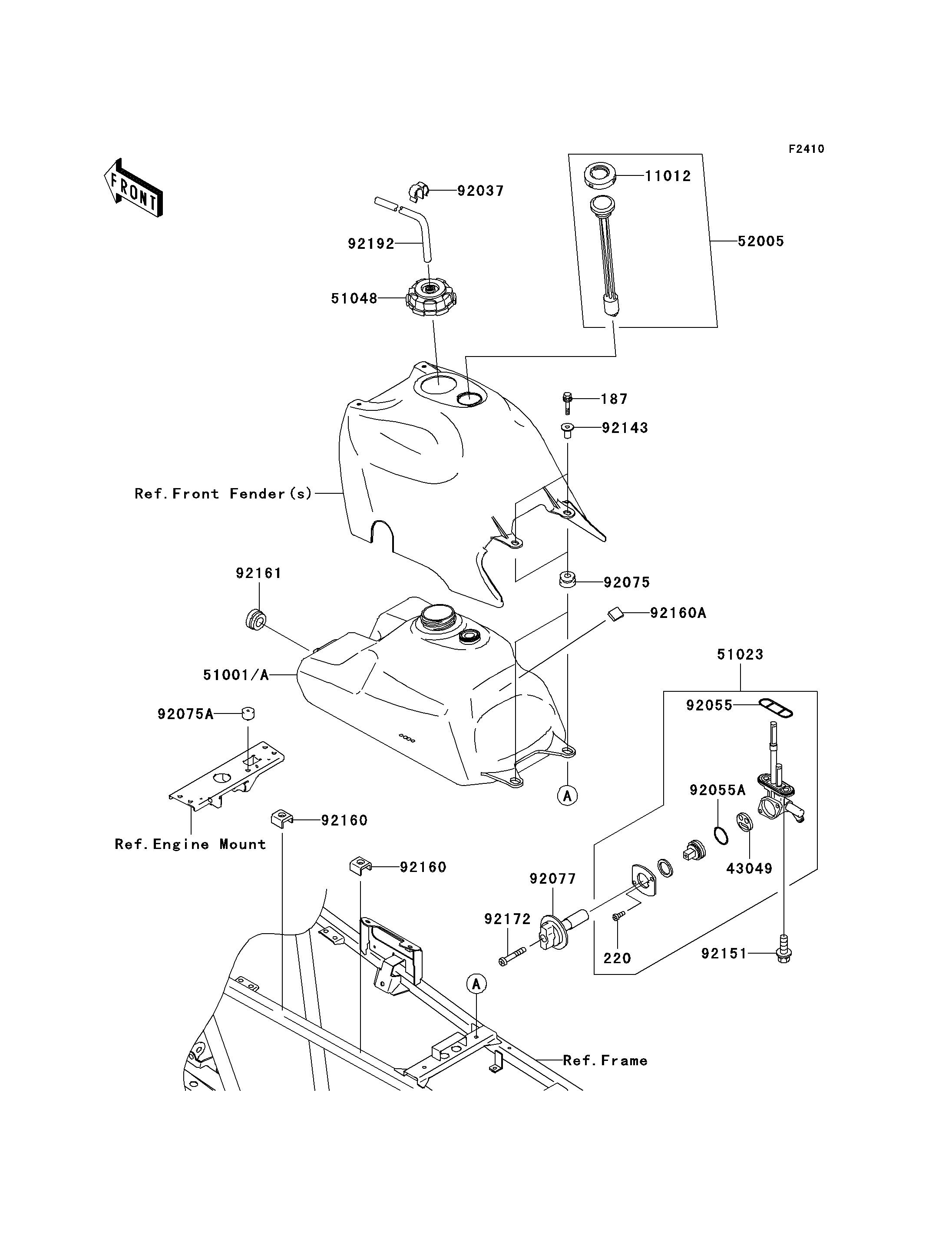

2006 Prairie 360 4X4 - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
187
220
11012
43049
51001A
51023
51048
52005
92037
92055
92055A
92075
92075A
92077
92143
92151
92160
92160
92160A
92161
92172
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WSP,6X35 187 187BA0635 2
SCREW-PAN-CROS,3X8 220 220AA0308 2
CAP,FUEL GAUGE 11012 11012-1627 1
PACKING,TAP VALVE 43049 43049-1091 1
TANK-COMP-FUEL 51001A 51001-7502 1
TAP-ASSY,FUEL 51023 51023-1402 1
CAP-ASSY-TANK,FUEL 51048 51048-1133 1
GAUGE,FUEL 52005 52005-7501 1
CLAMP 92037 92037-1458 1
RING-O,FUEL TAP PACKING 92055 92055-1112 1
RING-O,TAP LEVER 92055A 92055-1419 1
DAMPER 92075 92075-1787 2
DAMPER 92075A 92075-1876 1
KNOB,FUEL TAP 92077 92077-1098 1
COLLAR,L=19.6 92143 92143-1100 2
BOLT,6X14 92151 92151-1198 2
DAMPER 92160 92160-1773 2
DAMPER,25X25 92160A 92160-3864 1
DAMPER 92161 92161-7502 1
SCREW,4X25 92172 92172-1073 1
TUBE,5X9X450 92192 92192-0750 1
