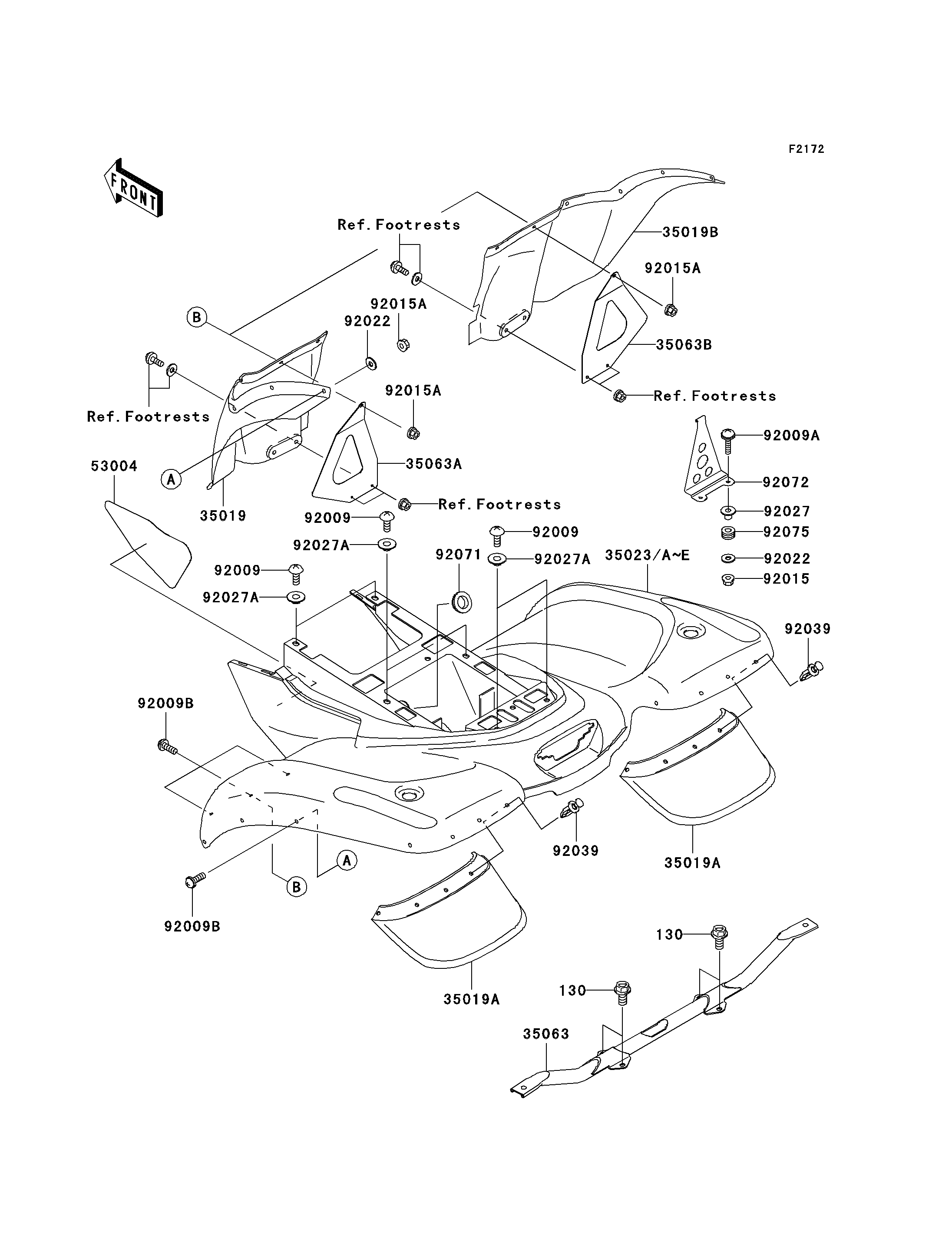

2006 Prairie 360 4X4 - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
35019
35019A
35019A
35019B
35023B
35023C
35063
35063A
35063B
53004
92009
92009
92009
92009A
92009B
92009B
92015
92015A
92015A
92015A
92022
92022
92027
92027A
92027A
92027A
92039
92039
92071
92072
92075
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16 130 130BB0816 4
FLAP,RR,FR,LH,F.BLACK 35019 35019-1334-6Z 1
FLAP,RR,RR,F.BLACK 35019A 35019-1336-6Z 2
FLAP,RR,FR,RH,F.BLACK 35019B 35019-1375-6Z 1
FENDER-REAR,A.RED 35023B 35023-1579-260 1
FENDER-REAR,W.GREEN 35023C 35023-1579-286 1
STAY,REAR FENDER 35063 35063-7505 1
STAY,REAR FENDER,LH 35063A 35063-7508 1
STAY,REAR FENDER,RH 35063B 35063-7509 1
MAT,REAR FENDER 53004 53004-1173 1
SCREW,TAPPING,6X16 92009 92009-1166 6
SCREW,6X25 92009A 92009-1465 2
SCREW,6X16 92009B 92009-1621 12
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,FLANGED,6MM 92015A 92015-1367 12
WASHER,6.5X16X1.0 92022 92022-1093 12
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
COLLAR,L=4.7 92027A 92027-1964 6
RIVET 92039 92039-1229 10
GROMMET 92071 92071-1237 1
BAND 92072 92072-1361 1
DAMPER,CASE 92075 92075-222 2
