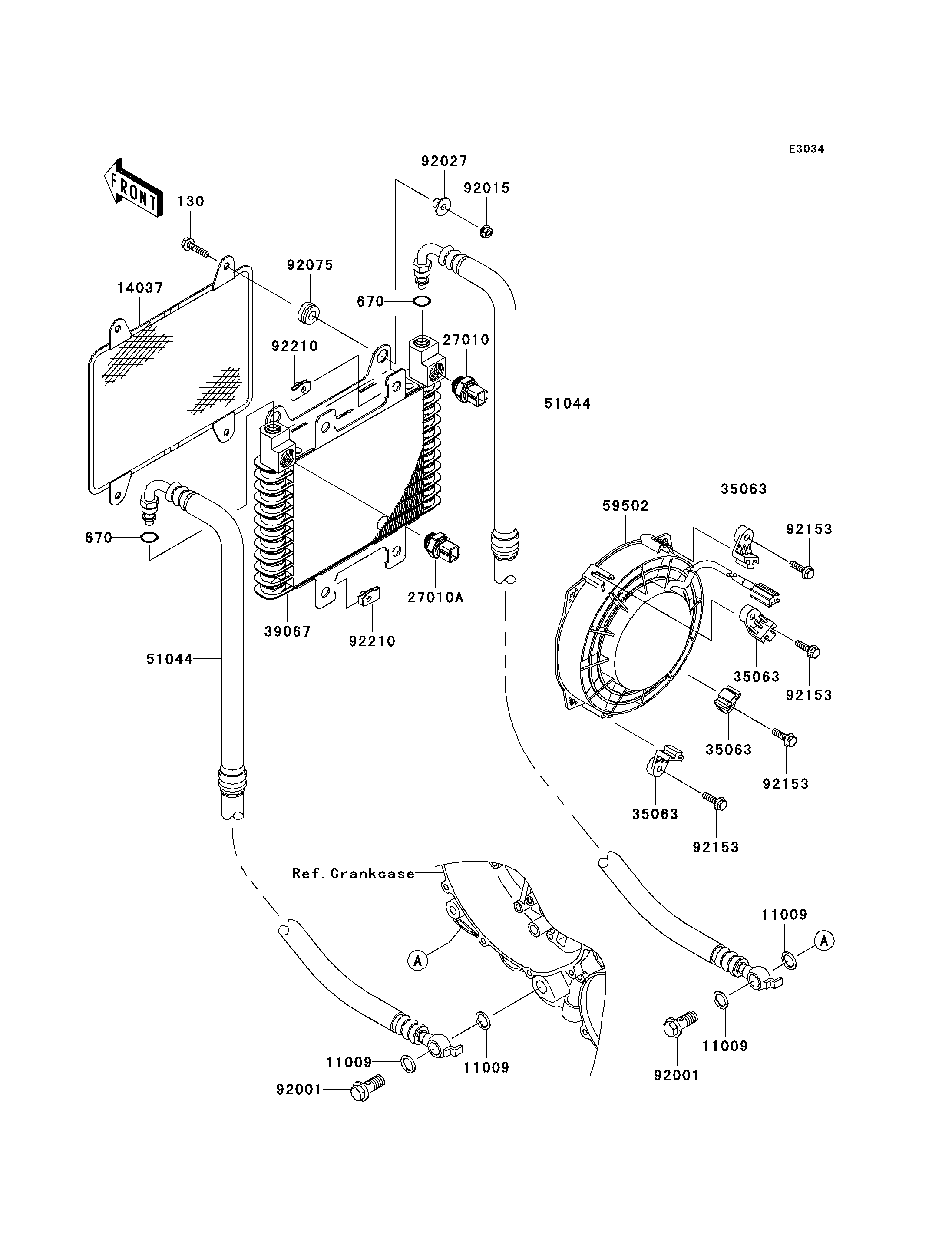

2006 Prairie 360 4X4 - Oil Cooler

DOWNLOAD PDF
SELECT A NEW PART
130
670
670
11009
11009
11009
11009
14037
27010
27010A
35063
35063
35063
35063
39067
51044
51044
59502
92001
92001
92015
92027
92075
92153
92153
92153
92153
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 4
O RING,8MM 670 670D1508 2
GASKET,14X19.5X1.4 11009 11009-1461 4
SCREEN,OIL COOLER 14037 14037-1313 1
SWITCH,OIL COOLER,RH 27010 27010-0005 1
SWITCH,OIL COOLER,LH 27010A 27010-0006 1
STAY 35063 35063-1212 4
COOLER-OIL 39067 39067-0002 1
TUBE-ASSY,L=1080 51044 51044-1227 2
FAN-ASSY 59502 59502-1138 1
BOLT,14X28.5 92001 92001-1930 2
NUT,FLANGED,6MM 92015 92015-1367 4
COLLAR 92027 92027-1767 4
DAMPER 92075 92075-277 4
BOLT,6X22 92153 92153-1087 4
NUT 92210 92210-1331 4
