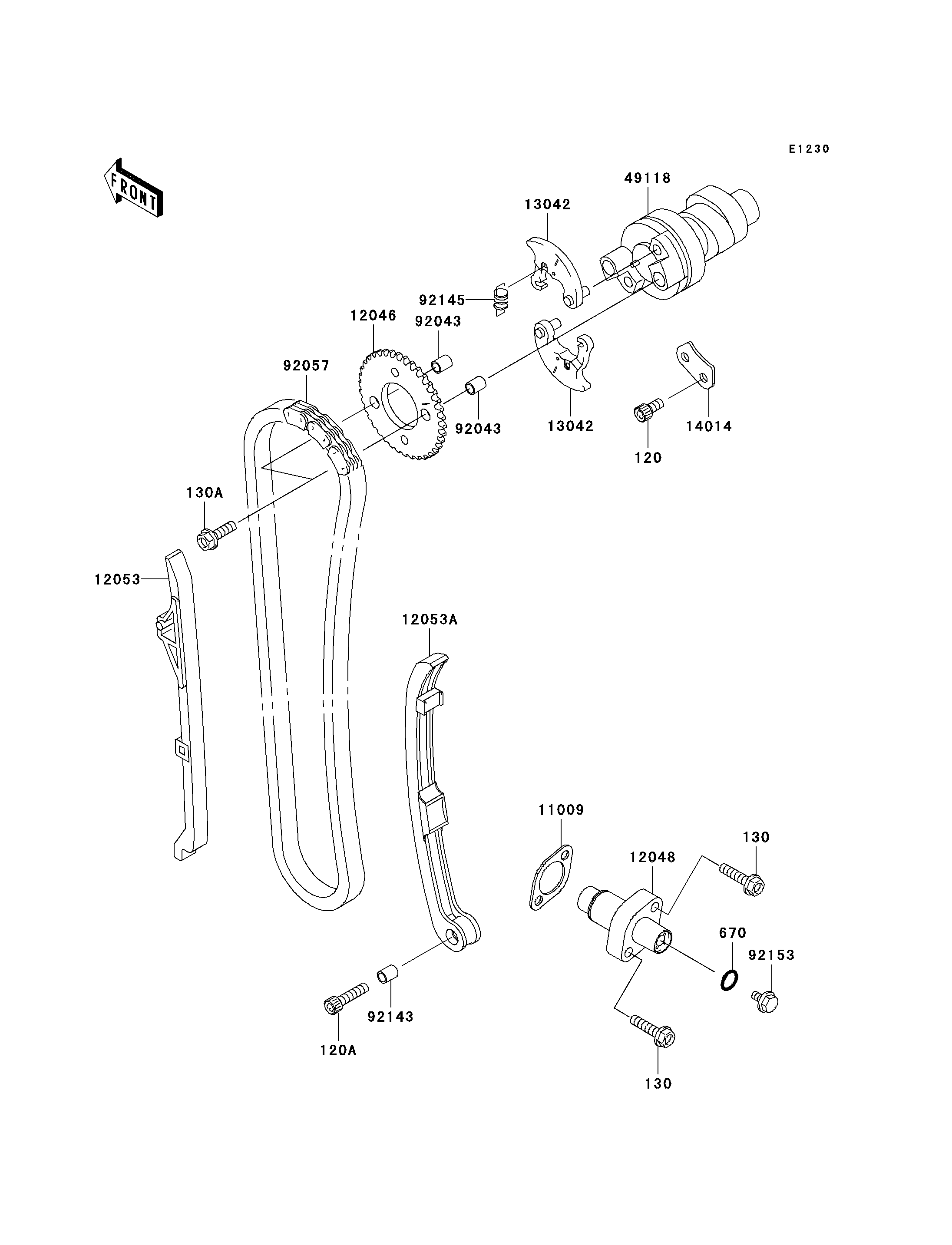

2006 Prairie 360 4X4 - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
130
130A
670
11009
12046
12048
12053
12053A
13042
13042
14014
49118
92043
92043
92057
92143
92145
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X12 120 120CA0612 2
BOLT-SOCKET,6X25 120A 120CA0625 1
BOLT-FLANGED,6X25 130 130BB0625 2
BOLT-FLANGED,6X20 130A 130CD0620 2
O RING 670 670D2010 1
GASKET,TENSIONER 11009 11009-1858 1
SPROCKET,38T 12046 12046-1225 1
TENSIONER-ASSY 12048 12048-1193 1
GUIDE-CHAIN,FR 12053 12053-1423 1
GUIDE-CHAIN,RR 12053A 12053-1451 1
WEIGHT,DECOMP 13042 13042-1149 2
PLATE-POSITION 14014 14014-1095 1
CAMSHAFT-COMP 49118 49118-1217 1
PIN,DOWEL,8X10 92043 92043-1302 2
CHAIN,CAM,82RH2010-118L 92057 92057-1256 1
COLLAR,6X8X10.2 92143 92143-1253 1
SPRING,DECOMP 92145 92145-1495 1
BOLT,6X6 92153 92153-1380 1
