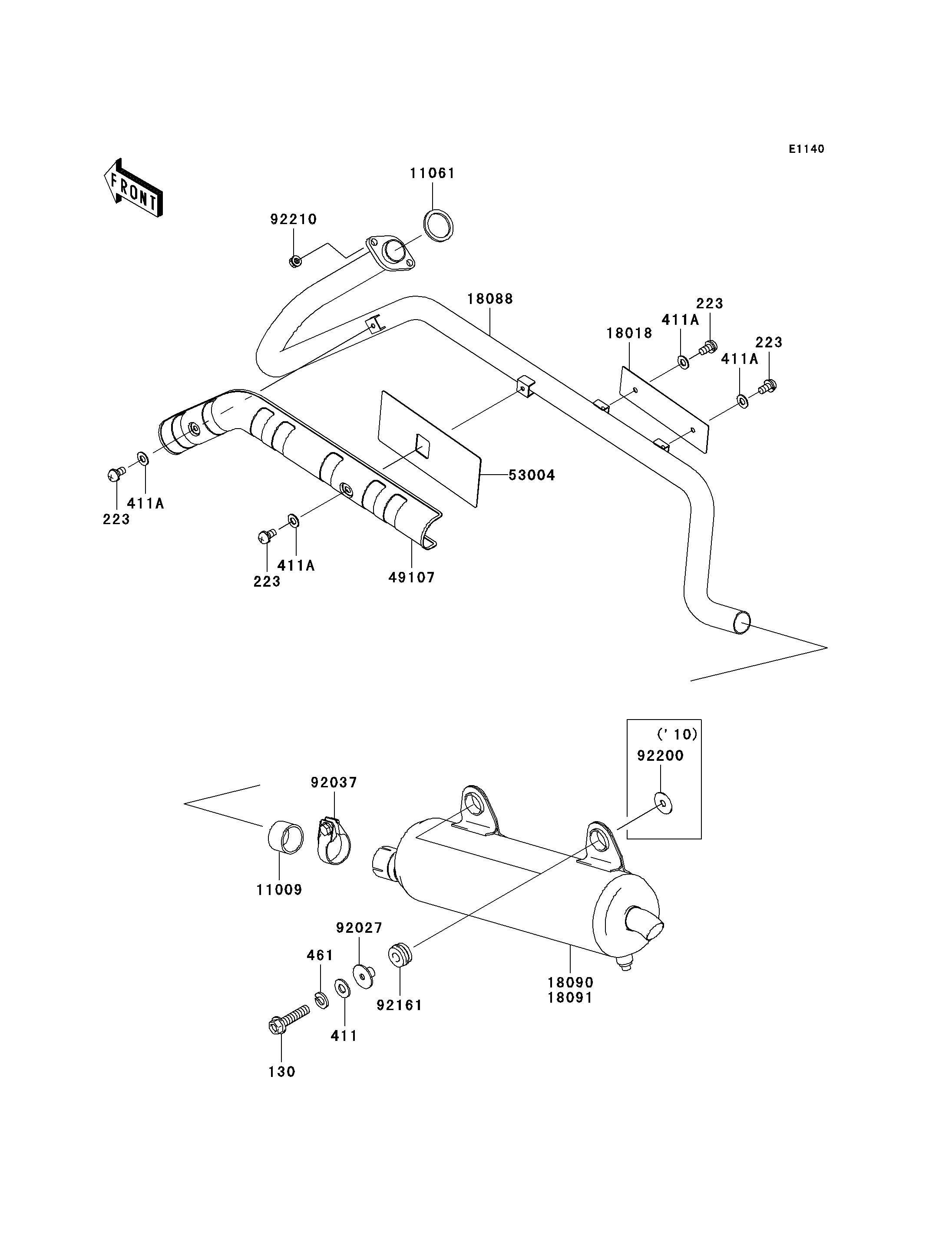

2006 Prairie 360 4X4 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
223
223
223
223
411
411A
411A
411A
411A
461
11009
11061
18018
18088
18090
49107
53004
92027
92037
92161
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X35 130 130CD0835 2
SCREW-PAN-WS-CROS,6X12 223 223AB0612 4
WASHER-PLAIN 411 411AA0800 2
WASHER-PLAIN,6.5X13X1 411A 411AB0600 4
WASHER-SPRING,8MM 461 461DA0800 2
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,EXHAUST 11061 11061-1053 1
PLATE-HEAT GUARD,EXHAUST PIPE 18018 18018-1135 1
PIPE-EXHAUST 18088 18088-1215 1
BODY-COMP-MUFFLER 18090 18090-1954 1
COVER-EXHAUST PIPE 49107 49107-1222 1
MAT 53004 53004-1181 1
COLLAR,MUFFLER 92027 92027-1981 2
CLAMP,42MM 92037 92037-1349 1
DAMPER,MUFFLER 92161 92161-1292 2
NUT,8MM 92210 92210-1242 2
