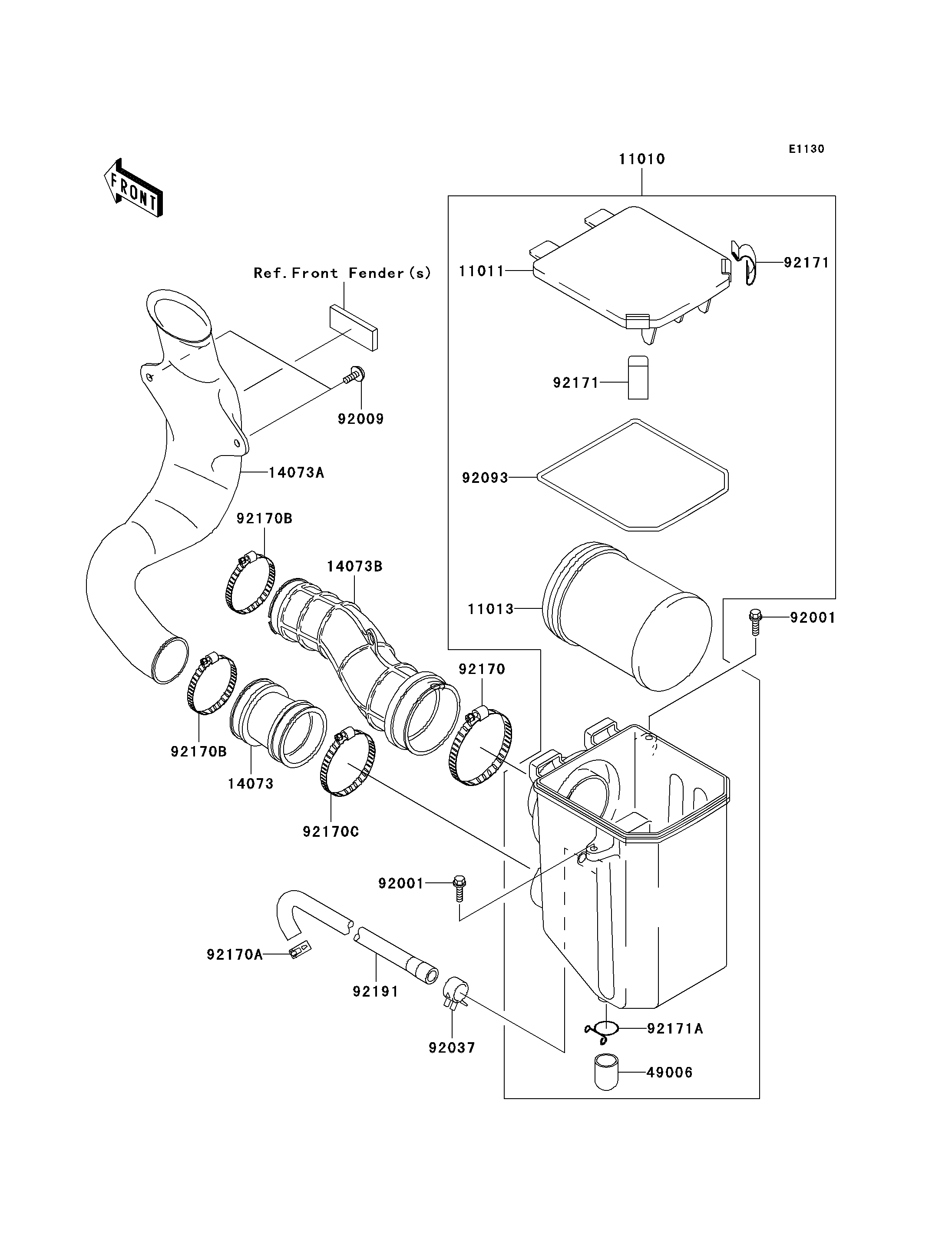

2006 Prairie 360 4X4 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11011
11013
14073
14073A
14073B
49006
92001
92001
92009
92037
92093
92170
92170A
92170B
92170B
92170C
92171
92171
92171A
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1766 1
CASE-AIR FILTER,UPP 11011 11011-1639 1
ELEMENT-AIR FILTER 11013 11013-1292 1
DUCT,A/C-INLET 14073 14073-1802 1
DUCT,INLET 14073A 14073-1803 1
DUCT,A/C-CARBURETOR 14073B 14073-1823 1
BOOT 49006 49006-1359 1
BOLT,WP,6X20 92001 92001-1460 2
SCREW,TAPPING,6X16 92009 92009-1166 2
CLAMP 92037 92037-1678 1
SEAL,AIR FILTER CASE 92093 92093-1550 1
CLAMP 92170 92170-1307 1
CLAMP 92170A 92170-1491 1
CLAMP 92170B 92170-1674 2
CLAMP 92170C 92170-1764 1
CLAMP,AIR FILTER CASE 92171 92171-1426 2
CLAMP 92171A 92171-1427 1
TUBE,AIR CLEANER 92191 92191-1644 1
