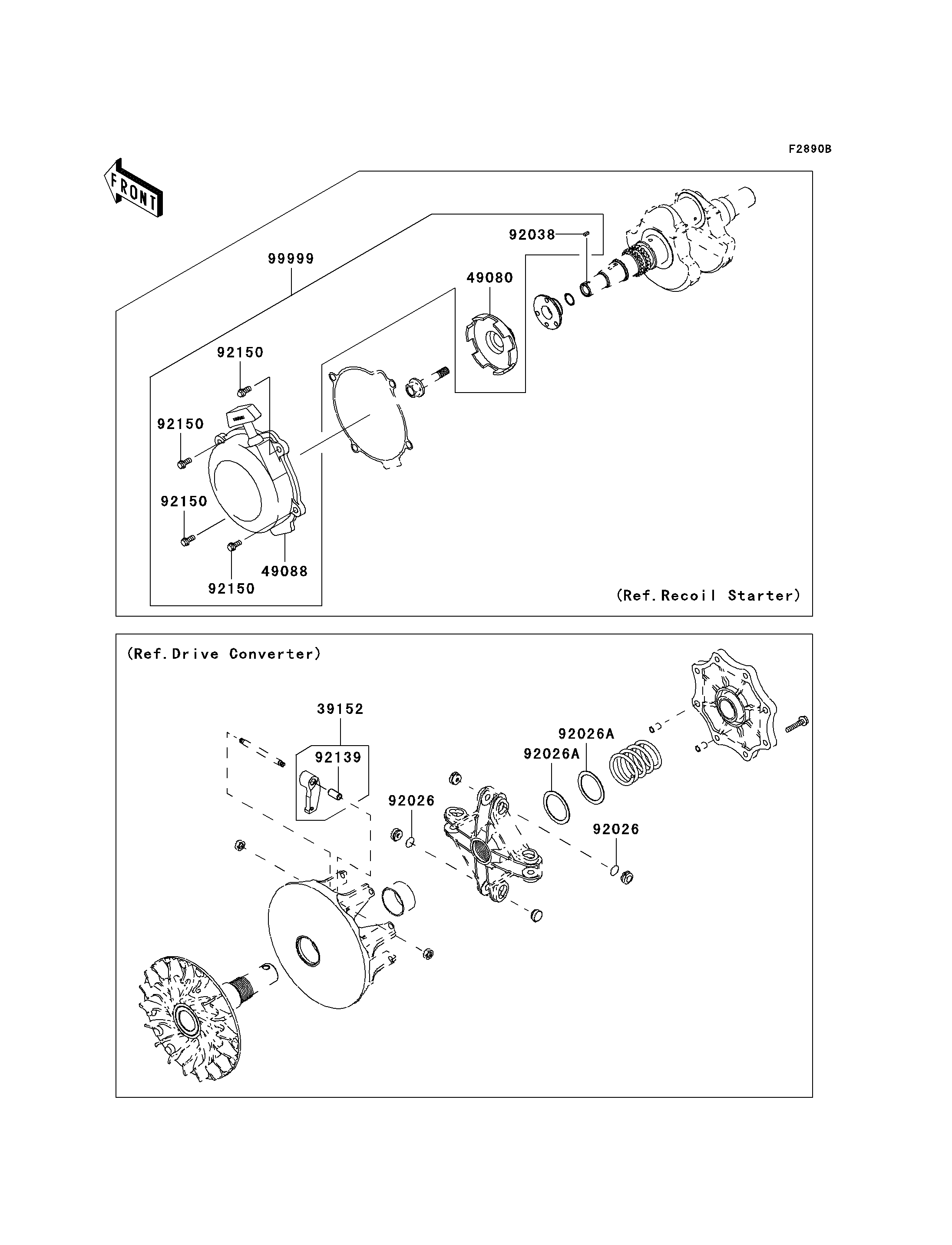

2010 Brute Force® 650 4x4 - Optional Parts(DAF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WEIGHT-RAMP | 39152 | 39152-0028 | 4 | (OPTION) | |
| PULLEY-STARTING | 49080 | 49080-1057 | 1 | (OPTION) | |
| STARTER-RECOIL | 49088 | 49088-1056 | 1 | (OPTION) | |
| SPACER,T=0.1 | 92026 | 92026-0038 | 2 | (OPTION) | |
| SPACER,39X49.5X1.0 | 92026A | 92026-1603 | 2 | (OPTION) | |
| KEY,SUNK | 92038 | 92038-1051 | 1 | (OPTION) | |
| BUSHING | 92139 | 92139-0215 | 4 | (OPTION) | |
| BOLT,6X14 | 92150 | 92150-1916 | 4 | (OPTION) | |
| KIT.,RECOIL STARTER | 99999 | 99999-0244 | 1 | (OPTION) |
| WEIGHT-RAMP | |
| REF # | 39152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| PULLEY-STARTING | |
| REF # | 49080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| STARTER-RECOIL | |
| REF # | 49088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPACER,T=0.1 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SPACER,39X49.5X1.0 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KEY,SUNK | |
| REF # | 92038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BUSHING | |
| REF # | 92139 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KIT.,RECOIL STARTER | |
| REF # | 99999 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
