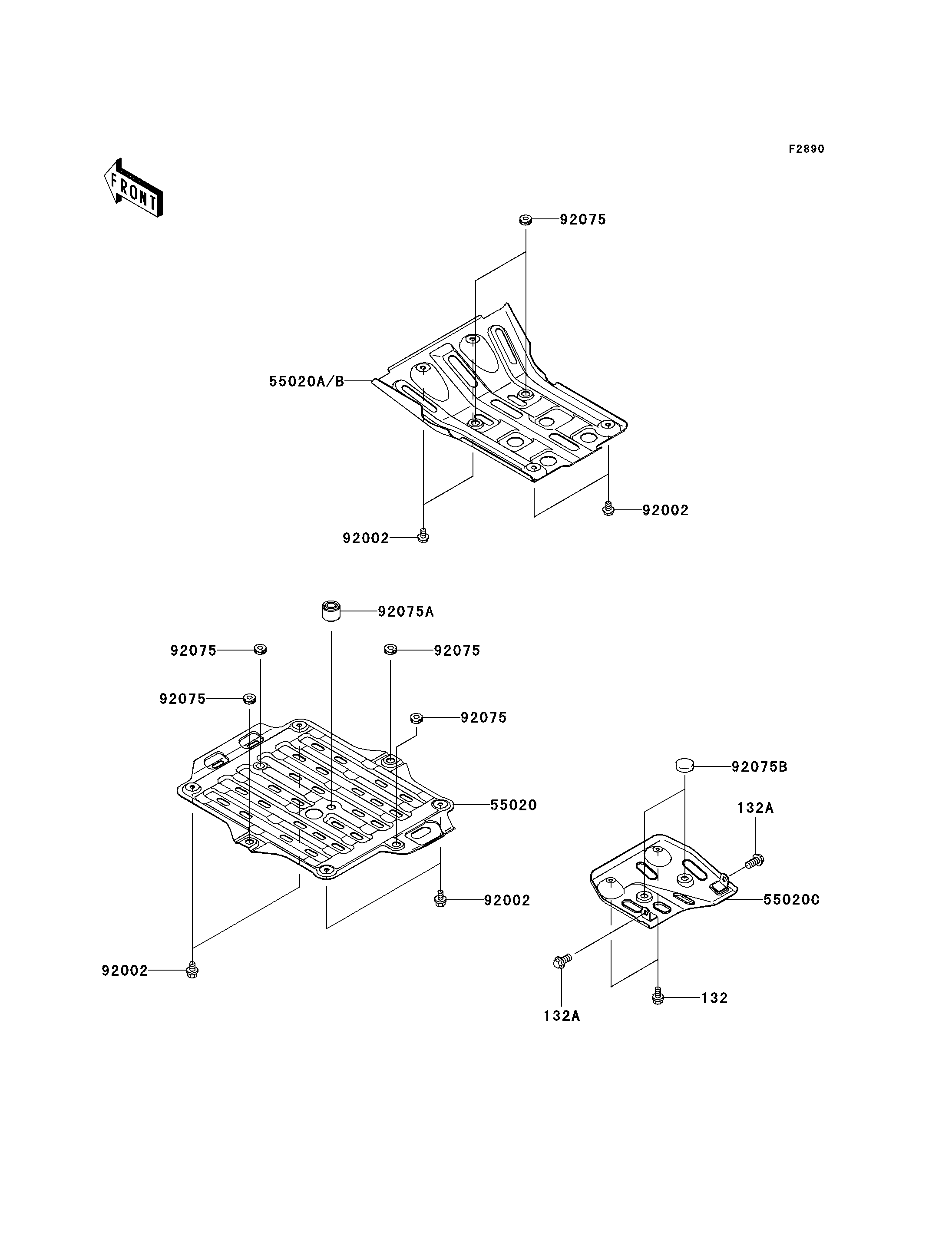

2006 Brute Force 650 4x4 - Optional Parts(Guard)
132
132A
132A
55020
55020A
55020C
92002
92002
92002
92002
92075
92075
92075
92075
92075
92075A
92075B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BB0612 | 2 | ||
| BOLT-FLANGED-SMALL,8X16 | 132A | 132BB0816 | 2 | ||
| GUARD,ENGINE,UNDER | 55020 | 55020-1712 | 1 | ||
| GUARD,FRONT SKID,F.BLACK | 55020A | 55020-1748-21 | 1 | ||
| GUARD,SWING ARM | 55020C | 55020-1756 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 8 | ||
| DAMPER | 92075 | 92075-051 | 6 | ||
| DAMPER | 92075A | 92075-1002 | 1 | ||
| DAMPER | 92075B | 92075-157 | 2 |
| BOLT-FLANGED-SMALL,6X12 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,8X16 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE,UNDER | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,FRONT SKID,F.BLACK | |
| REF # | 55020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,SWING ARM | |
| REF # | 55020C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
