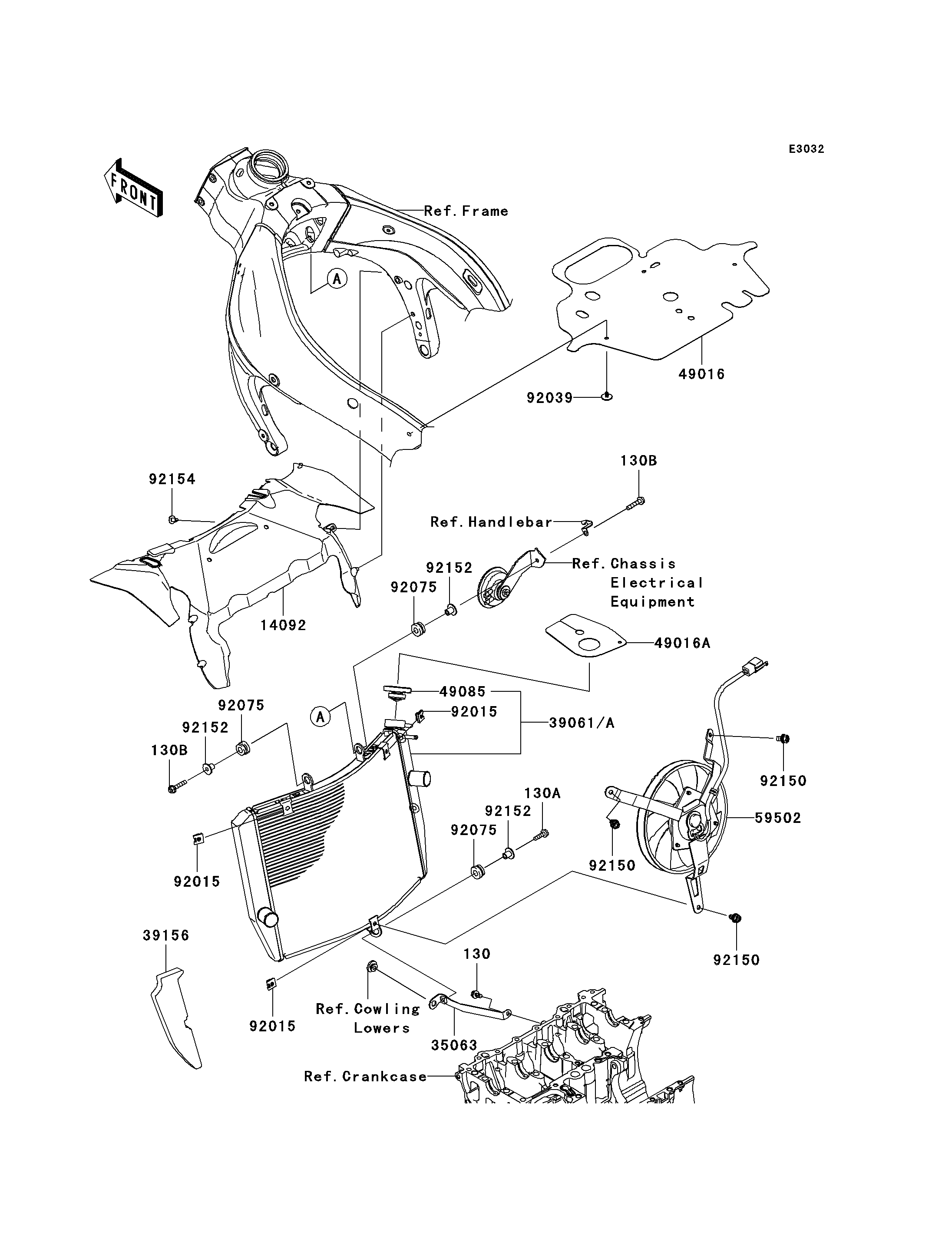

Parts Diagrams |
130
130A
130B
130B
14092
35063
39156
49016
49016A
49085
59502
92015
92015
92015
92039
92075
92075
92075
92150
92150
92150
92152
92152
92152
92154
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X14 | 130 | 130CA0614 | 1 | ||
| BOLT-FLANGED,6X22 | 130A | 130CA0622 | 1 | ||
| BOLT-FLANGED,6X30 | 130B | 130CA0630 | 2 | ||
| COVER,RAD. UPP | 14092 | 14092-0004 | 1 | ||
| STAY,RAD. LWR | 35063 | 35063-0592 | 1 | ||
| PAD,RAD. LH | 39156 | 39156-0467 | 1 | ||
| COVER-SEAL,ENG RR | 49016 | 49016-0055 | 1 | ||
| COVER-SEAL,RESONATOR | 49016A | 49016-0067 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1066 | 1 | ||
| FAN-ASSY | 59502 | 59502-0046 | 1 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| RIVET | 92039 | 92039-0065 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| COLLAR | 92152 | 92152-1074 | 3 | ||
| BOLT,SOCKET,6X12 | 92154 | 92154-0204 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0149 | 1 | CNUS | |
| RADIATOR-ASSY | 39061A | 39061-0161 | 1 | CA |
| BOLT-FLANGED,6X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X22 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X30 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER,RAD. UPP | |
| REF # | 14092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RAD. LWR | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,RAD. LH | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,ENG RR | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,RESONATOR | |
| REF # | 49016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
