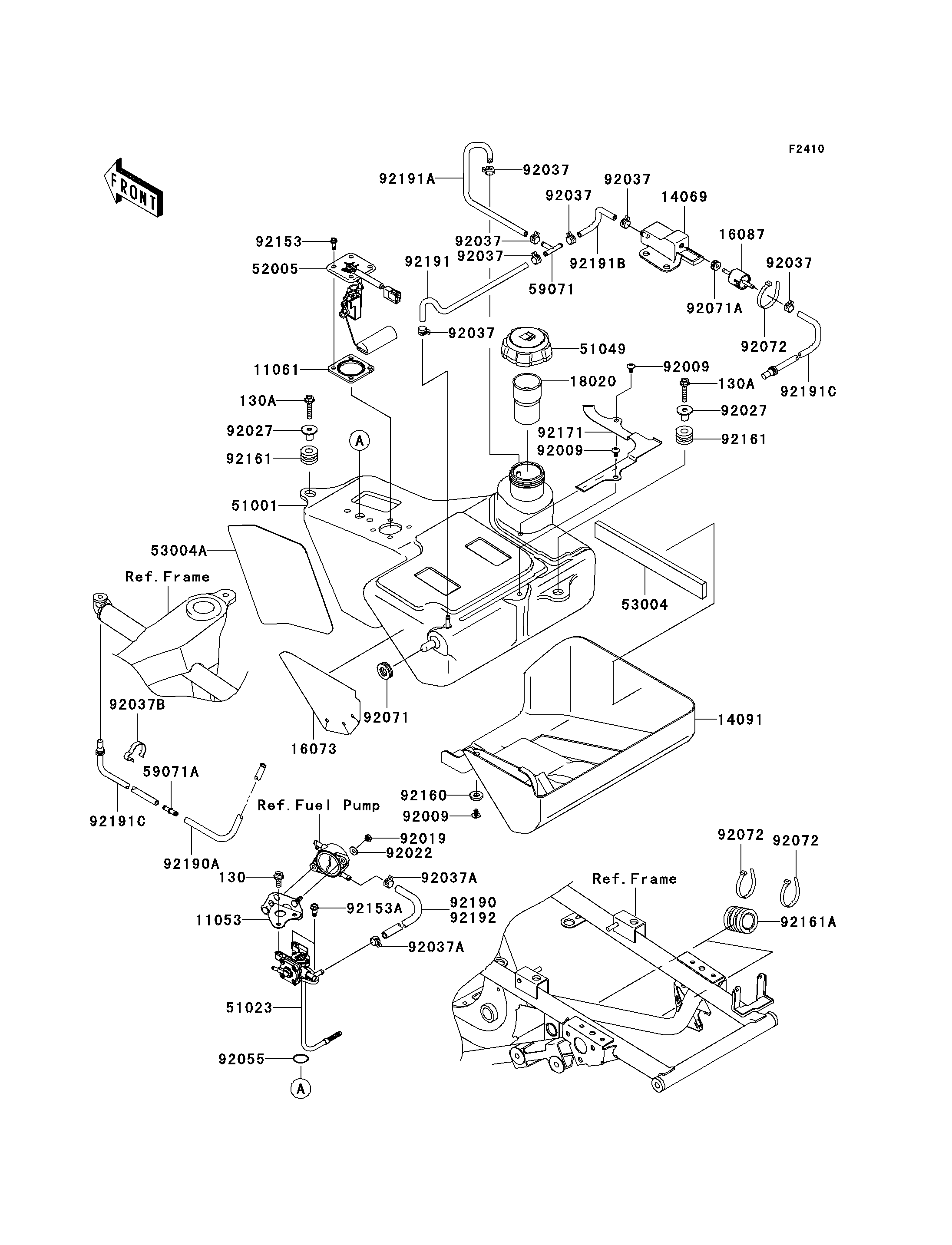

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
130
130
11053
11053
11061
11061
14069
14069
14091
14091
16073
16073
16087
16087
18020
18020
51001
51001
51023
51023
51049
51049
52005
52005
53004
53004
53004A
53004A
59071
59071
59071A
59071A
92009
92009
92009
92009
92009
92009
92019
92019
92022
92022
92027
92027
92027
92027
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92055
92055
92071
92071
92071A
92071A
92072
92072
92072
92072
92072
92072
92153
92153
92153A
92153A
92160
92160
92161
92161
92161
92161
92161A
92161A
92171
92171
92190
92190
92190A
92190A
92191
92191
92191A
92191A
92191B
92191B
92191C
92191C
92191C
92191C
130A
130A
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | ||
| BRACKET,FUEL PUMP | 11053 | 11053-1639 | 1 | ||
| GASKET,FUEL GAUGE | 11061 | 11061-0071 | 1 | ||
| BREATHER,TANK | 14069 | 14069-1069 | 1 | ||
| COVER,FUEL TANK | 14091 | 14091-0405 | 1 | ||
| INSULATOR,FUEL TANK COVER | 16073 | 16073-0022 | 1 | ||
| VALVE-CHECK | 16087 | 16087-0003 | 1 | ||
| BAFFLE,FUEL TANK CAP | 18020 | 18020-1278 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-0197 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-0013 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-0001 | 1 | ||
| GAUGE,FUEL | 52005 | 52005-0016 | 1 | ||
| MAT,FUEL TANK COVER | 53004 | 53004-1161 | 1 | ||
| MAT,FUEL TANK | 53004A | 53004-1165 | 1 | ||
| JOINT | 59071 | 59071-3705 | 1 | ||
| JOINT | 59071A | 59071-3717 | 1 | ||
| SCREW,6X12 | 92009 | 92009-1480 | 3 | ||
| NUT,LOCK,6MM | 92019 | 92019-008 | 2 | ||
| WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 2 | ||
| COLLAR,L=16.1 | 92027 | 92027-1847 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-1461 | 7 | ||
| CLAMP,TUBE | 92037A | 92037-1505 | 2 | ||
| CLAMP,HOSE | 92037B | 92037-1552 | 1 | ||
| RING-O,FUEL TAP | 92055 | 92055-0081 | 1 | ||
| GROMMET,AIR SUCTION VALVE | 92071 | 92071-1249 | 1 | ||
| GROMMET | 92071A | 92071-1266 | 1 | ||
| BAND,L=188 | 92072 | 92072-1239 | 5 | ||
| BOLT,FLANGED,5MM | 92153 | 92153-0361 | 4 | ||
| BOLT,6MM | 92153A | 92153-0824 | 2 | ||
| DAMPER | 92160 | 92160-1017 | 1 | ||
| DAMPER | 92161 | 92161-0106 | 2 | ||
| DAMPER,FUEL TANK,RR | 92161A | 92161-1111 | 2 | ||
| CLAMP,TUBE | 92171 | 92171-0495 | 1 | ||
| TUBE,6.8X10.8X140 | 92190 | 92190-1073 | 1 | ||
| TUBE,5X9X530 | 92190A | 92190-1256 | 1 | ||
| TUBE,TANK-FRONT | 92191 | 92191-1639 | 1 | ||
| TUBE,TANK-REAR | 92191A | 92191-1640 | 1 | ||
| TUBE,5X9X160 | 92191B | 92191-1641 | 1 | ||
| TUBE,TANK BREATHER | 92191C | 92191-1666 | 2 | ||
| BOLT-FLANGED,6X30 | 130A | 130BA0630 | 2 |
