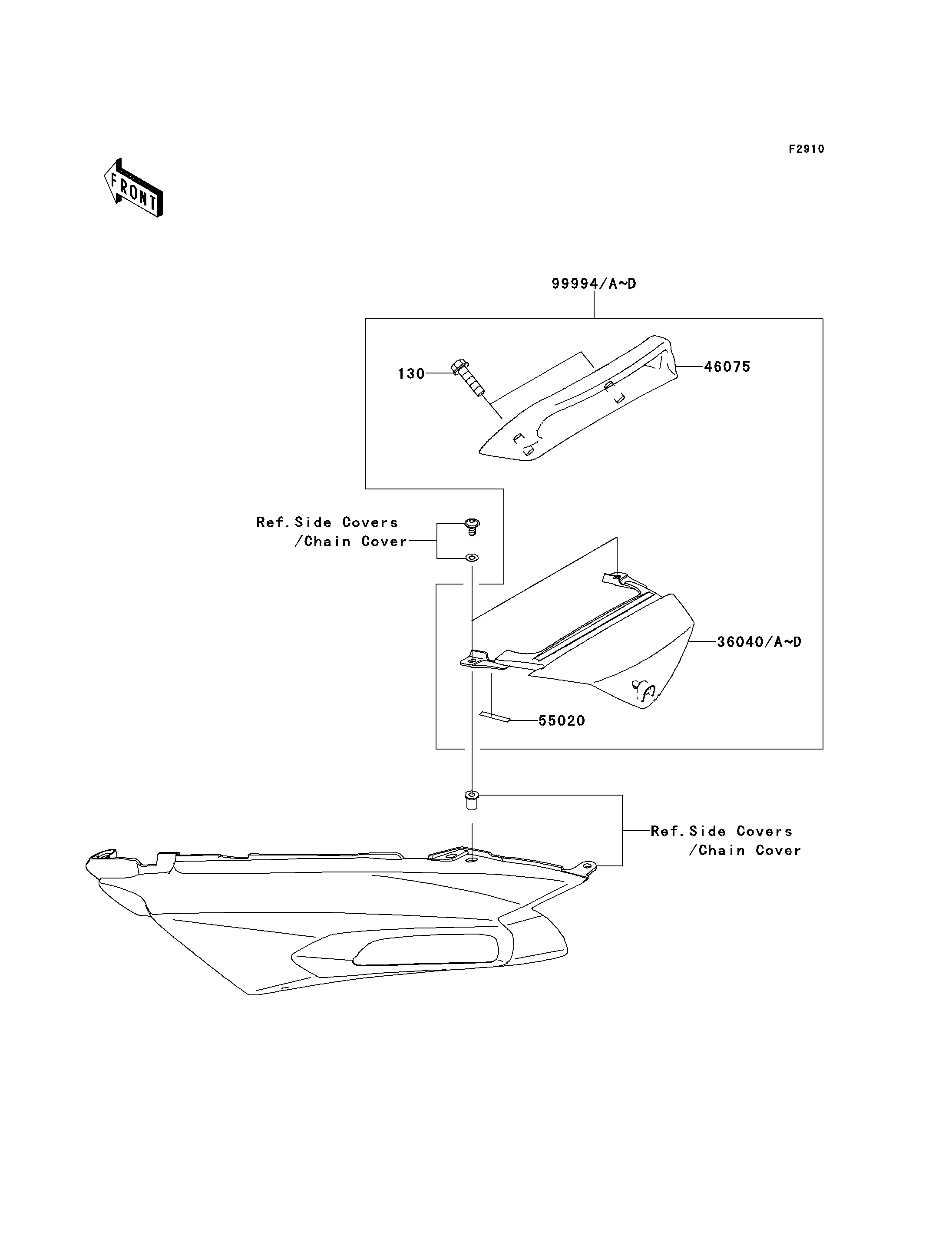

2013 NINJA® ZX™-14R - Accessory(Tail Grip)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X35 | 130 | 130BA0835 | 2 | ||
| COVER-TAIL,CNT,P.RED | 36040 | 36040-0059-234 | 1 | ||
| GRIP,TAIL,F.BLACK | 46075 | 46075-1104-21 | 1 | ||
| GUARD,TAIL COVER | 55020 | 55020-0277 | 2 | ||
| KIT,TAIL GRIP,P.RED | 99994 | 99994-0341-234 | 1 | ||
| COVER-TAIL,CNT,P.S.WHITE | 36040B | 36040-0059-25Y | 1 | CAUS | |
| KIT,TAIL GRIP,P.S.WHITE | 99994B | 99994-0341-25Y | 1 | CAUS |
| BOLT-FLANGED,8X35 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,CNT,P.RED | |
| REF # | 36040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,TAIL,F.BLACK | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,TAIL COVER | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KIT,TAIL GRIP,P.RED | |
| REF # | 99994 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,CNT,P.S.WHITE | |
| REF # | 36040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
| KIT,TAIL GRIP,P.S.WHITE | |
| REF # | 99994B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
