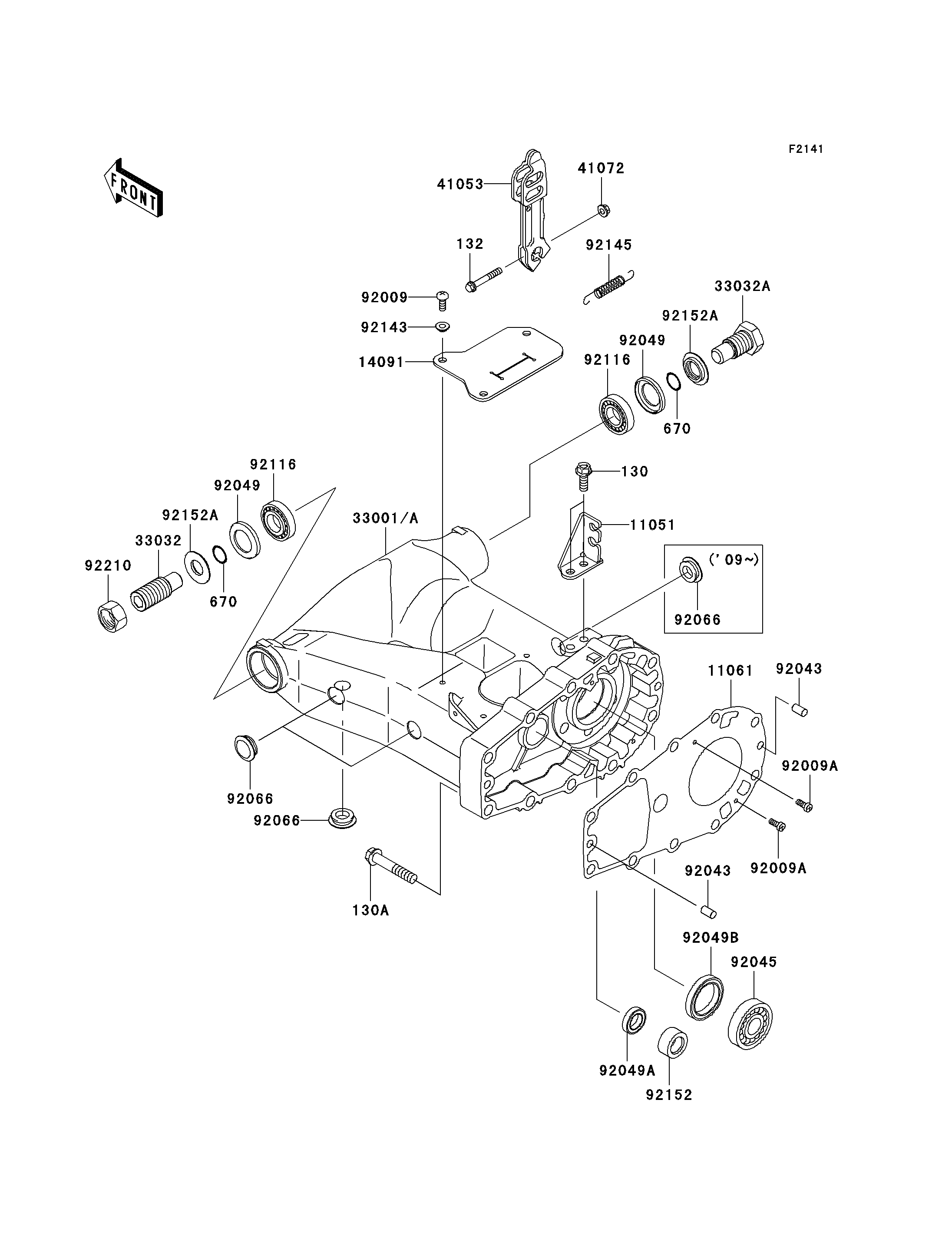

2006 Brute Force 650 4x4 - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
130
130A
132
670
670
11051
11061
14091
33001
33032
33032A
41053
41072
92009
92009A
92009A
92043
92043
92045
92049
92049
92049A
92049B
92066
92066
92066
92116
92116
92143
92145
92152
92152A
92152A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X22 130 130BB0822 2
BOLT-FLANGED,10X55 130A 130CA1055 10
BOLT-FLANGED-SMALL,6X40 132 132BA0640 1
O RING,16MM 670 670B2016 2
BRACKET,CABLE 11051 11051-1762 1
GASKET,SWING ARM 11061 11061-1065 1
COVER 14091 14091-7508 1
ARM-COMP-SWING 33001 33001-0008 1
SHAFT-SWING ARM,LEFT SIDE 33032 33032-1197 1
SHAFT-SWING ARM,RIGHT SIDE 33032A 33032-1200 1
LEVER-BRAKE CAM 41053 41053-1094 1
NUT,6MM 41072 41072-007 1
SCREW,TAPPING,6X16 92009 92009-1166 3
SCREW,4X10 92009A 92009-1936 2
PIN,8X14 92043 92043-1567 2
BEARING-BALL,TMBO/28C3 92045 92045-0093 1
SEAL-OIL,26406 92049 92049-1030 2
SEAL-OIL,TC17X28X6 92049A 92049-1537 1
SEAL-OIL,HTC35X48X7 92049B 92049-1538 1
PLUG 92066 92066-1534 3
BEARING-ROLLER,4T30203E1 92116 92116-1001 2
COLLAR 92143 92143-1331 3
SPRING,BRAKE LEVER RETURN 92145 92145-1313 1
COLLAR 92152 92152-1240 1
COLLAR 92152A 92152-1356 2
NUT,22MM 92210 92210-0190 1
