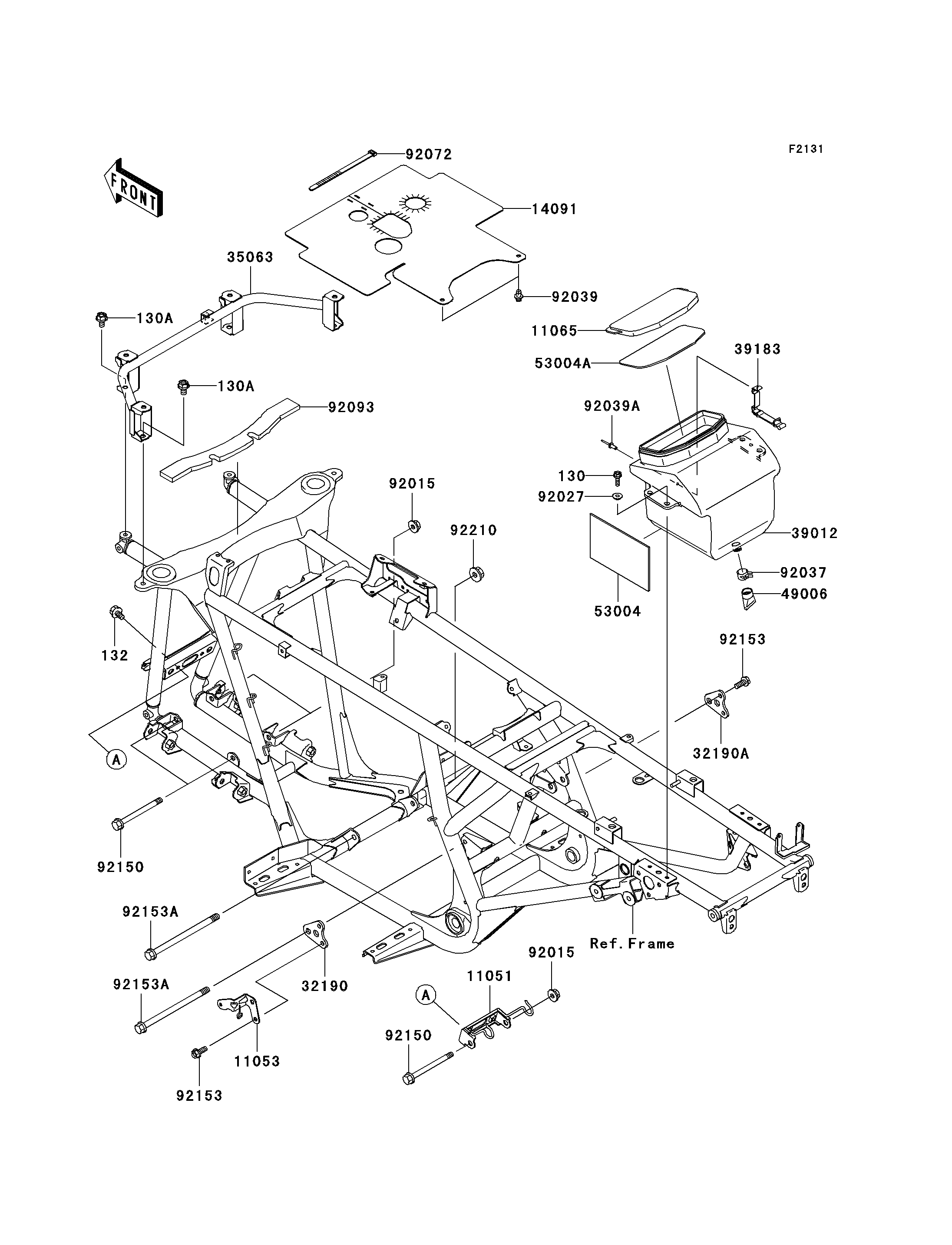

2006 Brute Force 650 4x4 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
132
11051
11053
11065
14091
32190
32190A
35063
39012
39183
49006
53004
53004A
92015
92015
92027
92037
92039
92039A
92072
92093
92150
92150
92153
92153
92153A
92153A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20 130 130BA0620 4
BOLT-FLANGED,8X14 130A 130CB0814 4
BOLT-FLANGED-SMALL,8X14 132 132BB0814 2
BRACKET,FRONT DIFF 11051 11051-1929 1
BRACKET,RESERVOIR TANK 11053 11053-0481 1
CAP,STORAGE CASE 11065 11065-1154 1
COVER,FR,UPP 14091 14091-0416 1
BRACKET-ENGINE,RR,UPP,LH 32190 32190-0045 1
BRACKET-ENGINE,RR,UPP,RH 32190A 32190-0046 1
STAY,CARRIER 35063 35063-0201 1
CASE-STORAGE 39012 39012-1064 1
BAND-ASSY,TOOL BAG 39183 39183-1065 1
BOOT 49006 49006-1292 1
MAT,STORAGE CASE 53004 53004-1139 1
MAT,STORAGE CASE CAP 53004A 53004-1147 1
NUT,LOCK,FLANGED,10MM 92015 92015-1717 3
COLLAR 92027 92027-1936 4
CLAMP,HOSE CLIP 92037 92037-1460 1
RIVET 92039 92039-1229 2
RIVET,4.8MM 92039A 92039-3719 2
BAND,L=123 92072 92072-030 2
SEAL 92093 92093-1555 1
BOLT,FLANGED,10X120 92150 92150-1642 3
BOLT,FLANGED,8X20 92153 92153-0948 4
BOLT,FLANGED,12X190 92153A 92153-1272 2
NUT,LOCK,FLANGED,12MM 92210 92210-1150 1
