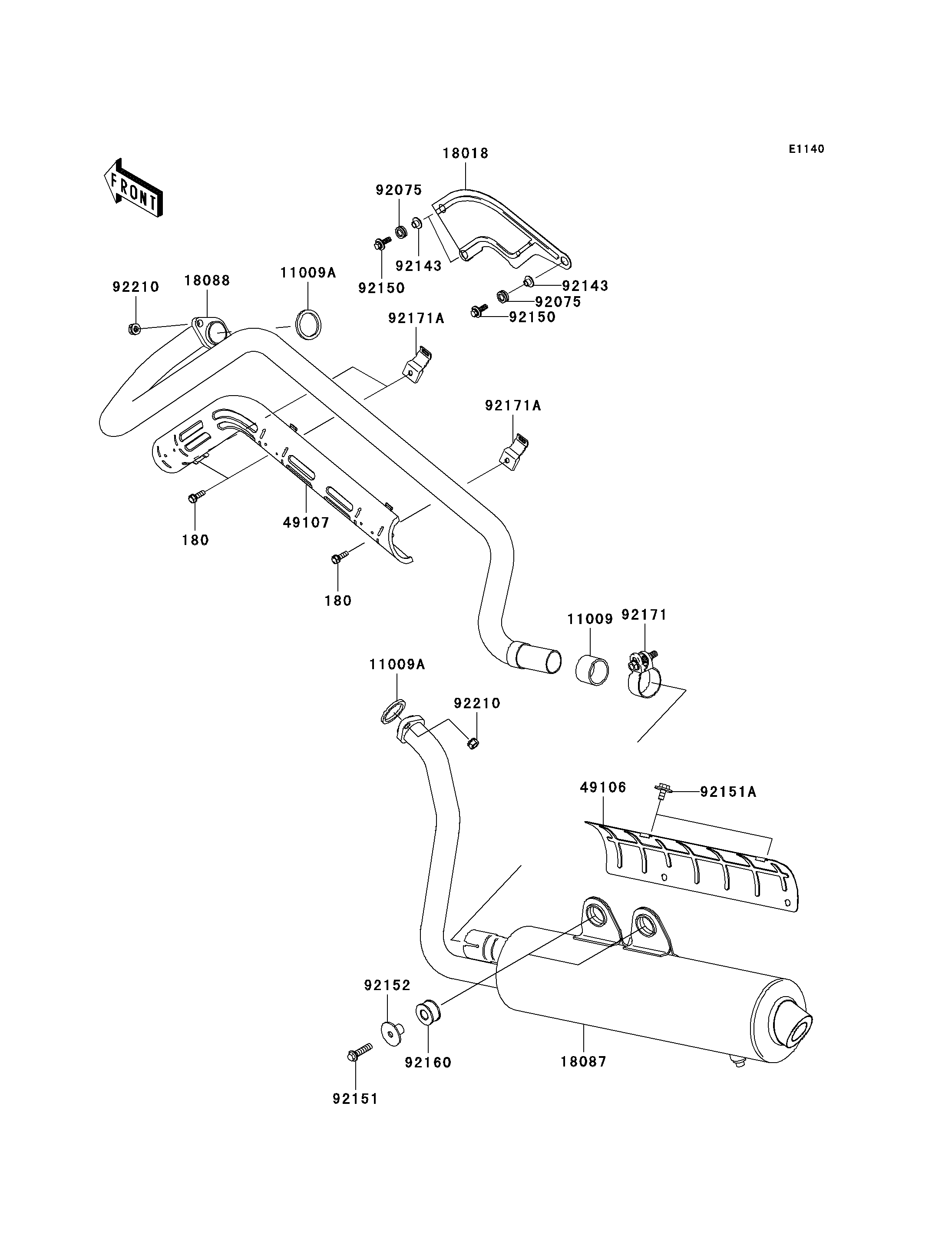

2006 Brute Force 650 4x4 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
180
180
11009
11009A
11009A
18018
18087
18088
49106
49107
92075
92075
92143
92143
92150
92150
92151
92151A
92152
92160
92171
92171A
92171A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS,6X20 180 180BD0620 3
GASKET,MUFFLER CONNECTING 11009 11009-1865 1
GASKET,EXHAUST HOLDER 11009A 11009-1894 2
PLATE-HEAT GUARD 18018 18018-1134 1
MUFFLER 18087 18087-0077 1
PIPE-EXHAUST 18088 18088-1140 1
COVER-MUFFLER 49106 49106-1291 1
COVER-EXHAUST PIPE 49107 49107-1210 1
DAMPER 92075 92075-1947 3
COLLAR 92143 92143-1057 3
BOLT,FLANGED,6X20 92150 92150-1633 3
BOLT,8X32 92151 92151-1446 2
BOLT,UPSET-WP,6X12 92151A 92151-1944 4
COLLAR,MUFFLER 92152 92152-1152 2
DAMPER,MUFFLER 92160 92160-1990 2
CLAMP 92171 92171-1330 1
CLAMP 92171A 92171-1357 3
NUT,8MM 92210 92210-1242 4
