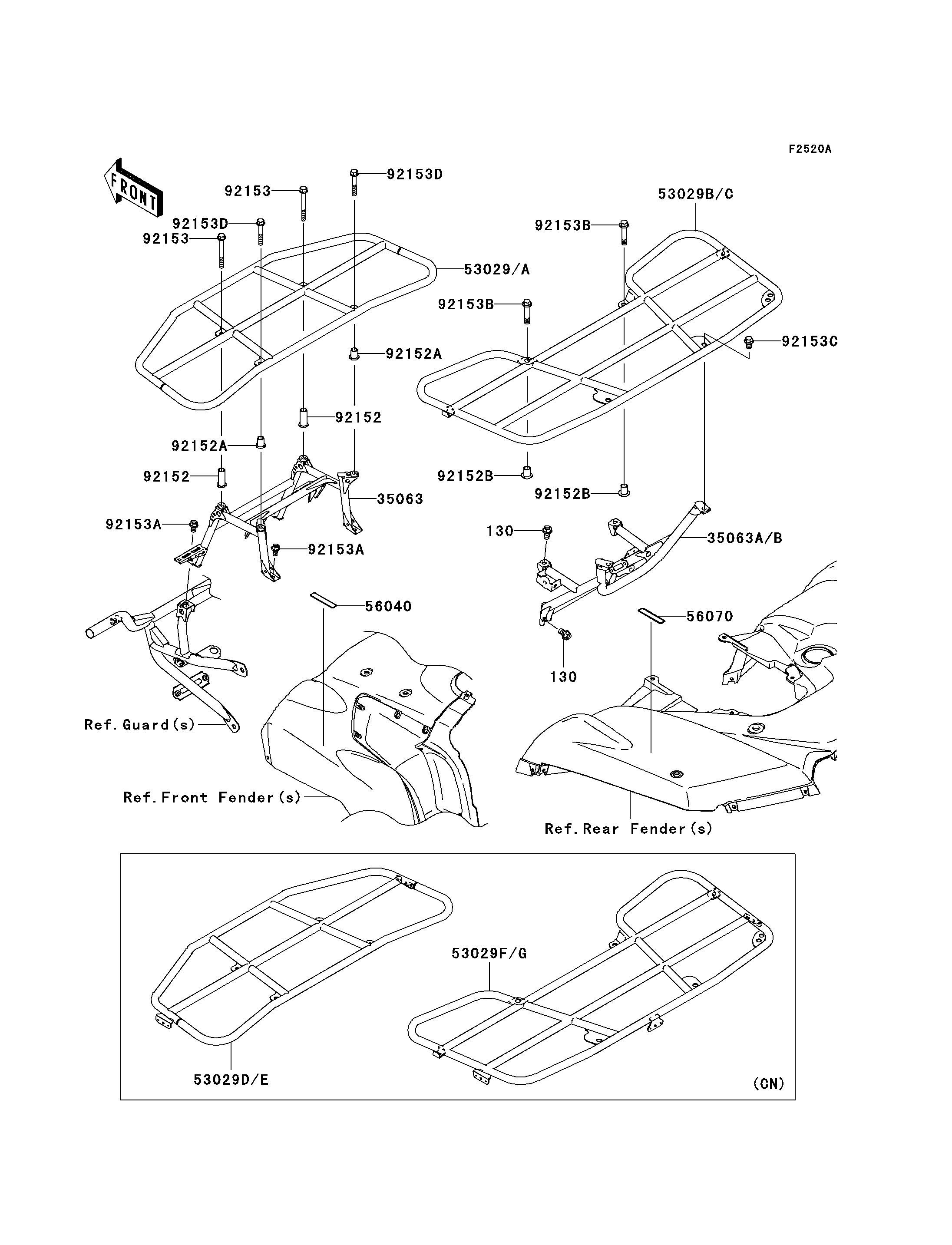

2010 Brute Force® 750 4x4i - Carrier(s)(FAF/FBF)

DOWNLOAD PDF
SELECT A NEW PART
130
130
35063
35063B
56040
56070
92152
92152
92152A
92152A
92152B
92152B
92153
92153
92153A
92153A
92153B
92153B
92153C
92153D
92153D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X16 130 130CB1016 4
STAY,FR 35063 35063-0164 1
STAY,REAR CARRIER,T.BLACK 35063B 35063-0501-388 1
LABEL-WARNING,MAXIMUM LOAD 56040 56040-1321 1
LABEL-WARNING,MAXIMUM LOAD 56070 56070-0041 1
COLLAR 92152 92152-0254 2
COLLAR 92152A 92152-0255 2
COLLAR 92152B 92152-0257 2
BOLT,FLANGED,8X70 92153 92153-0748 2
BOLT,FLANGED,8X14 92153A 92153-0931 4
BOLT,FLANGED,10X44 92153B 92153-1374 2
BOLT,FLANGED,10X14 92153C 92153-1375 2
BOLT,FLANGED,8X50 92153D 92153-1755 2
CARRIER,FR,T.M.GRAY 53029A 53029-0054-16Y 1 US
CARRIER,RR,T.M.GRAY 53029C 53029-0055-16Y 1 US
CARRIER,FR,T.M.GRAY 53029E 53029-0083-16Y 1 CN
CARRIER,RR,T.M.GRAY 53029G 53029-0084-16Y 1 CN
