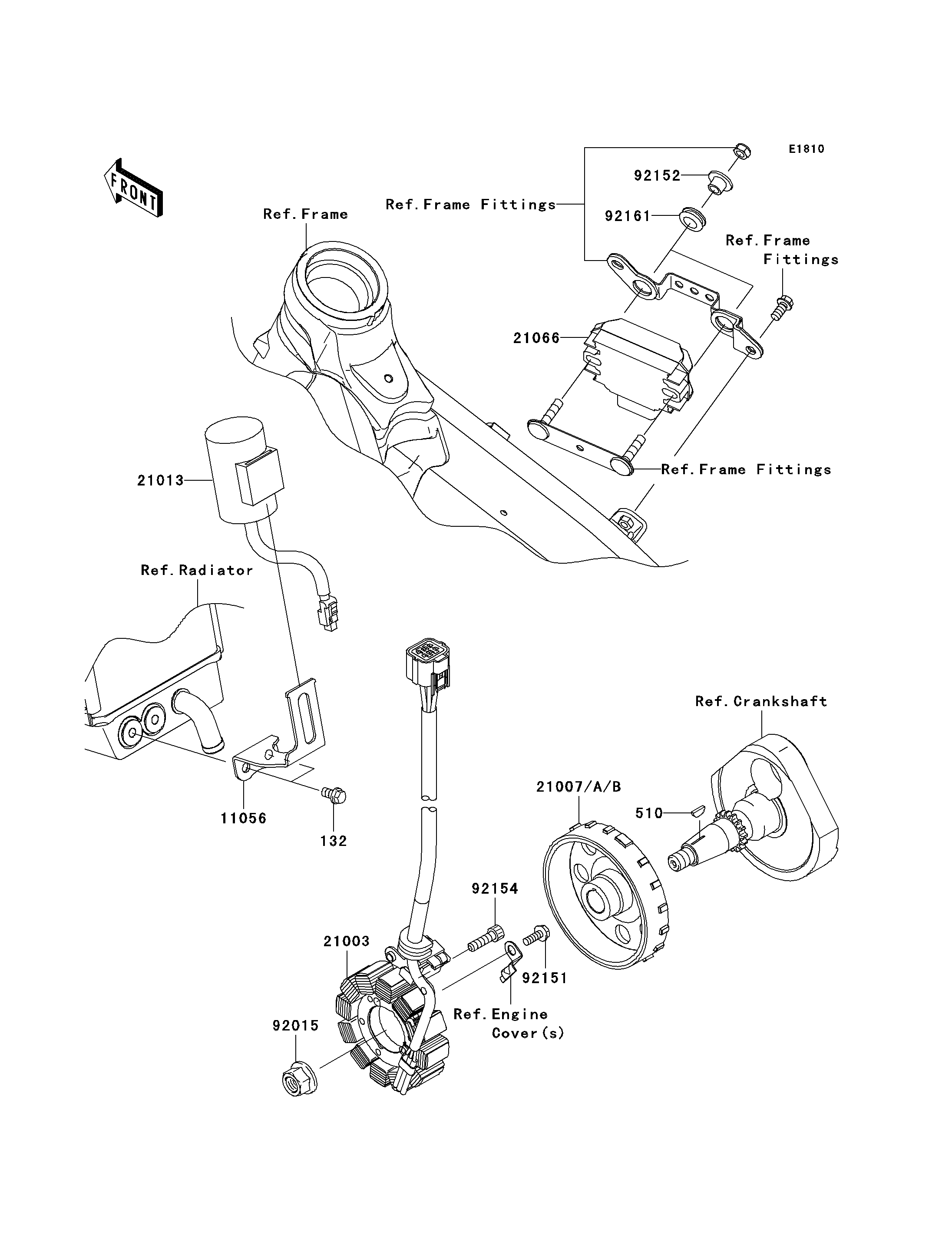

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 2 | ||
| KEY-WOODRUFF | 510 | 510A3200 | 1 | ||
| BRACKET,CONDENSER | 11056 | 11056-1513 | 1 | ||
| STATOR | 21003 | 21003-0102 | 1 | ||
| ROTOR,I=8.5 | 21007 | 21007-0164 | 1 | (OPTION) | |
| ROTOR,I=8.0 | 21007A | 21007-0554 | 1 | ||
| ROTOR,I=7.5 | 21007B | 21007-0570 | 1 | (OPTION) | |
| CONDENSER | 21013 | 21013-0001 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0042 | 1 | ||
| NUT,12MM | 92015 | 92015-1426 | 1 | ||
| BOLT,5X14 | 92151 | 92151-1764 | 2 | ||
| COLLAR | 92152 | 92152-1449 | 2 | ||
| BOLT,SOCKET,6X22 | 92154 | 92154-0031 | 3 | ||
| DAMPER | 92161 | 92161-0266 | 2 |
