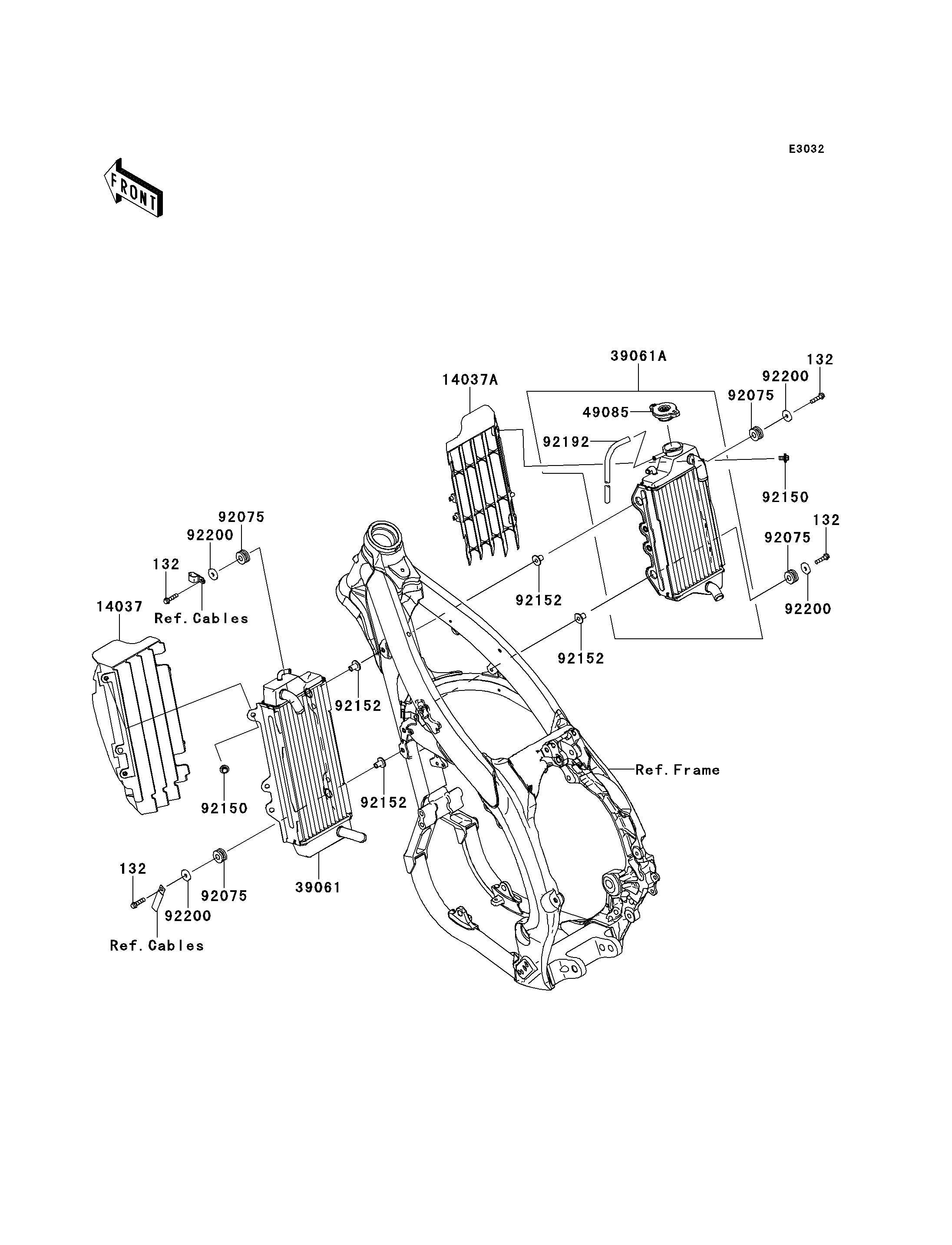

2012 KX™450F - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132
14037
14037A
39061
39061A
49085
92075
92075
92075
92075
92150
92150
92152
92152
92152
92152
92192
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BB0625 4
SCREEN,LH,EBONY 14037 14037-0117-6C 1
SCREEN,RH,EBONY 14037A 14037-0118-6C 1
RADIATOR-ASSY,LH 39061 39061-0218 1
RADIATOR-ASSY,RH 39061A 39061-0571 1
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
DAMPER 92075 92075-209 4
BOLT,6X12 92150 92150-1435 2
COLLAR 92152 92152-0666 4
TUBE,6X9X640 92192 92192-0167 1
WASHER,6.5X22X2.3 92200 92200-0271 4
