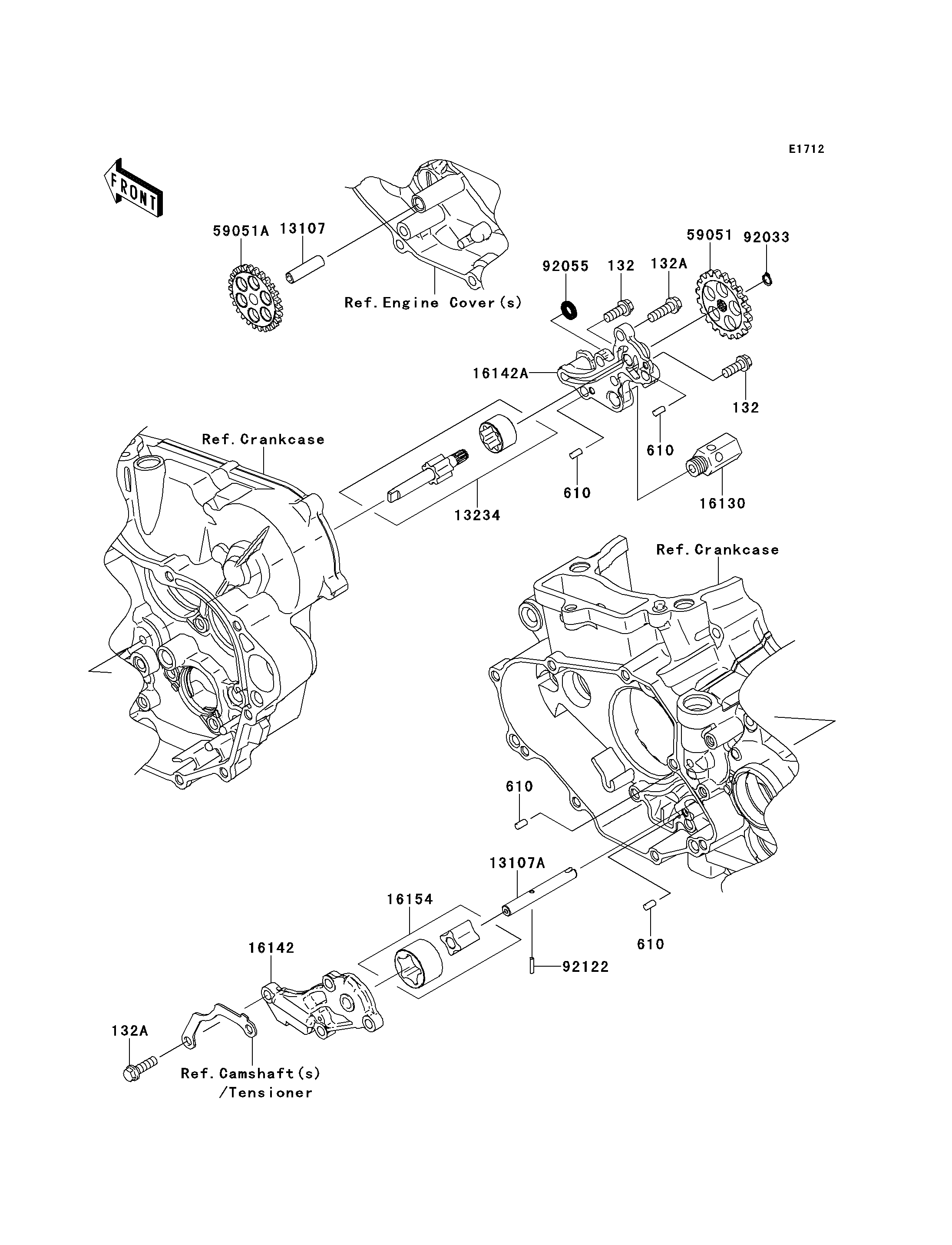

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132
132A
132A
610
610
610
610
13107
13107A
13234
16130
16142
16142A
16154
59051
59051A
92033
92055
92122
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 2 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BA0620 | 7 | ||
| ROLLER,4X8 | 610 | 610A0408 | 4 | ||
| SHAFT | 13107 | 13107-0056 | 1 | ||
| SHAFT,OIL PUMP,SCAVENGE | 13107A | 13107-0134 | 1 | ||
| SHAFT-COMP,FEED | 13234 | 13234-0036 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1058 | 1 | ||
| COVER-PUMP,OIL,LH | 16142 | 16142-0042 | 1 | ||
| COVER-PUMP,OIL,RH | 16142A | 16142-0062 | 1 | ||
| ROTOR-PUMP,SCAVENGE | 16154 | 16154-0069 | 1 | ||
| GEAR-SPUR,O/P DRIVEN,28T | 59051 | 59051-0044 | 1 | ||
| GEAR-SPUR,O/P IDLER,26T | 59051A | 59051-0045 | 1 | ||
| RING-SNAP | 92033 | 92033-0019 | 1 | ||
| RING-O,OD=13 | 92055 | 92055-074 | 1 | ||
| ROLLER,2.5X11.8 | 92122 | 92122-0021 | 1 |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| ROLLER,4X8 | |
| REF # | 610 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,OIL PUMP,SCAVENGE | |
| REF # | 13107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-COMP,FEED | |
| REF # | 13234 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE-ASSY-RELIEF | |
| REF # | 16130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,OIL,LH | |
| REF # | 16142 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-PUMP,OIL,RH | |
| REF # | 16142A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR-PUMP,SCAVENGE | |
| REF # | 16154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,O/P DRIVEN,28T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,O/P IDLER,26T | |
| REF # | 59051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,OD=13 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROLLER,2.5X11.8 | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
