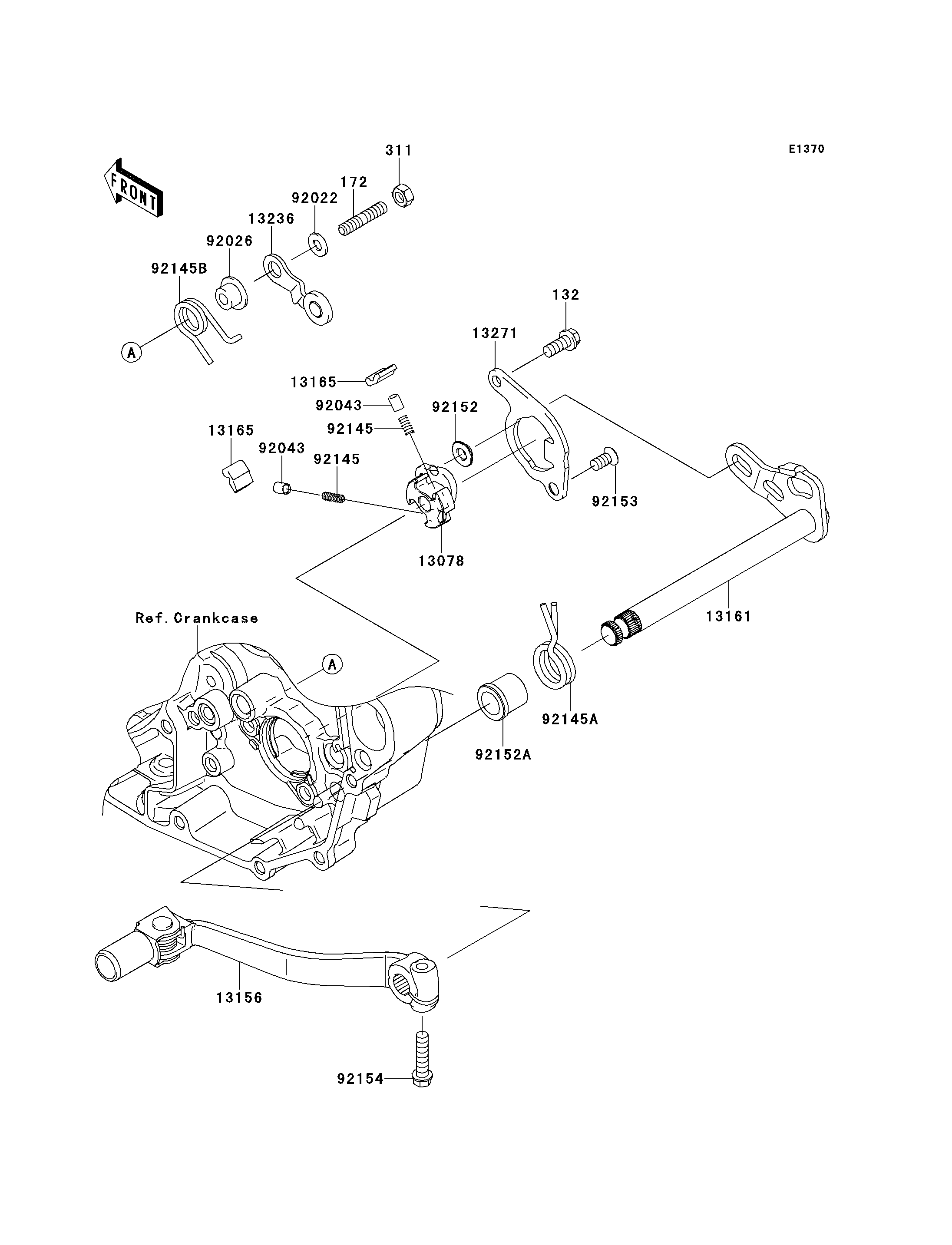

2012 KX™450F - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
172
311
13078
13156
13161
13165
13165
13236
13271
92022
92026
92043
92043
92145
92145
92145A
92145B
92152
92152A
92153
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X14 132 132BA0614 1
BOLT-STUD,6X18 172 172BA0618 1
NUT-HEX 311 311BA0600 1
RATCHET 13078 13078-0012 1
LEVER-CHANGE 13156 13156-0156 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0081 1
PAWL 13165 13165-0018 2
LEVER-COMP,POSITION 13236 13236-0190 1
PLATE,PAWL GUIDE 13271 13271-0893 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-0156 1
PIN,PLUNGER 92043 92043-1676 2
SPRING 92145 92145-0453 2
SPRING,RETURN 92145A 92145-0496 1
SPRING 92145B 92145-0680 1
COLLAR 92152 92152-1414 1
COLLAR,RETURN SPRING 92152A 92152-1419 1
BOLT,TORX,6X8.7 92153 92153-1669 1
BOLT,FLANGED,6X25 92154 92154-0520 1
