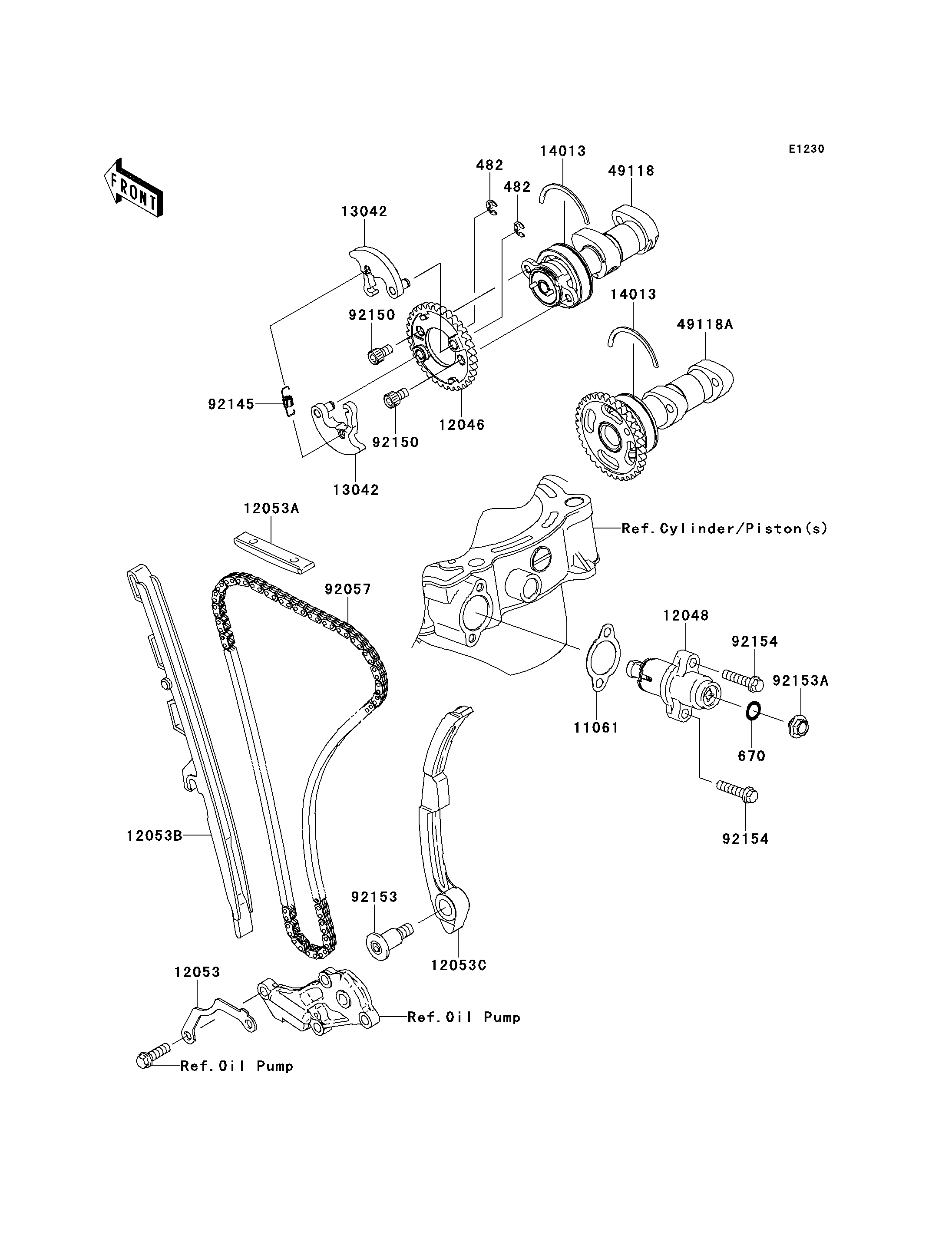

2012 KX™450F - Camshaft(s)/Tensioner

DOWNLOAD PDF
SELECT A NEW PART
482
482
670
11061
12046
12048
12053
12053A
12053B
12053C
13042
13042
14013
14013
49118
49118A
92057
92145
92150
92150
92153
92153A
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E 482 482J5000 2
O RING 670 670D2010 1
GASKET 11061 11061-0260 1
SPROCKET,34T 12046 12046-0071 1
TENSIONER-ASSY 12048 12048-0021 1
GUIDE-CHAIN,CAM CHAIN STOPPER 12053 12053-0031 1
GUIDE-CHAIN,UPP 12053A 12053-0051 1
GUIDE-CHAIN,FR 12053B 12053-0135 1
GUIDE-CHAIN,RR 12053C 12053-0136 1
WEIGHT 13042 13042-0005 2
RING-POSITION 14013 14013-0001 2
CAMSHAFT-COMP,EXHAUST 49118 49118-0133 1
CAMSHAFT-COMP,INTAKE 49118A 49118-0165 1
CHAIN,CAM,98XRH2010-122M 92057 92057-0180 1
SPRING 92145 92145-0390 1
BOLT,SOCKET,6X10 92150 92150-1650 2
BOLT,8X29.5 92153 92153-0717 1
BOLT,6X6 92153A 92153-1380 1
BOLT,FLANGED,6X25 92154 92154-0520 2
